Toyota Majesta

2009-03 → 2013-07 · chassis URS206,UZS207 · catalogue 335110 · Japan

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

12 part groups · 2 illustrations

Illustrations

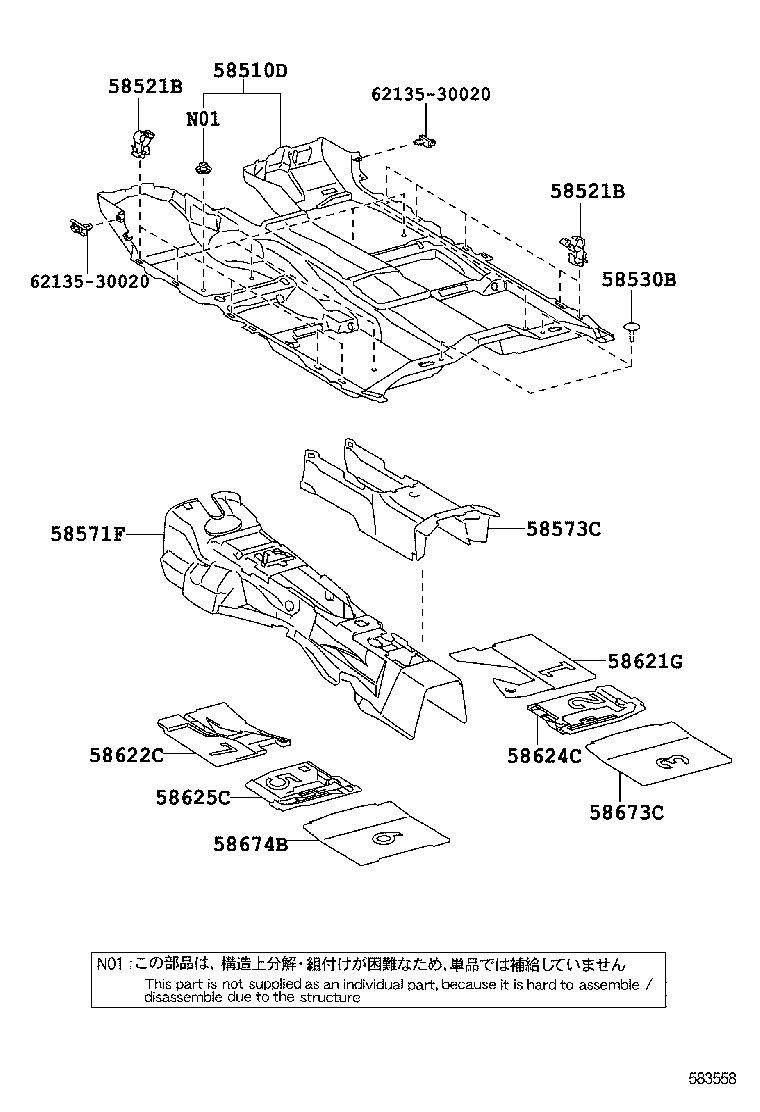

Figure 583557 583557 2009-03 → — Figure 583558 583558 2009-03 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58571F Pad, Front Floor, Front
58573C Pad, Front Floor Center
58579B Pad, Rear Floor
58621G Pad, Front Floor Silencer, RH
58622C Pad, Front Floor Silencer, LH
58624C Pad, Center Floor Silencer, RH
58625C Pad, Center Floor Silencer, LH
58673C Pad, Rear Floor Silencer, NO.1
58674B Pad, Rear Floor Silencer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
