Toyota Majesta
2009-03 → 2013-07 · chassis URS206,UZS207 · catalogue 335110 · Japan
Supported model
Data version 2014-01

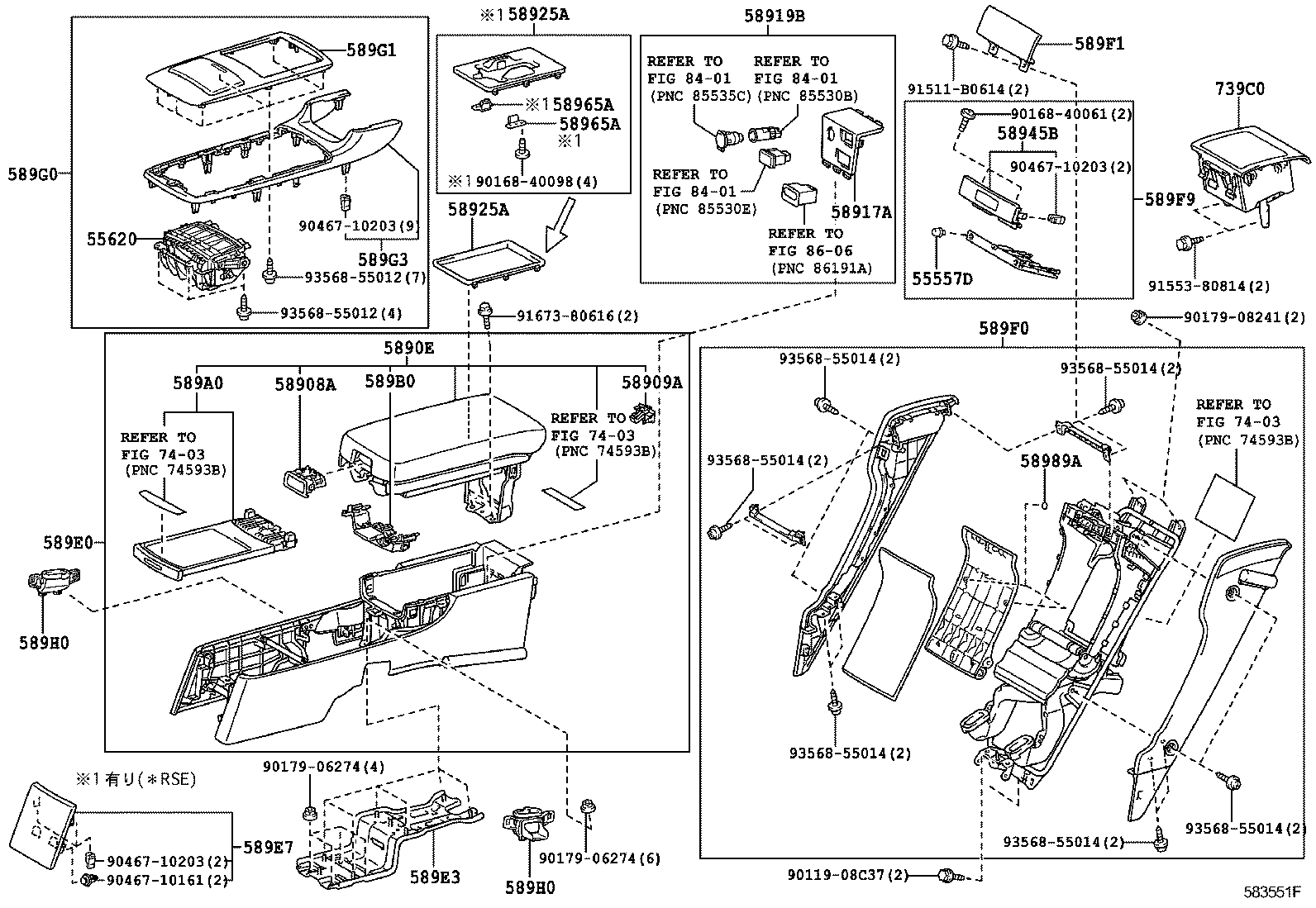

Console Box & Bracket
48 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55393C | Cushion, Instrument Panel, Lower NO.3 |
| 55557D | Cushion, Glove Compartment Door Check |
| 55620 | Holder Assy, Instrument Panel Cup |
| 55620B | Holder, Instrument Panel Cup |
| 58804A | Panel Sub-assy, Console, Upper |
| 58810J | Box Assy, Console |
| 58825A | Pocket, Console Box |
| 58829C | Stopper, Console Box Pocket |
| 58834A | Cover, Console, Lower |
| 58860A | Register Assy, Console Box |
| 58861A | Support, Console Box, NO.1 |
| 58861C | Duct, Console Box, NO.1 |
| 58862C | Support, Console Box, NO.2 |
| 58873 | Cushion, Console Box, NO.3 |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58909A | Stopper Sub-assy, Console Compartment Door |
| 5890E | Armrest Sub-assy, Rear Seat Console |
| 58910D | Clip(FOR CONSOLE BOX) |
| 58913A | Panel, Box, NO.3 |
| 58917A | Cover, Console Box, Rear |
| 58919B | Plate, Console Box |
| 58920A | Armrest Assy, Rear Console |
| 58921C | Plate, Box, Upper NO.1 |
| 58922A | Plate, Box, Upper NO.2 |
| 58923A | Panel, Console Rear End |
| 58924A | Panel, Console Rear End, NO.2 |
| 58925A | Pocket, Console Box, Rear |
| 58933 | Garnish, Console Rear End Panel |
| 58944A | Cover, Console, Rear |
| 58945B | Garnish, Console, Rear |
| 58961A | Hinge, Console Compartment Door Male |
| 58965A | Stopper, Console Compartment Door, NO.2 |
| 58989A | Retainer, Console Box |
| 58995A | Bracket, Console Box Mounting, NO.1 |
| 589A0 | Table Assy, Rear Seat Console |
| 589B0 | Lock Assy, Rear Seat Console Table |
| 589E0 | Armrest Assy, Rear Seat Console |
| 589E3 | Base, Rear Seat Console Armrest |
| 589E7 | Panel, Rear Seat Console Armrest, Front |
| 589F0 | Box Assy, Rear Seat Console |
| 589F1 | Panel, Rear Seat Console Box, Lower |
| 589F9 | Cover, Rear Seat Console Box, Lwr |
| 589G0 | Panel Assy, Rear Seat Console |
| 589G1 | Panel, Rear Seat Console |
| 589G3 | Bezel, Rear Seat Console Panel |
| 589H0 | Nozzle Assy, Rear Seat Console |
| 739C0 | Airbag Assy, Rear Seat Console |
| 74133 | Seal, Front Ash Receptacle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
