Toyota Majesta
2009-03 → 2013-07 · chassis URS206,UZS207 · catalogue 335110 · Japan
Supported model
Data version 2014-01

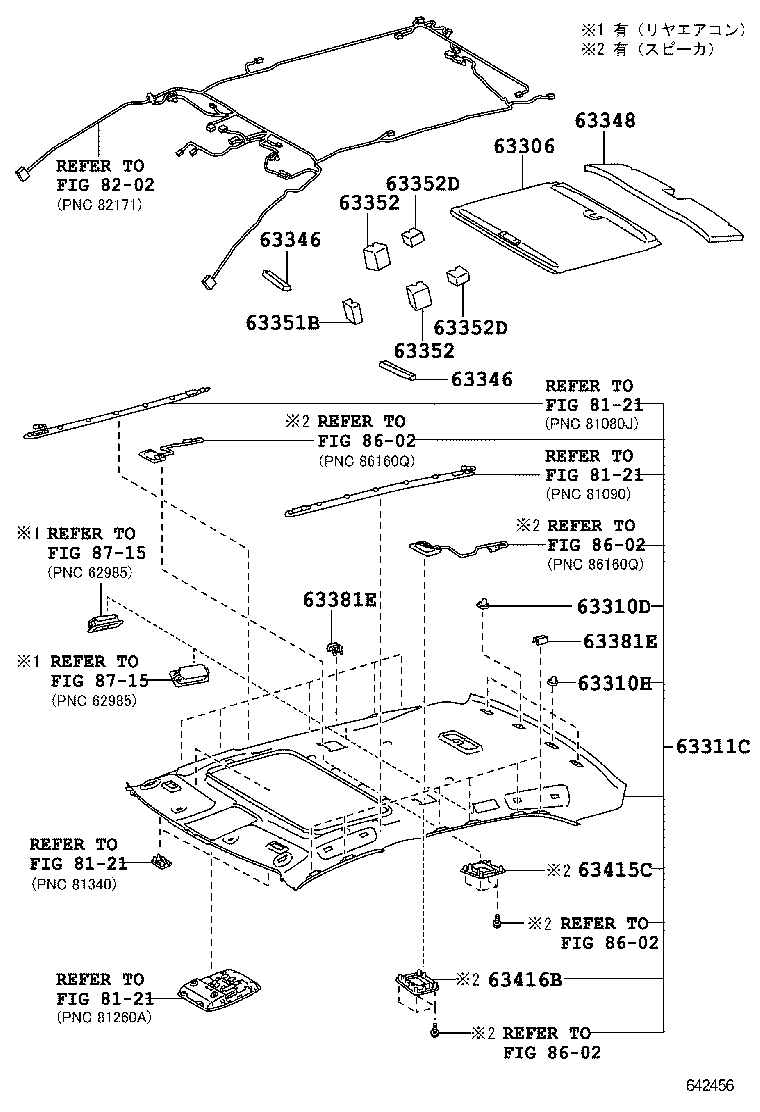

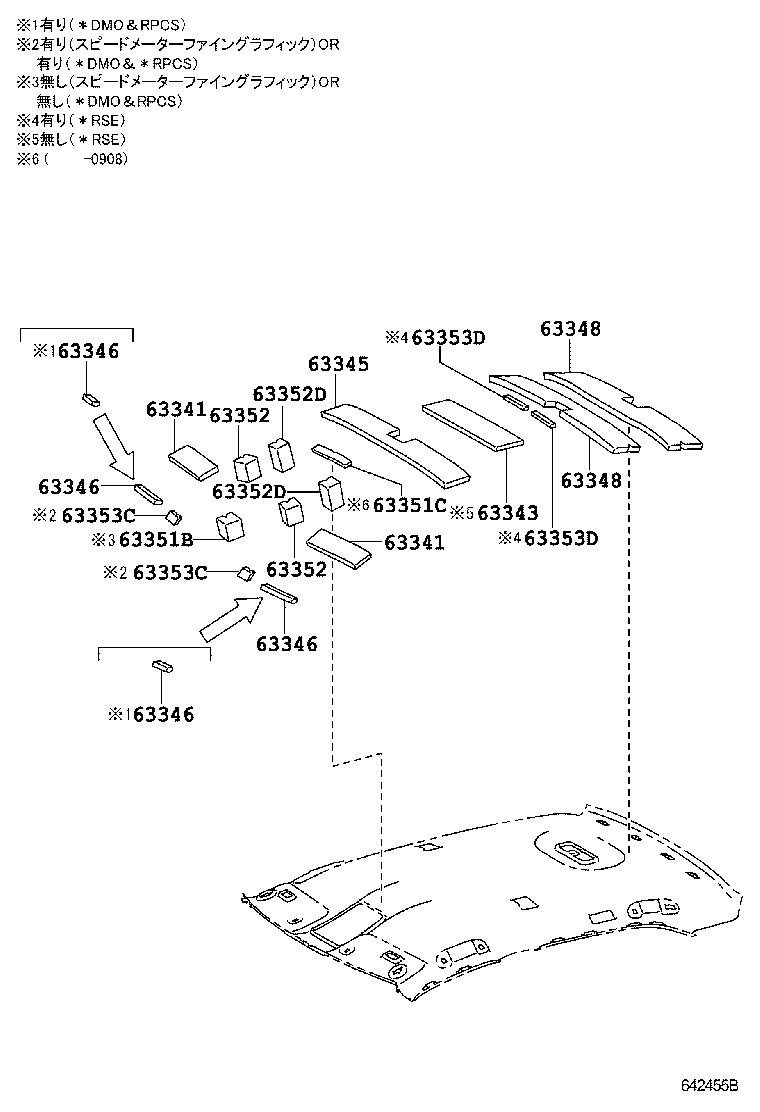

Roof Headlining & Silencer Pad
22 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63311C | Headlining, Roof |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63345 | Pad, Roof Silencer, NO.5 |
| 63346 | Pad, Roof Silencer, NO.6 |
| 63348 | Pad, Roof Silencer, NO.8 |
| 63351B | Pad, Roof Headlining |
| 63351C | Pad, Roof Headlining |
| 63352 | Pad, Roof Headlining, Center |
| 63352D | Pad, Roof Headlining, NO.2 |
| 63353C | Pad, Roof Headlining, Center |
| 63353D | Pad, Roof Headlining, Center |
| 63353E | Pad, Roof Headlining, Center |
| 63381E | Retainer, Roof Headlining Trim, Front |
| 63415C | Grille, Roof Speaker, RH |
| 63416B | Grille, Roof Speaker, LH |
| 66416 | Spacer, Side Rail, Rear NO.3 RH |
| 66426B | Spacer, Side Rail, Rear NO.3 LH |
| 75631L | Garnish, Roof Top, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
