Toyota Majesta
2009-03 → 2013-07 · chassis URS206,UZS207 · catalogue 335110 · Japan
Supported model
Data version 2014-01
Wiring & Clamp
78 part groups · 14 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 16364A | Wire, Cooling Fan |
| 19309 | Harness Sub-assy, Cam Position Sensor |
| 61824K | Plate, Noise Control, NO.1 |

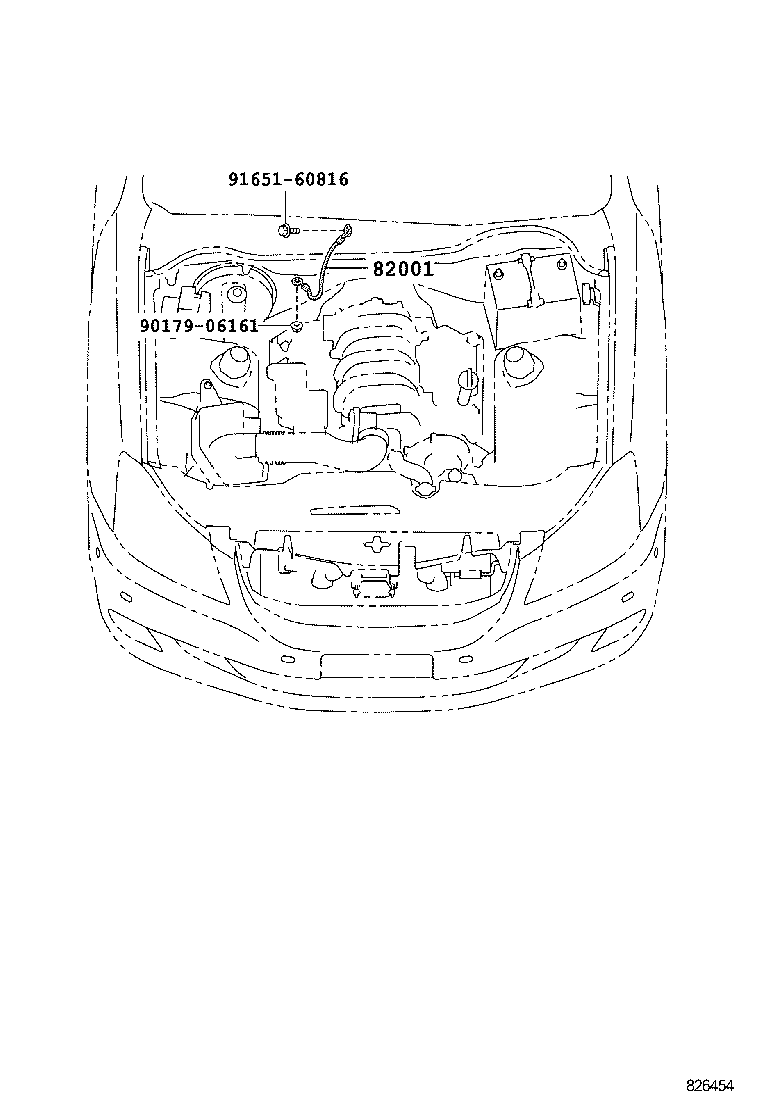

| 82001 | Cable, Bond, NO.1 |

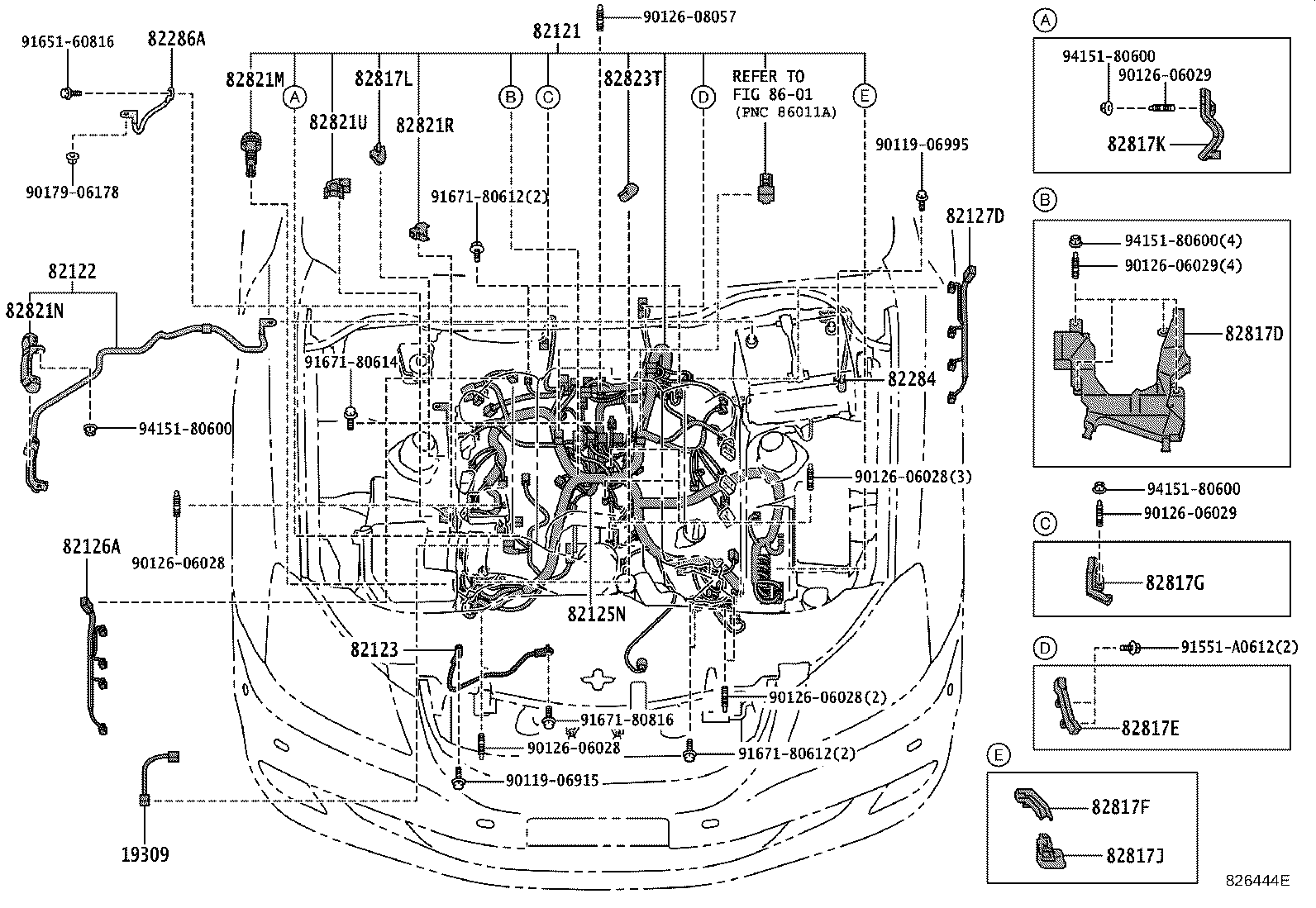

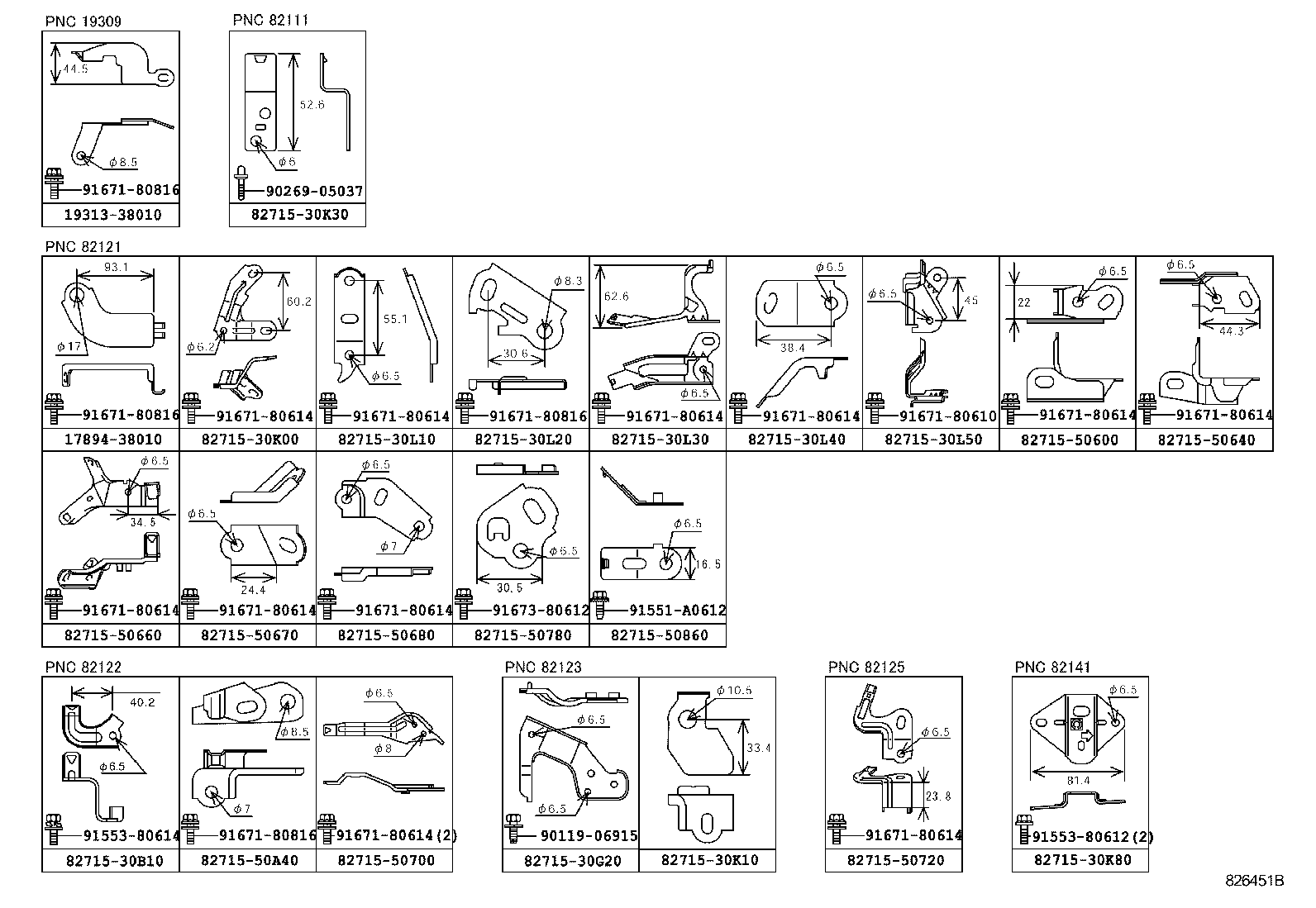

| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |
| 82113 | Wire, Engine Room, NO.3 |
| 82114 | Wire, Engine Room, NO.4 |

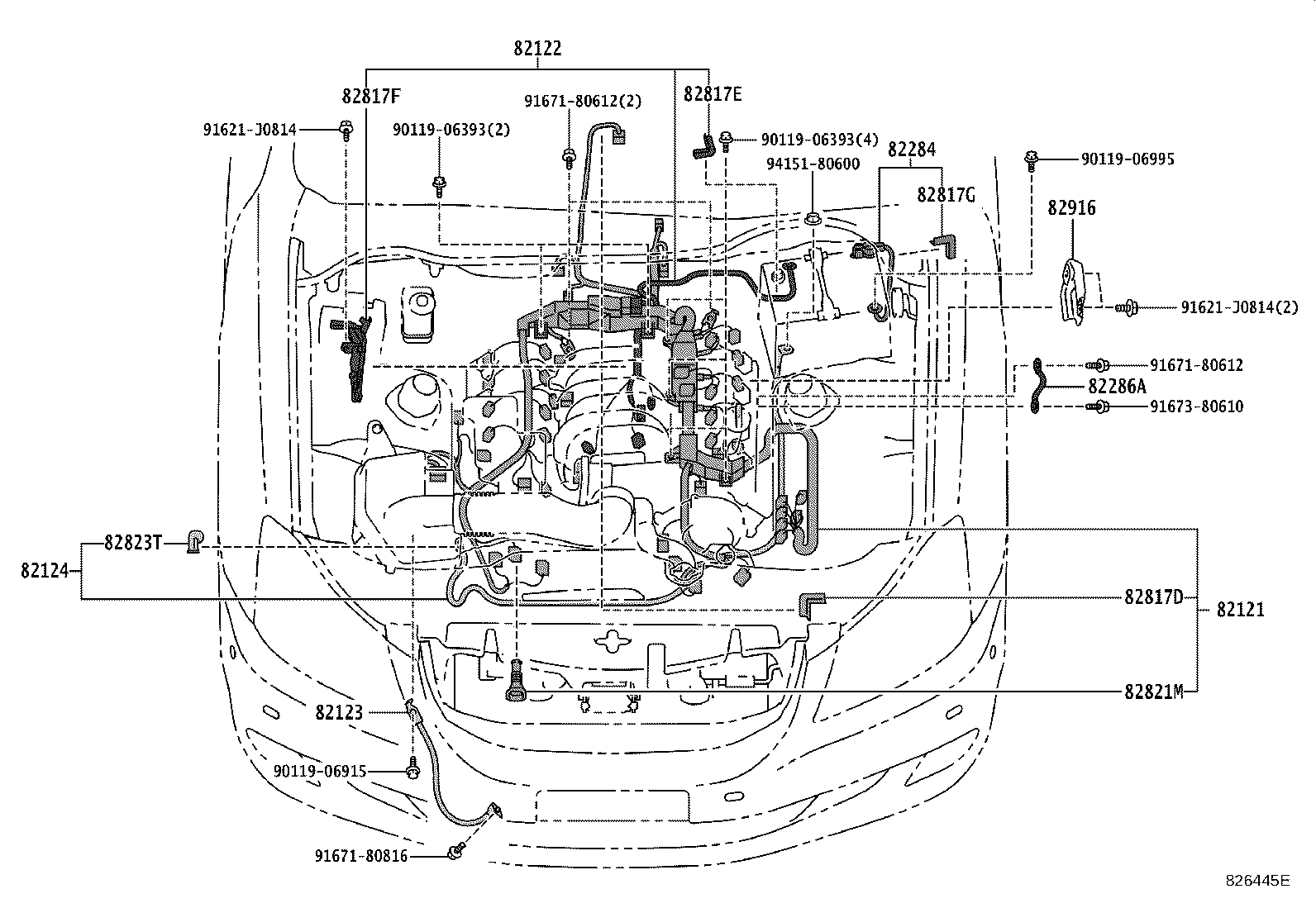

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |
| 82124 | Wire, Engine, NO.4 |

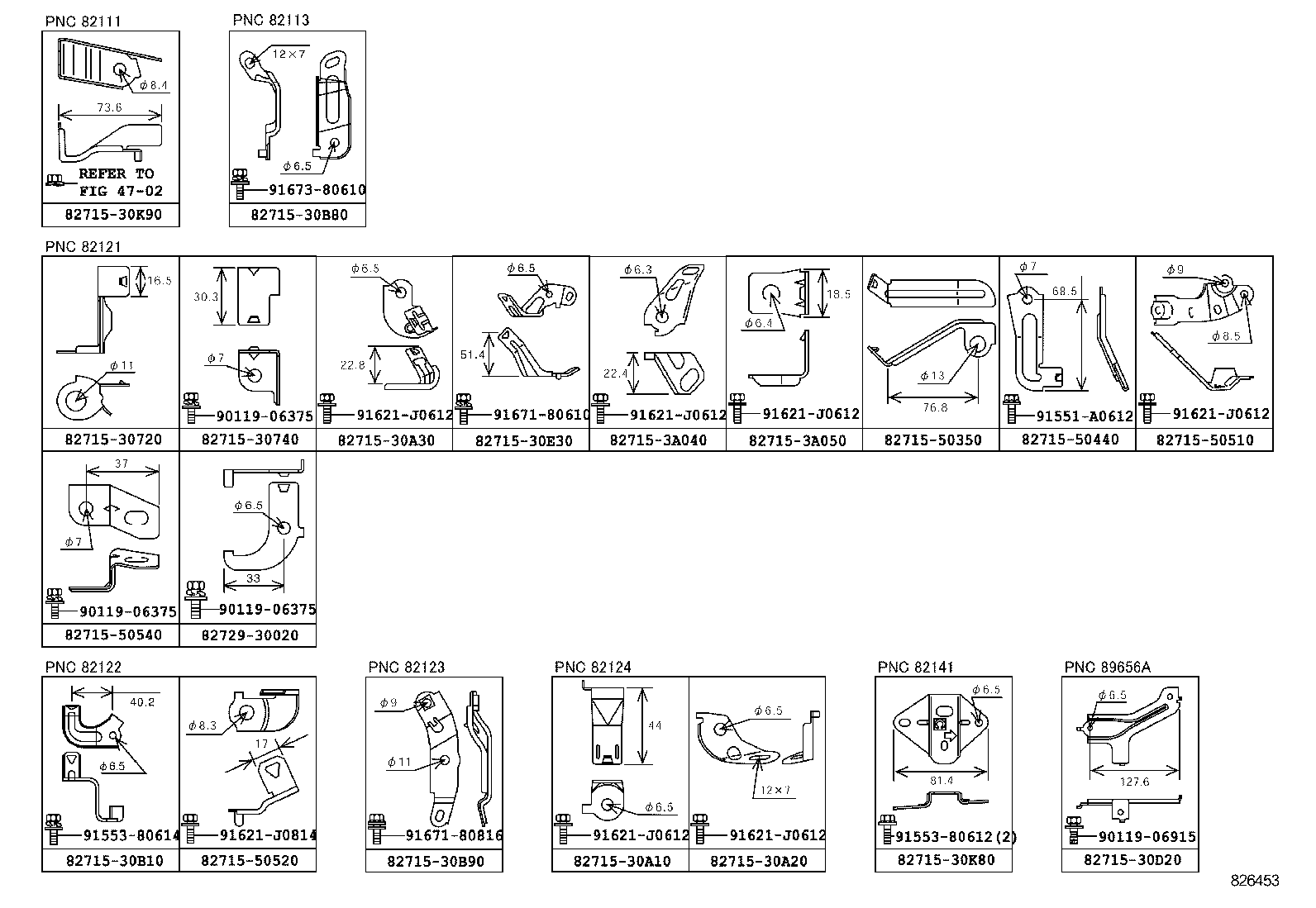

| 82125N | Wire, Engine, NO.5 |
| 82126A | Wire, Engine, NO.6 |
| 82127D | Wire, Engine, NO.7 |

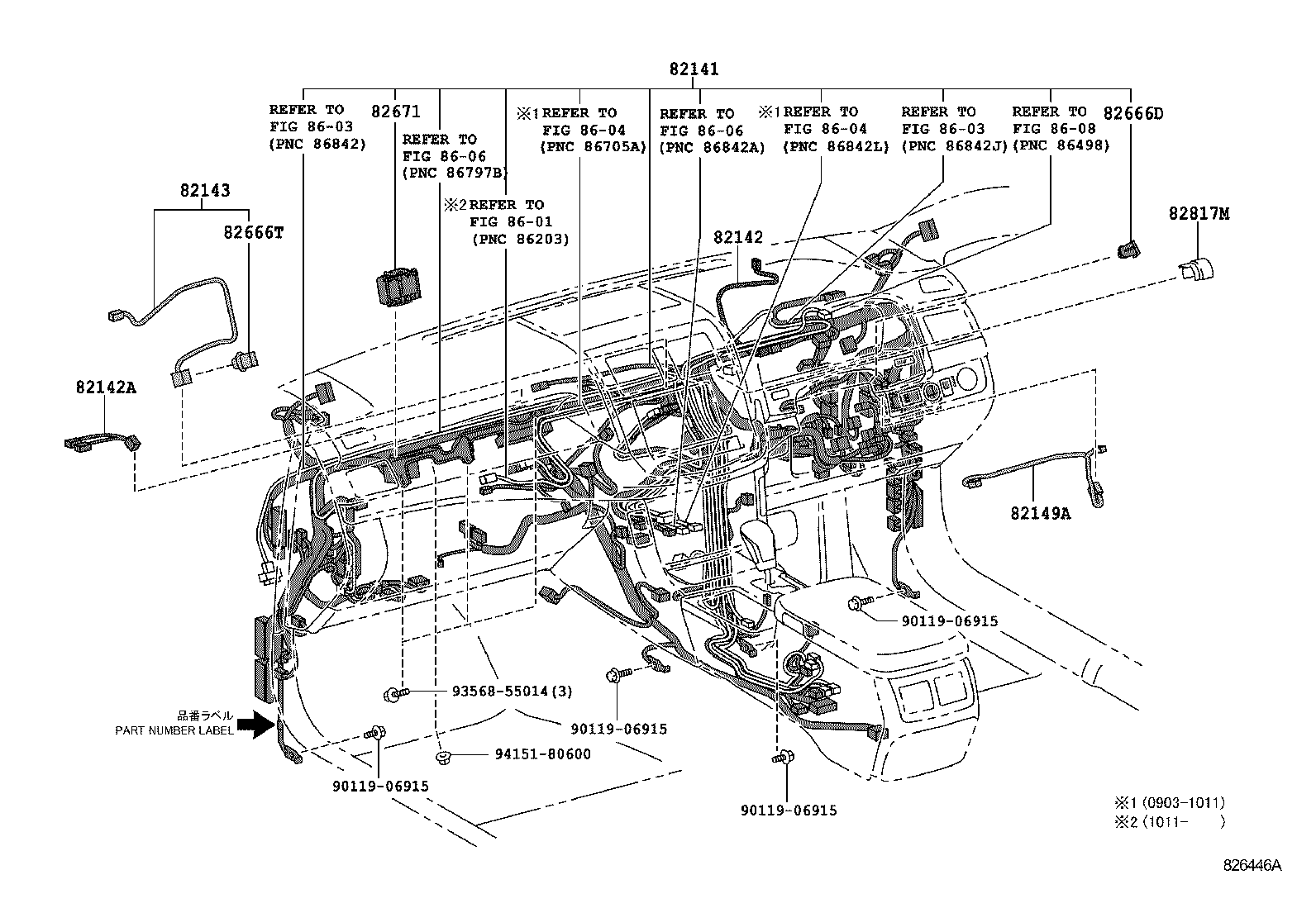

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82143 | Wire, Instrument Panel, NO.3 |
| 82149A | Wire, Instrument Panel, NO.5 |

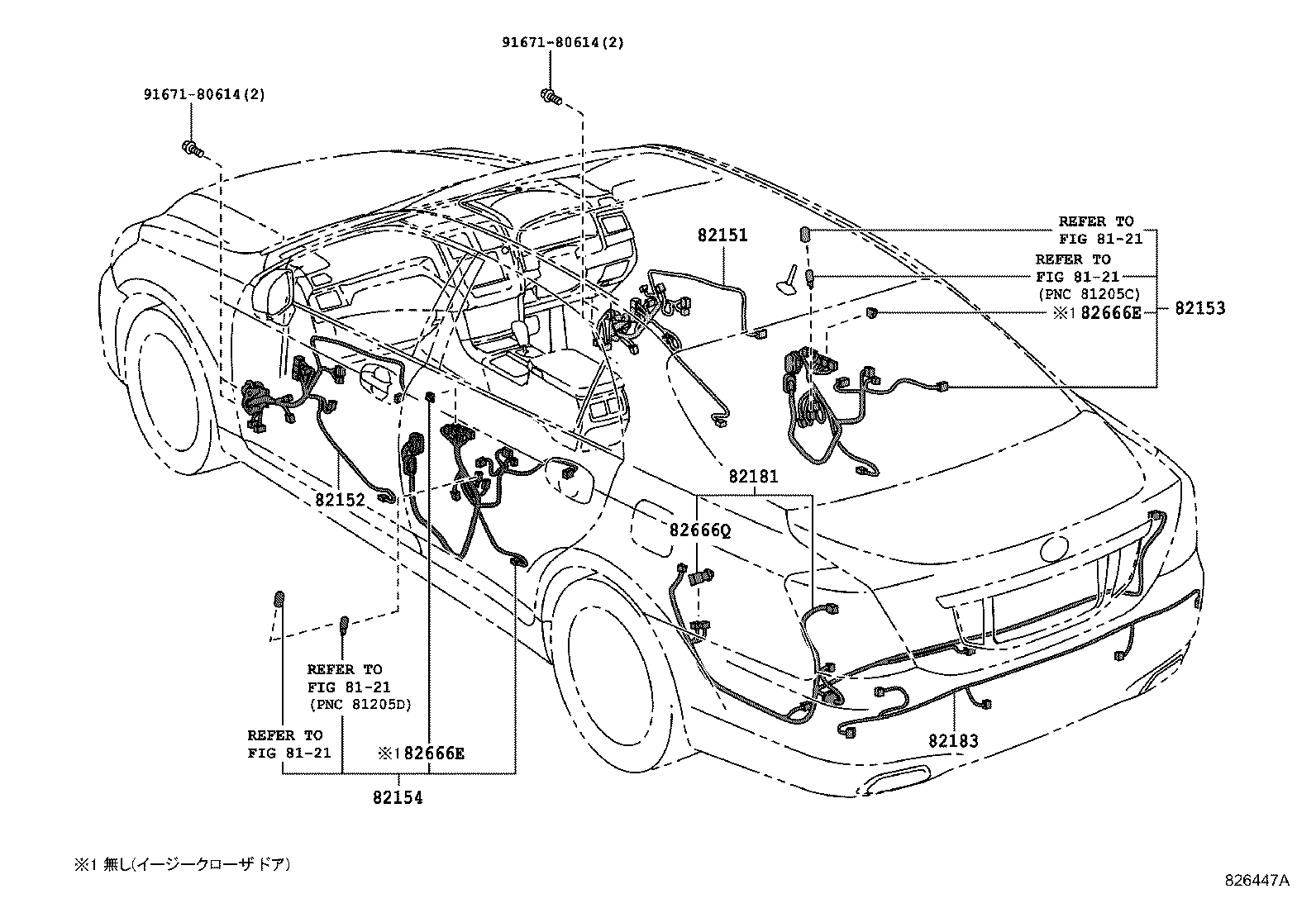

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

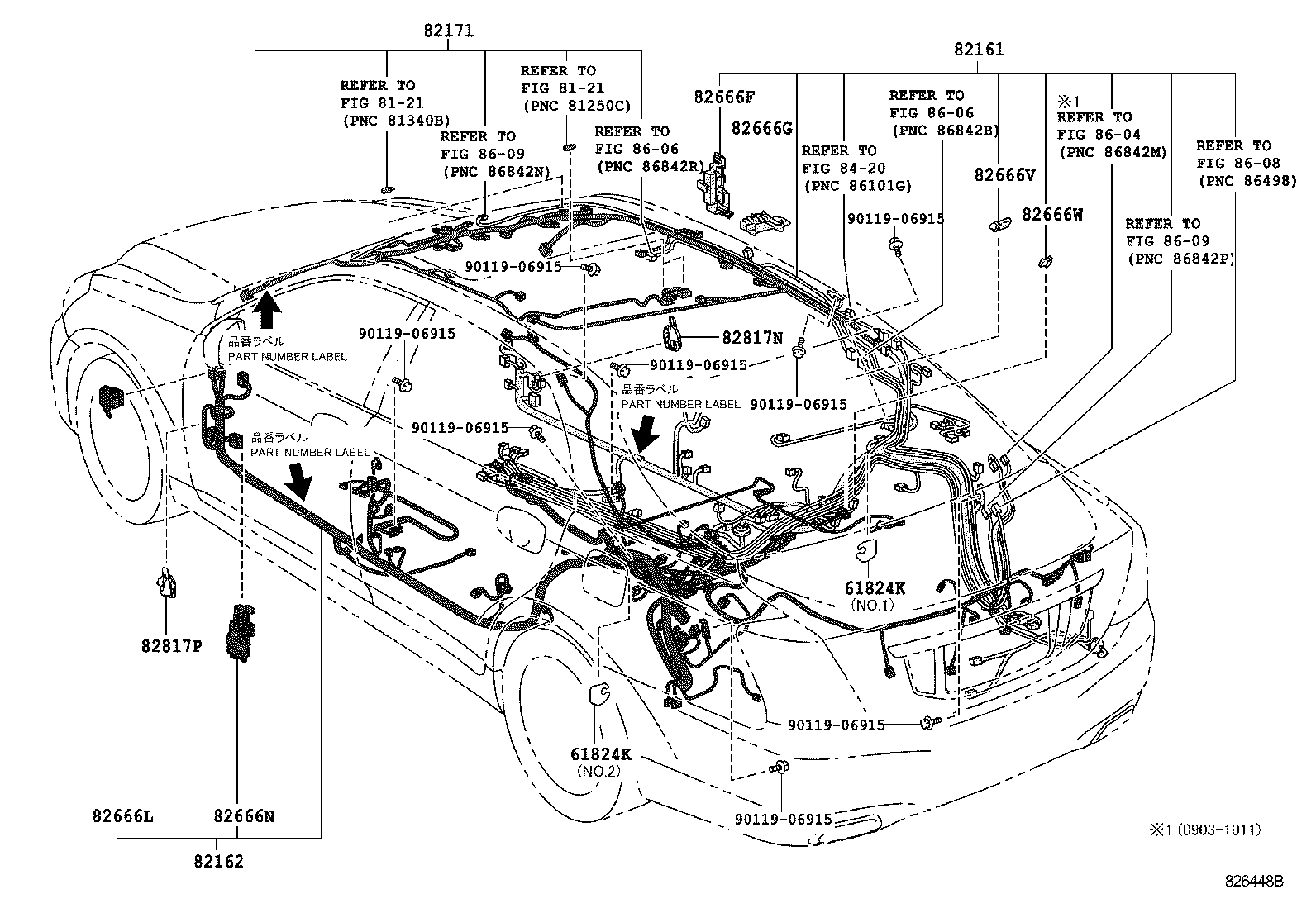

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82171 | Wire, Roof, NO.1 |

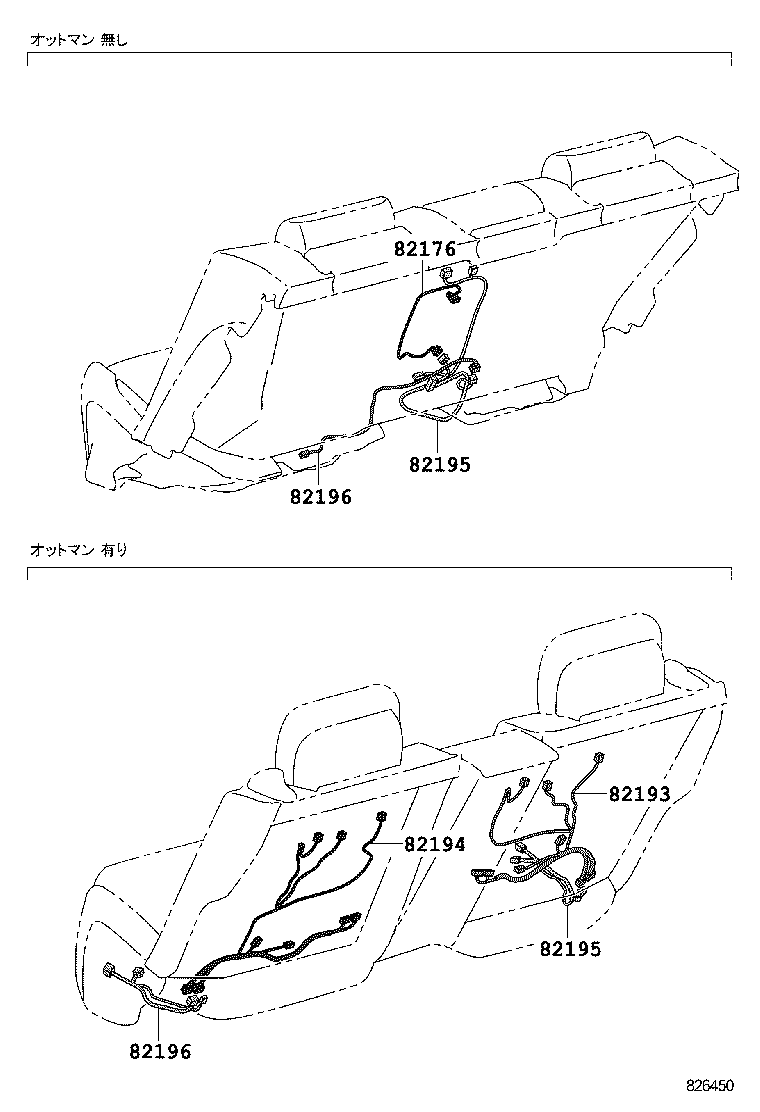

| 82176 | Wire, Rear Console Box |
| 82181 | Wire, Luggage Room, NO.1 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82193 | Wire, Rear Seat, RH |
| 82194 | Wire, Rear Seat, LH |
| 82195 | Wire, Rear Seat, RH NO.2 |
| 82196 | Wire, Rear Seat, LH NO.2 |
| 82284 | Wire, Earth |
| 82286A | Wire, Earth, NO.2 |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82666N | Holder, Connector NO.10 |
| 82666Q | Holder, Connector NO.12 |
| 82666S | Holder, Connector NO.13 |
| 82666T | Holder, Connector NO.14 |
| 82666V | Holder, Connector NO.15 |
| 82666W | Holder, Connector NO.16 |

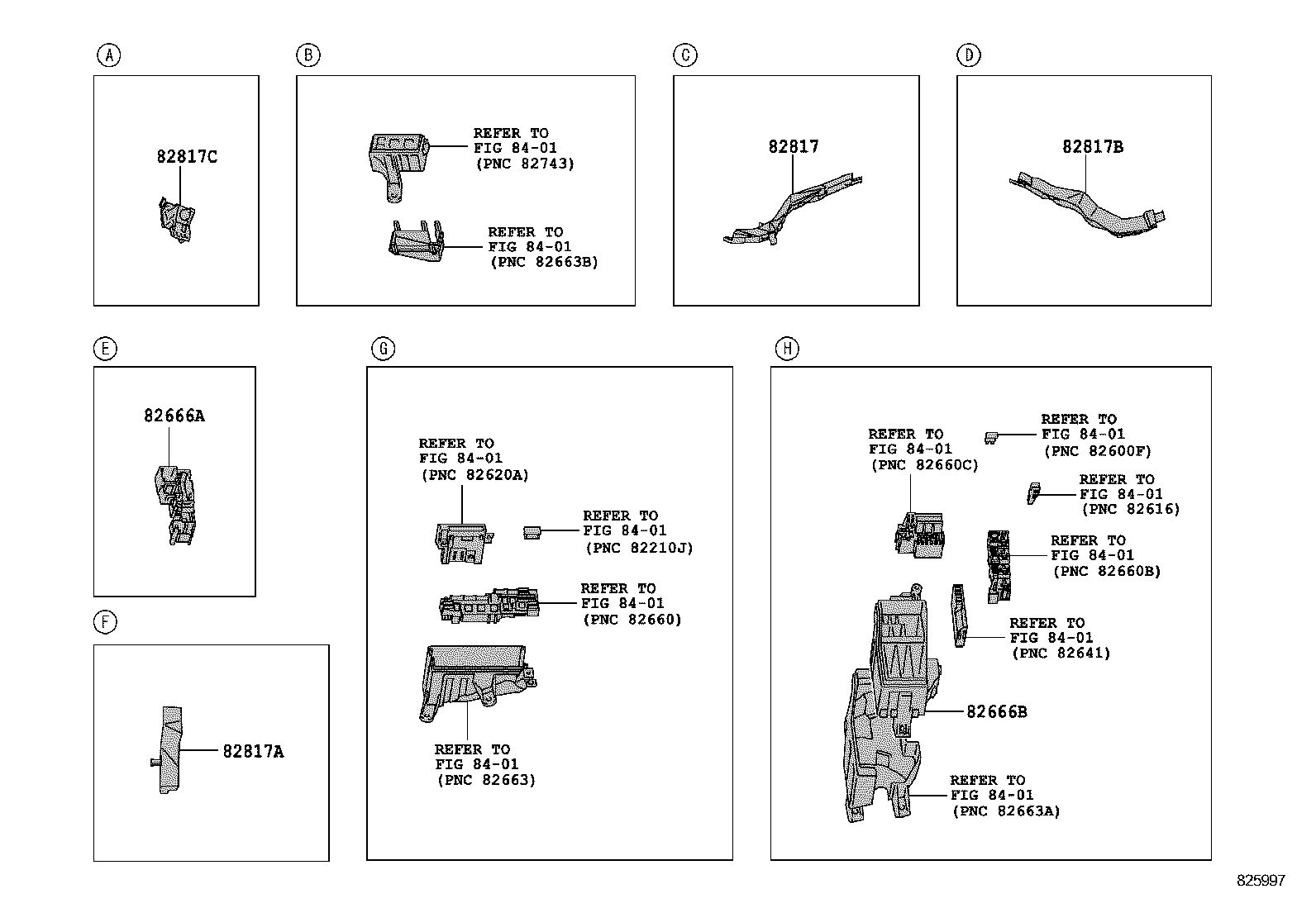

| 82671 | Block, Junction |
| 82671J | Block, Junction, NO.2 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82821A | Cover, Connector |
| 82821E | Cover, Connector |
| 82821H | Cover, Connector |
| 82821M | Cover, Connector |
| 82821N | Cover, Connector |
| 82821R | Cover, Connector |
| 82821U | Cover, Connector |
| 82823T | Cap, Alternator Terminal |

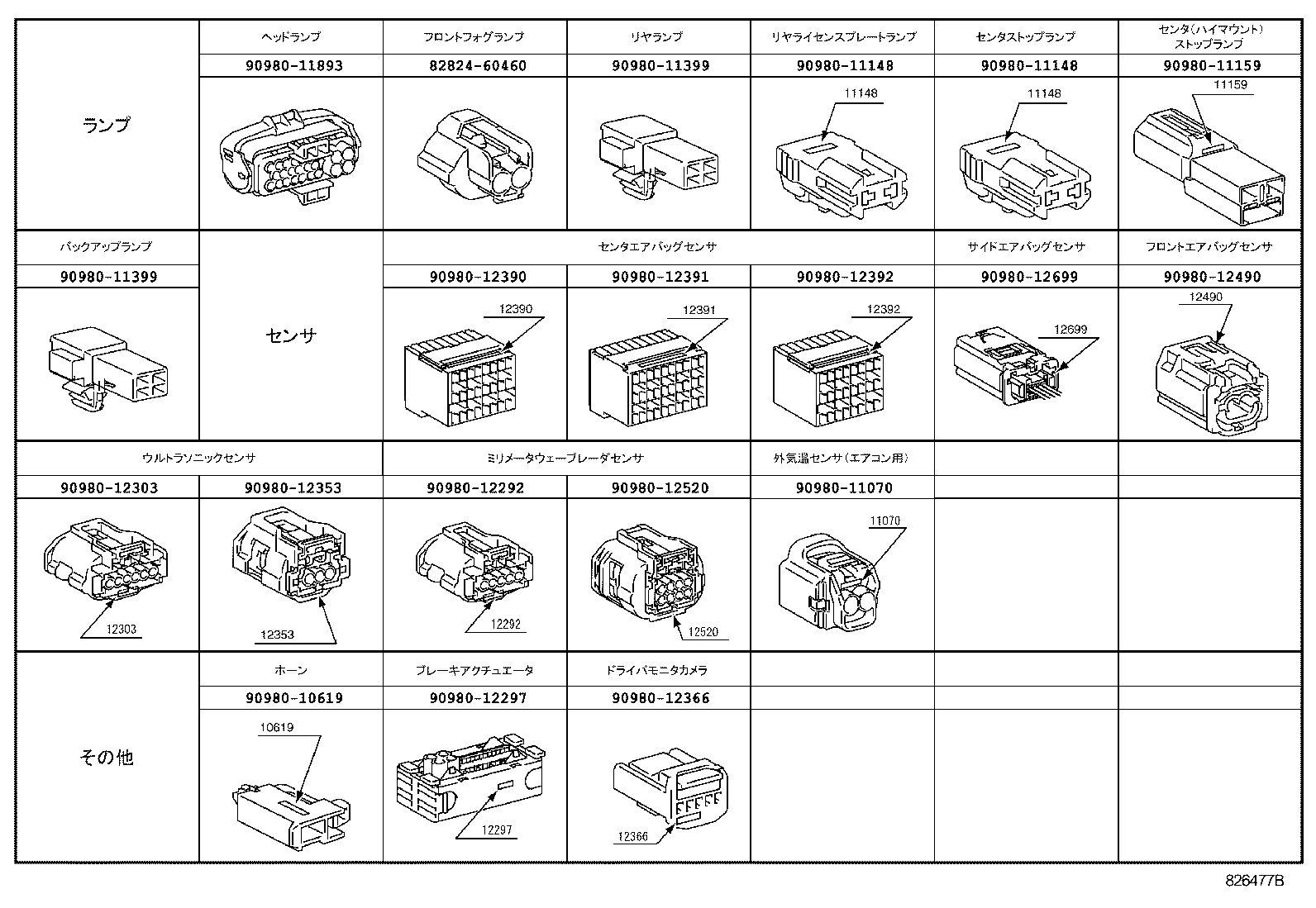

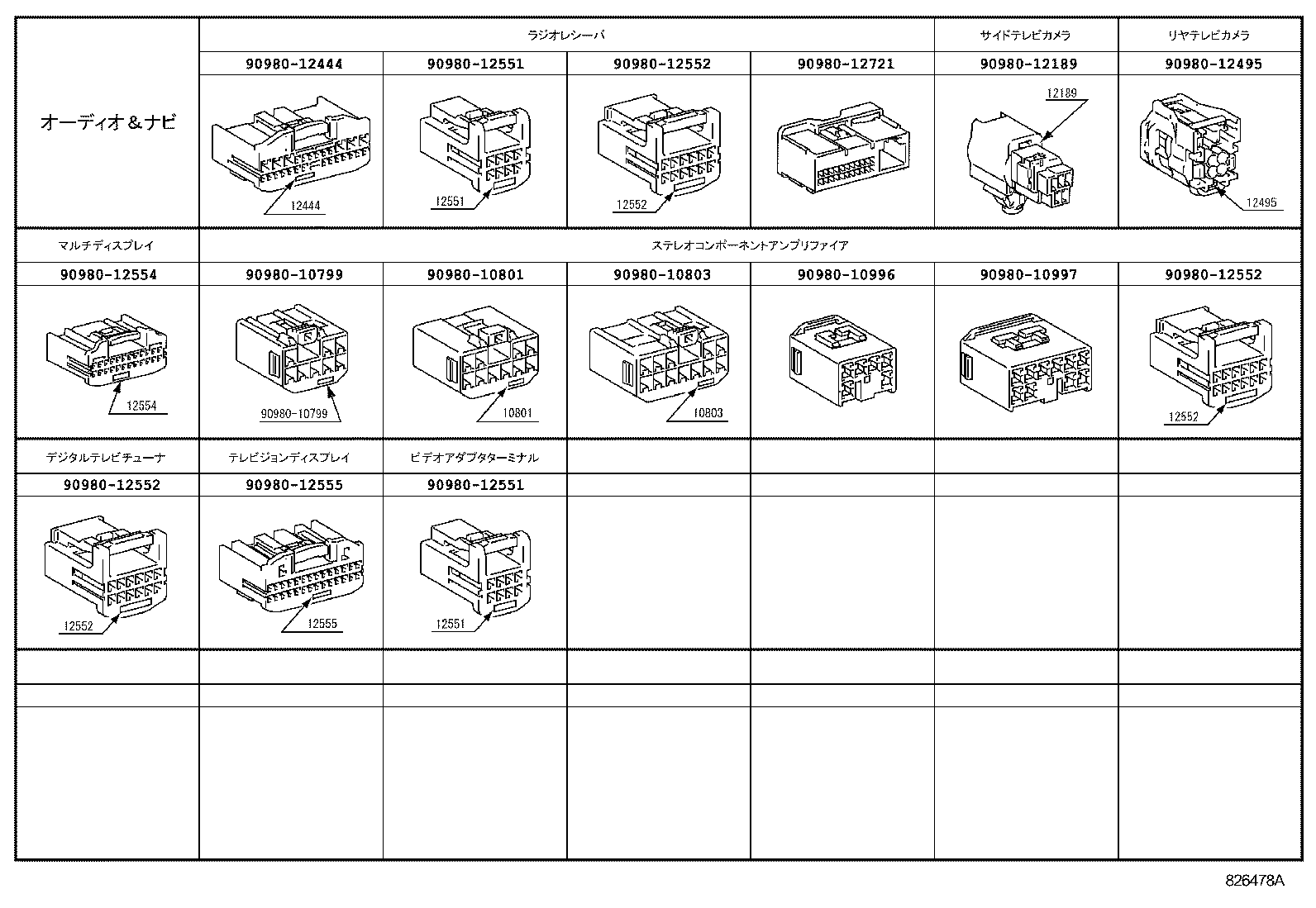

| 82824 | Connector, Wiring Harness |
| 82916 | Insulator, Wiring Harness Heat, NO.2 |
| 89656A | Wire, Power Steering Earth |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
