Toyota Majesta

2009-03 → 2013-07 · chassis URS206,UZS207 · catalogue 335110 · Japan

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

13 part groups · 2 illustrations

Illustrations

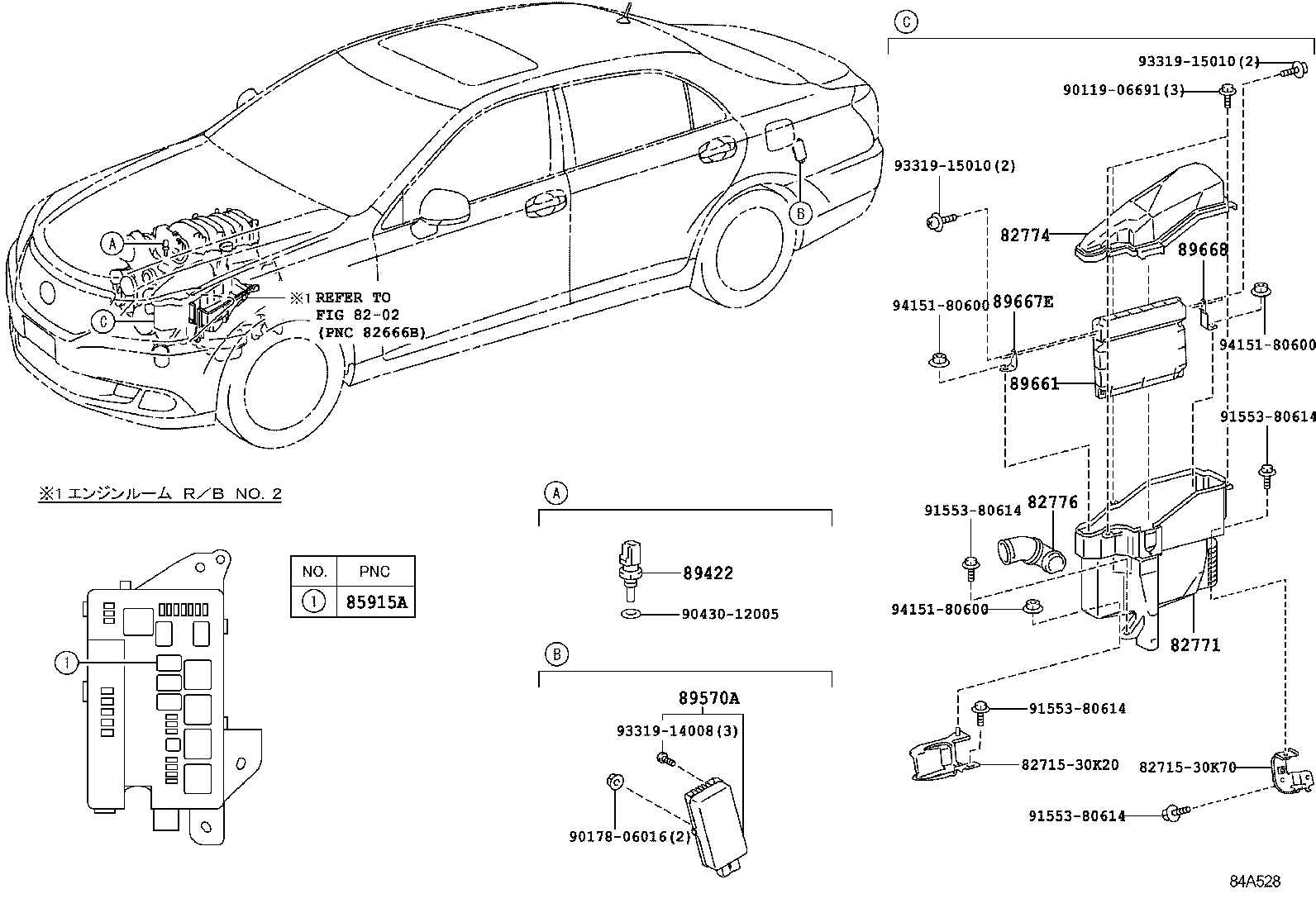

Figure 84A519B 84A519B 2009-03 → — Figure 84A528 84A528 2009-03 → —

Part groups

PNCDescription
82771 Box, Engine Room Ecu
82774 Cover, Engine Room Ecu
82776 Duct, Engine Room Ecu Outlet
85910Z Relay, Injection (FOR EFI)
85911C Relay, Efi 2
85915A Relay, Main
89422 Sensor, Water Temperature (FOR E.F.I.)
89570A Computer Assy, Fuel Pump Control
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
89871 Driver, Injector
89879 Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
