Toyota Majesta
2009-03 → 2013-07 · chassis URS206,UZS207 · catalogue 335110 · Japan
Supported model
Data version 2014-01
Antenna

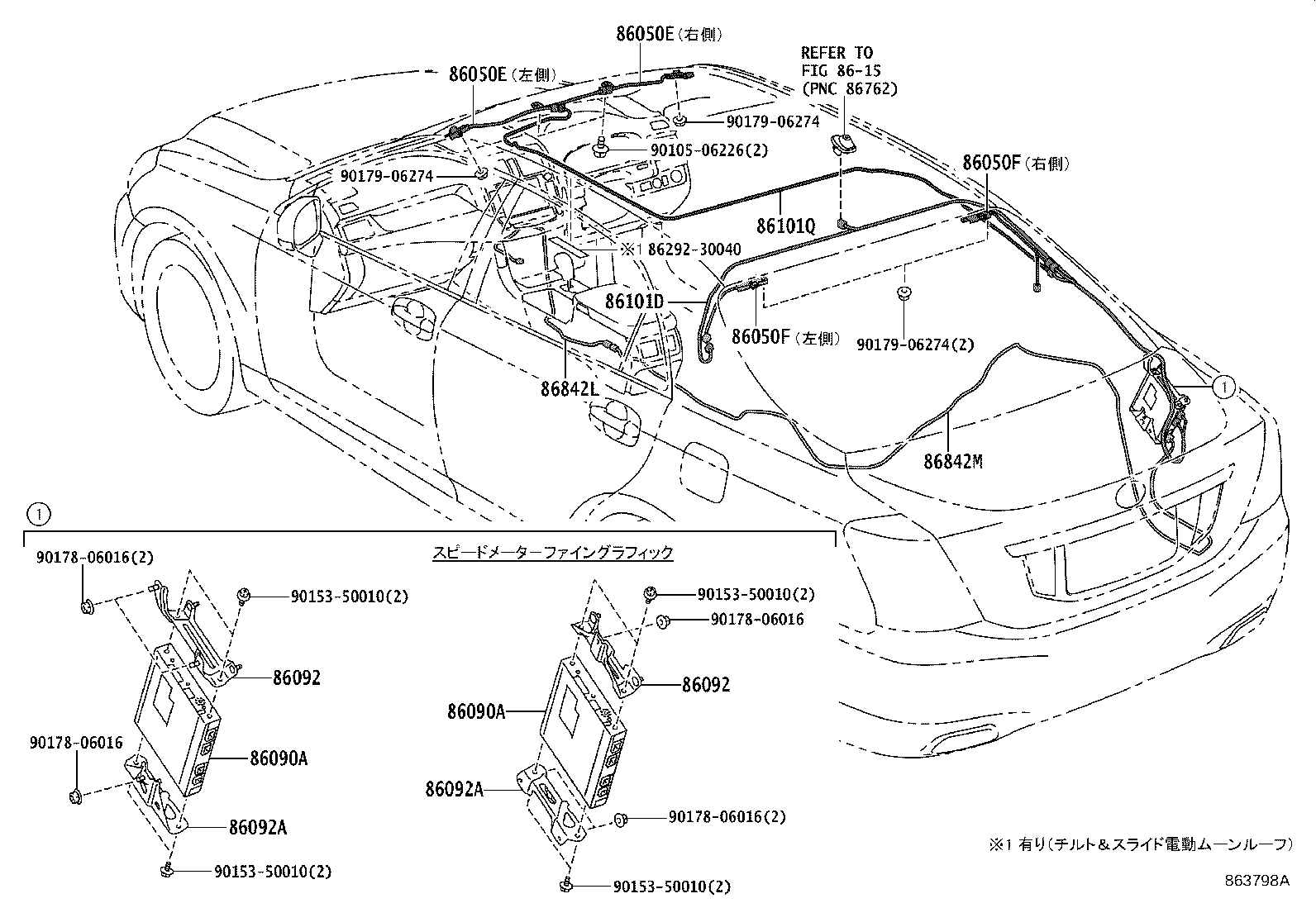

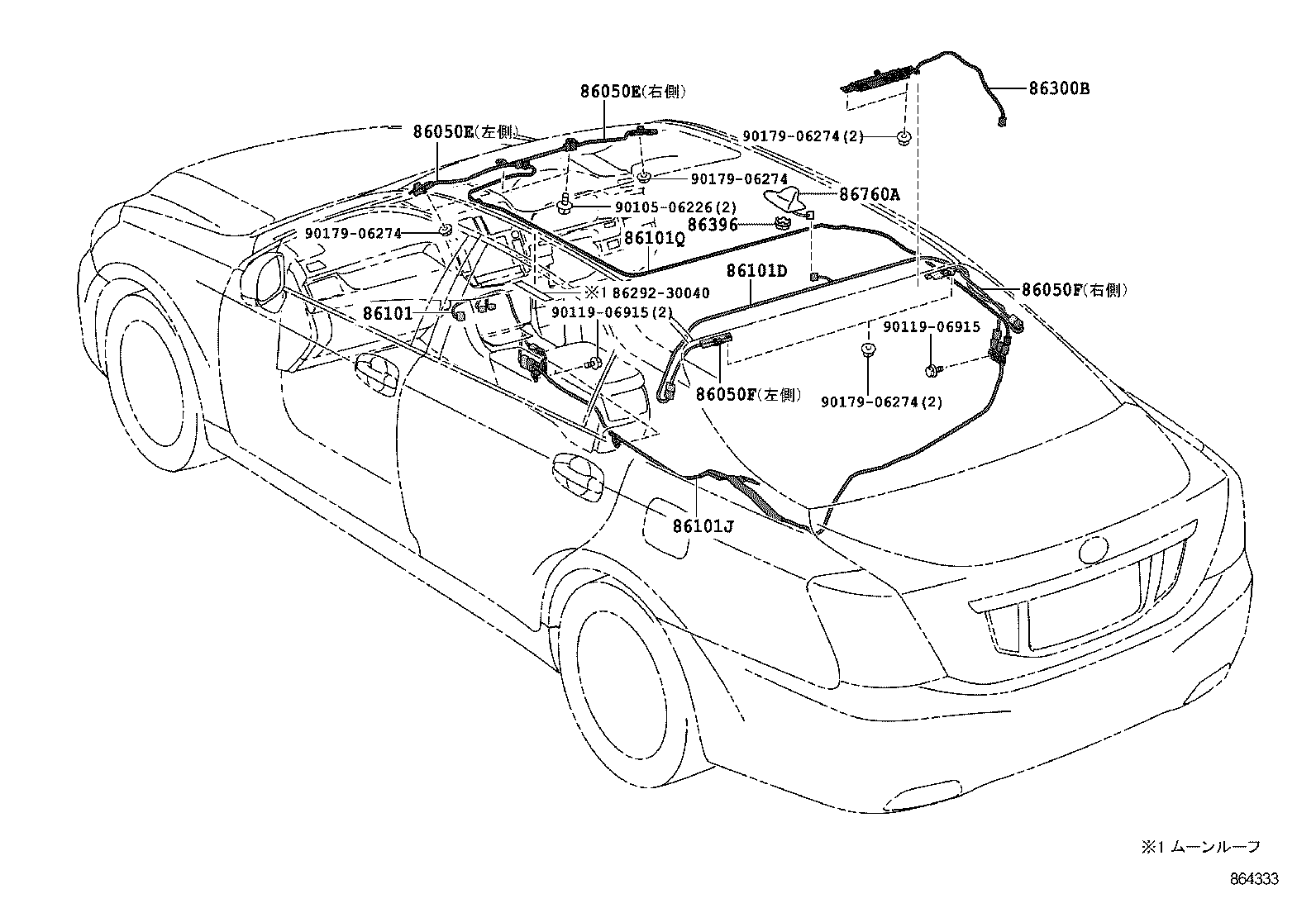

15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86050E | Antenna Assy, Television |
| 86050F | Antenna Assy, Television |
| 86090A | Tuner Assy, Digital Television |
| 86092 | Bracket, Digital Television, Front |
| 86092A | Bracket, Digital Television, Rear |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86101Q | Cord Sub-assy, Antenna, NO.4 |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86396 | Nut, Antenna |
| 86705A | Cord Sub-assy, Telephone Antenna |
| 86760A | Antenna Assy, Telephone |
| 86842L | Wire, Navigation, NO.1 |
| 86842M | Wire, Navigation, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
