Toyota Majesta
2009-03 → 2013-07 · chassis URS206,UZS207 · catalogue 335110 · Japan
Supported model
Data version 2014-01
Camera & Rear Monitor Display
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

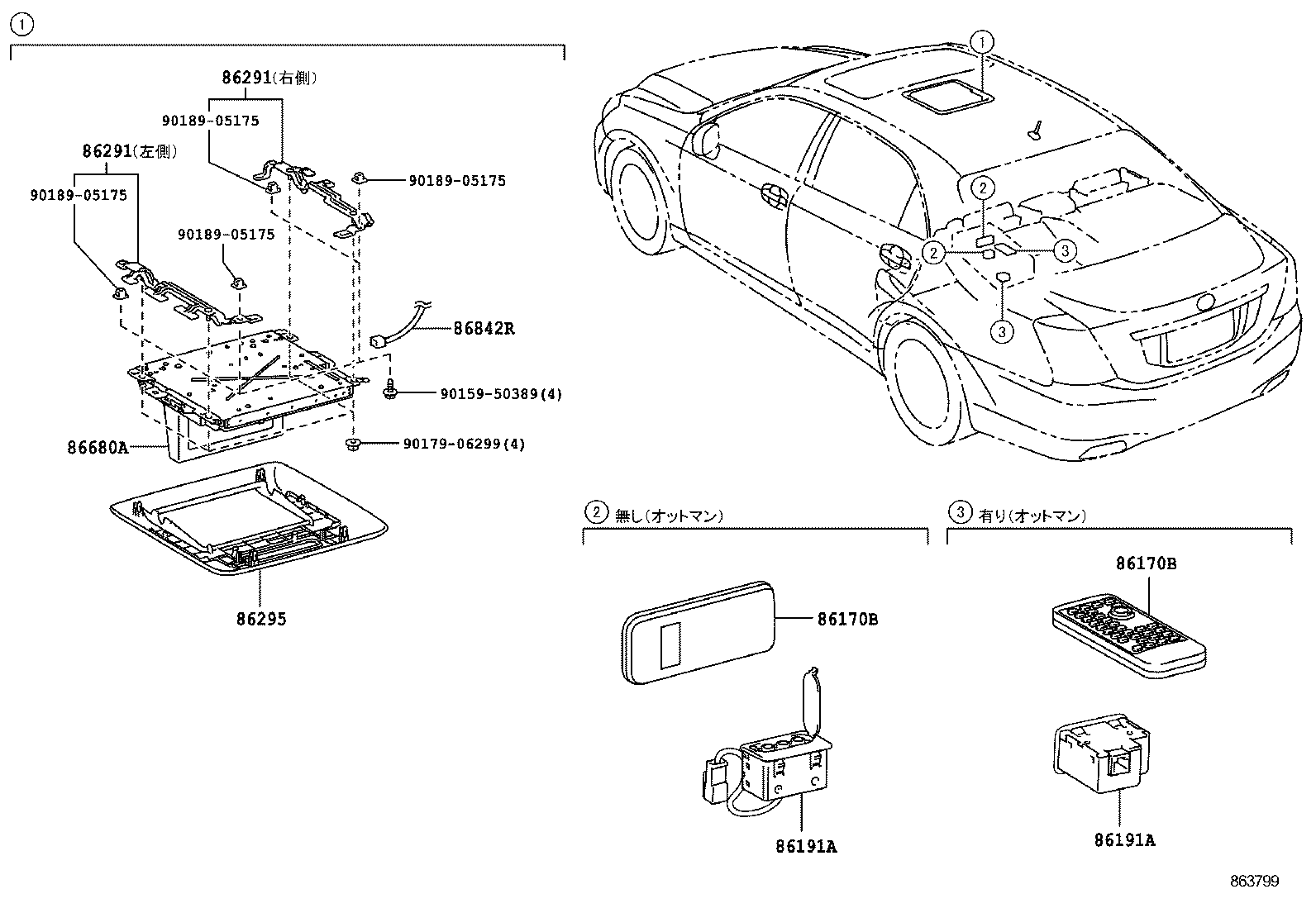

| 86170B | Switch & Volume Assy, Television |
| 86191A | Terminal, Video(VIDEO ADAPTER) |
| 86291 | Bracket, Television |
| 86295 | Base, Television |
| 86470 | Computer Assy, Driver Monitor |
| 86471 | Camera, Driver Monitor |
| 86472 | Bracket, Driver Monitor |
| 86680A | Display Assy, Television |
| 86790C | Camera Assy, Television, Side |
| 86790D | Camera Assy, Television, RR |
| 86792C | Computer, Parking Assist |

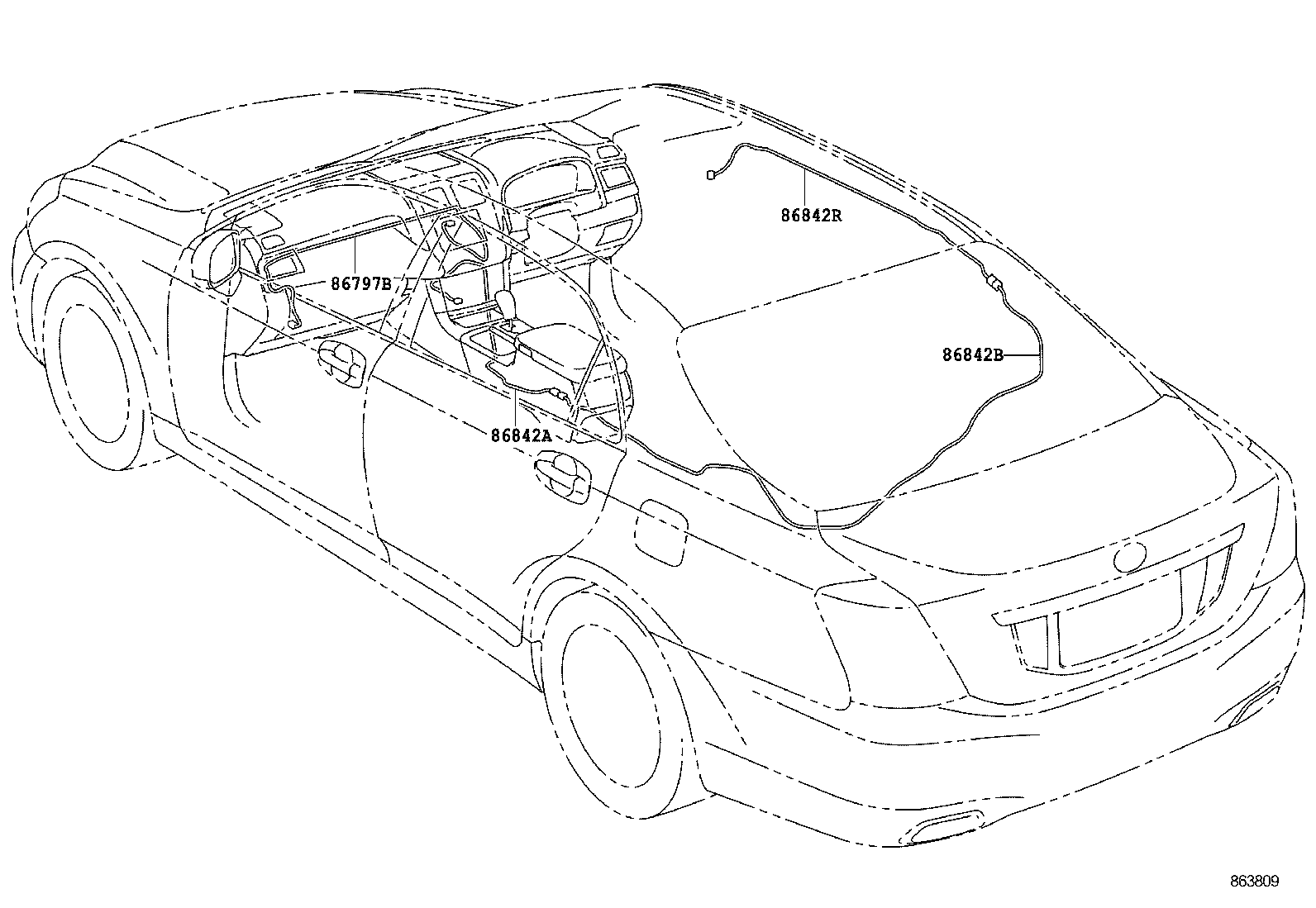

| 86797B | Wire, Parking Assist |
| 86842A | Wire, Navigation, NO.1 |
| 86842B | Wire, Navigation, NO.2 |
| 86842R | Wire, Navigation, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
