Heating & Air Conditioning - Cooler Piping

15 part groups · 5 illustrations

Illustrations

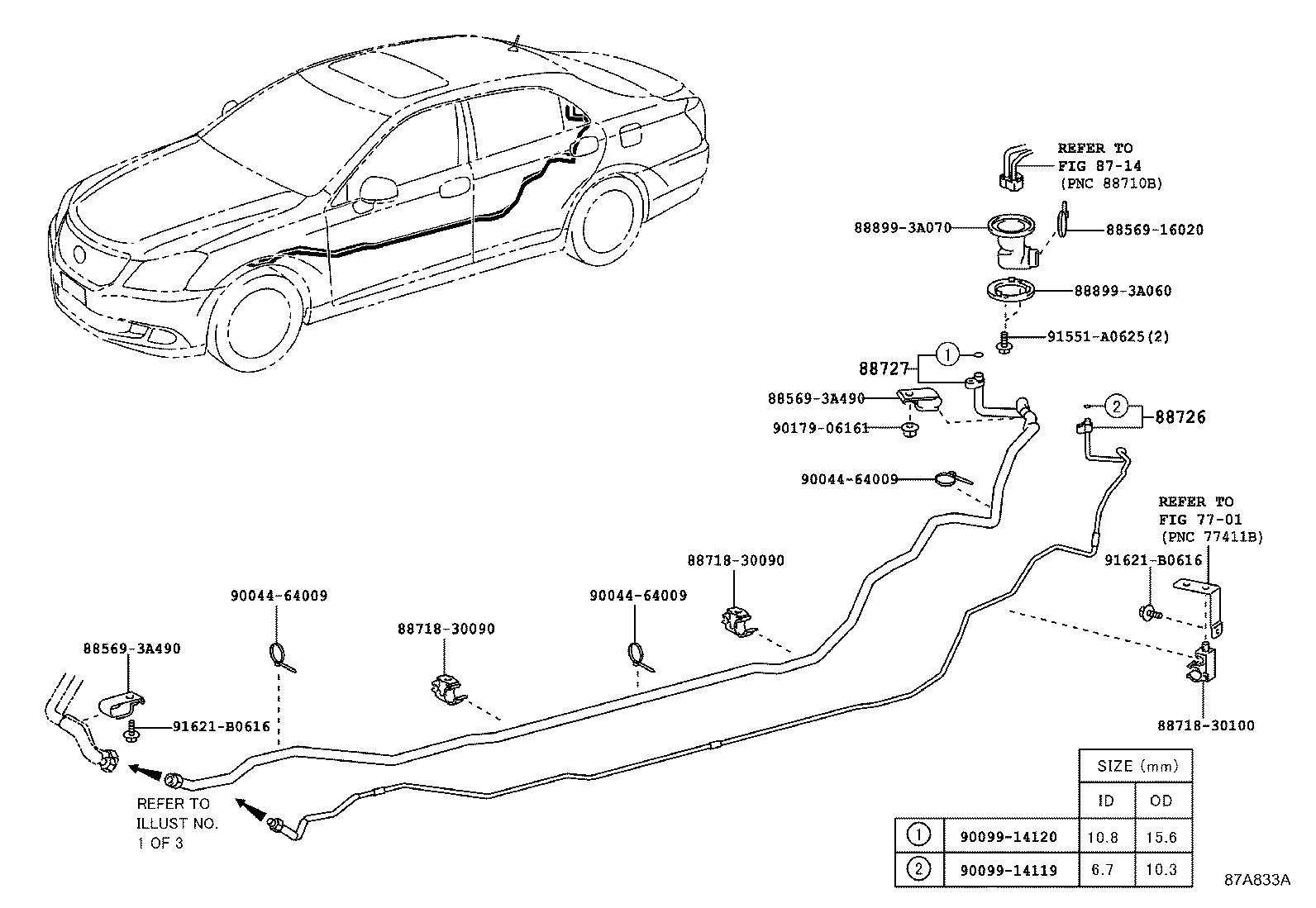

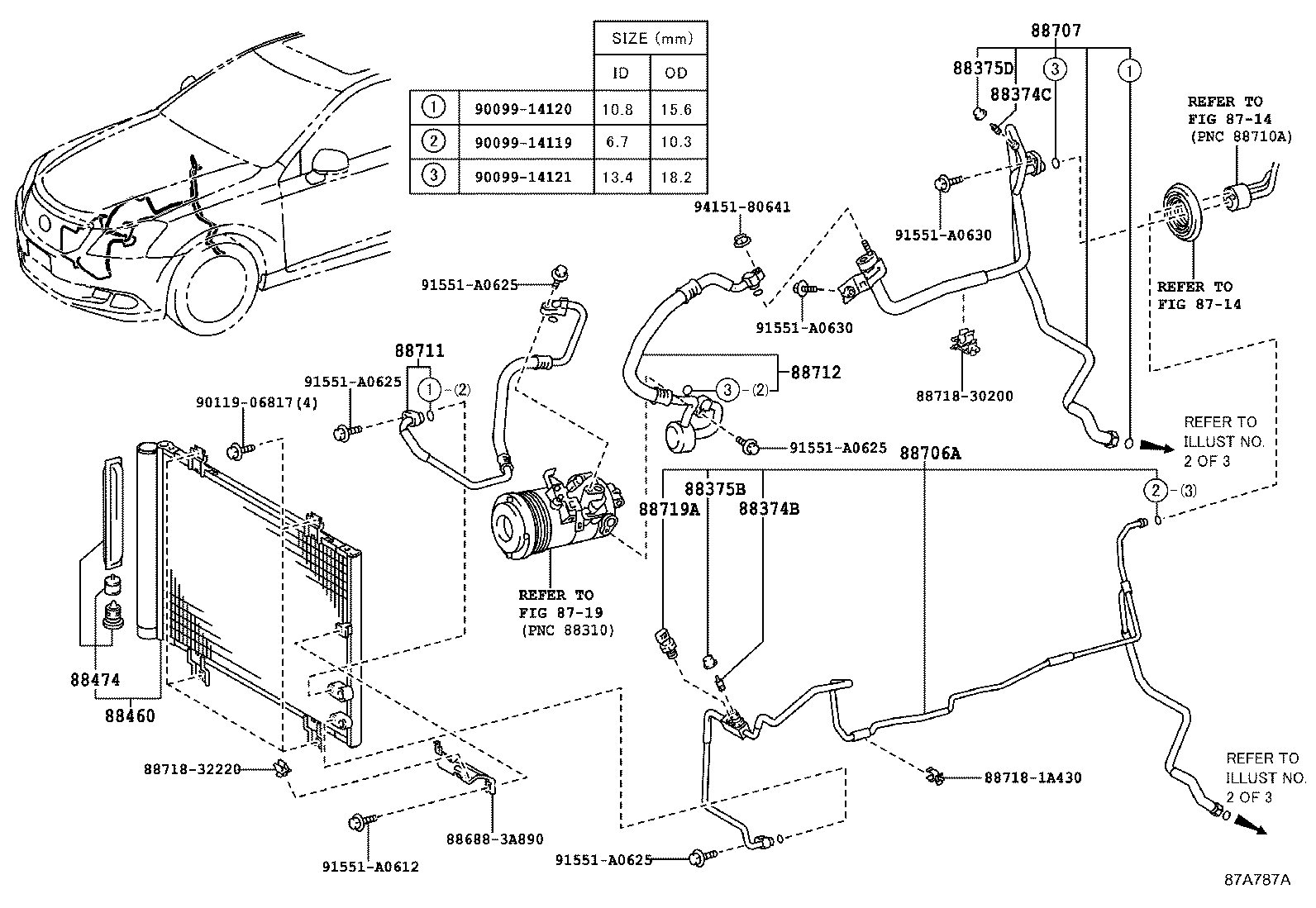

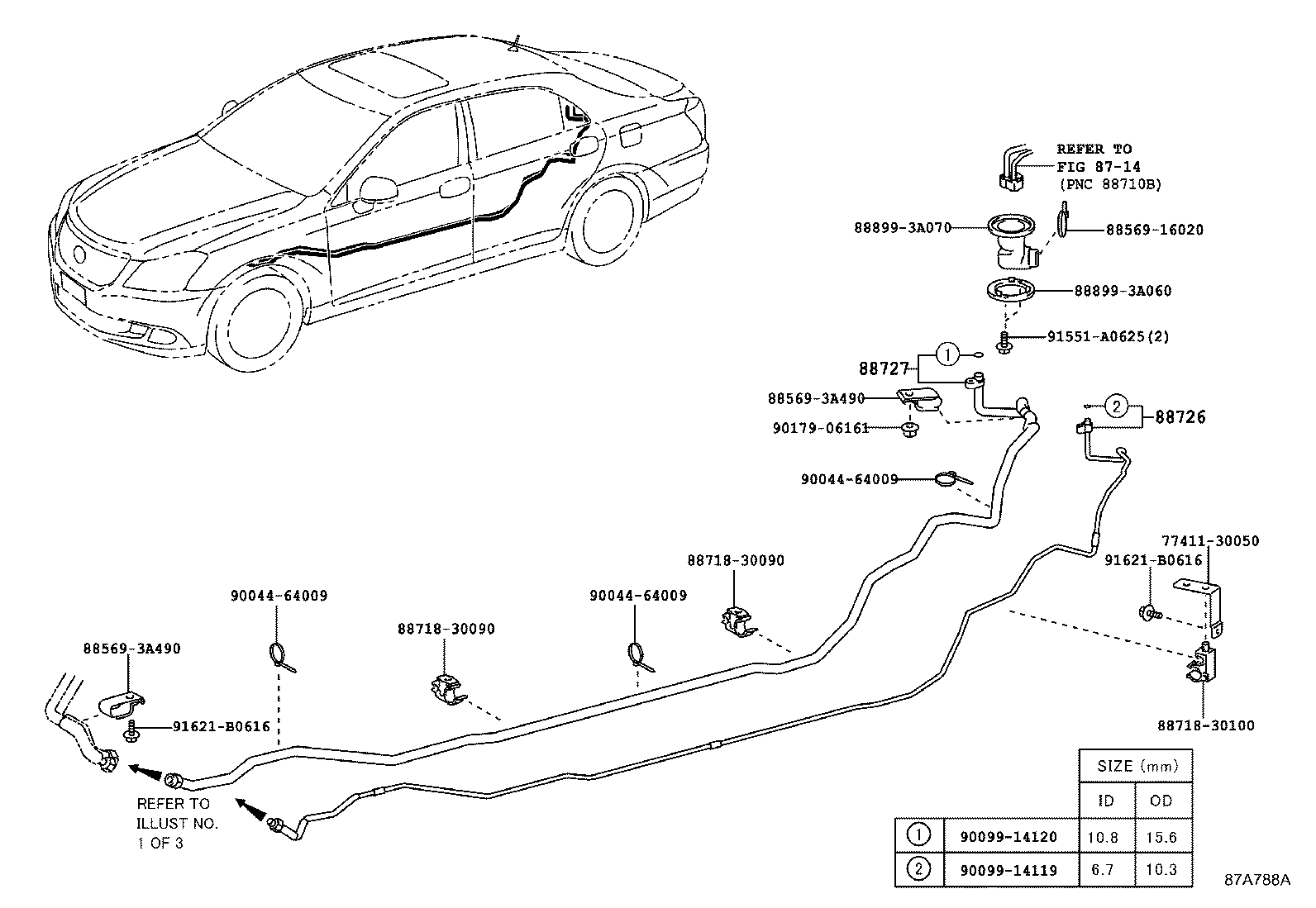

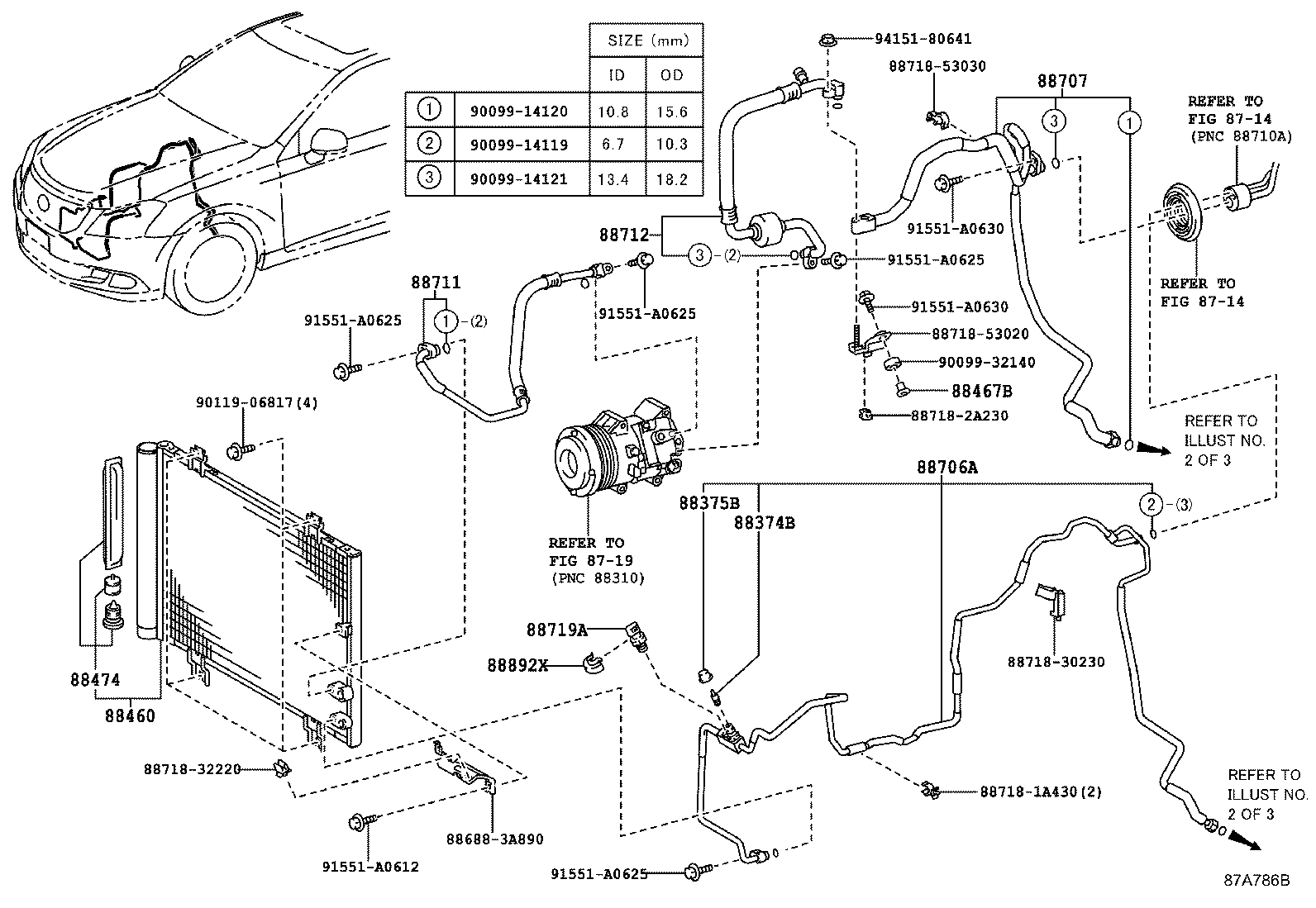

Figure 87A785B 87A785B 2009-03 → — Figure 87A786B 87A786B 2009-03 → — Figure 87A787A 87A787A 2009-03 → — Figure 87A788A 87A788A 2009-03 → — Figure 87A833A 87A833A 2009-03 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88467B Insulator, Cooler Condenser Mounting
88474 Dryer, Cooler
88706A Tube Sub-assy, Liquid, A
88707 Pipe Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88719A Sensor, Air Conditioner Pressure
88726 Tube, Liquid, NO.2
88727 Tube, Suction, NO.2
88892X Cover, Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
