Toyota Crown Sport
2023-08 → present · chassis AZSH36,AZSH37 · catalogue 33A110 · Japan
Supported model
Data version 2023-12

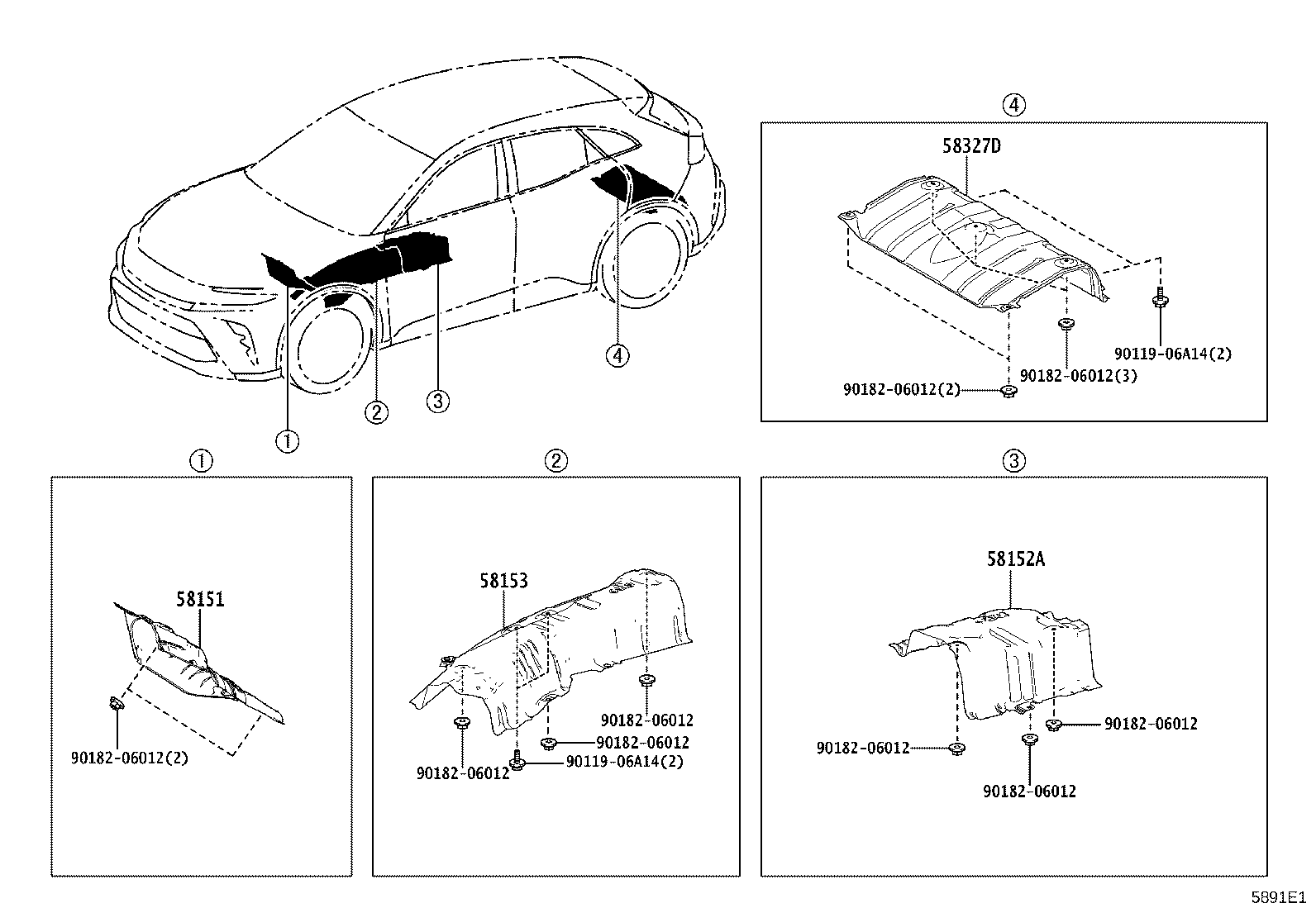

Floor Insulator
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58151 | Insulator, Front Floor Heat, NO.1 |
| 58152A | Insulator, Front Floor Heat, NO.1 Lower |
| 58153 | Insulator, Front Floor Heat, NO.2 |
| 58327D | Insulator, Main Muffler Heat, Upper |
| 58723E | Cushion, Engine Service Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
