Toyota Crown Sport

2023-08 → present · chassis AZSH36,AZSH37 · catalogue 33A110 · Japan

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

13 part groups · 2 illustrations

Illustrations

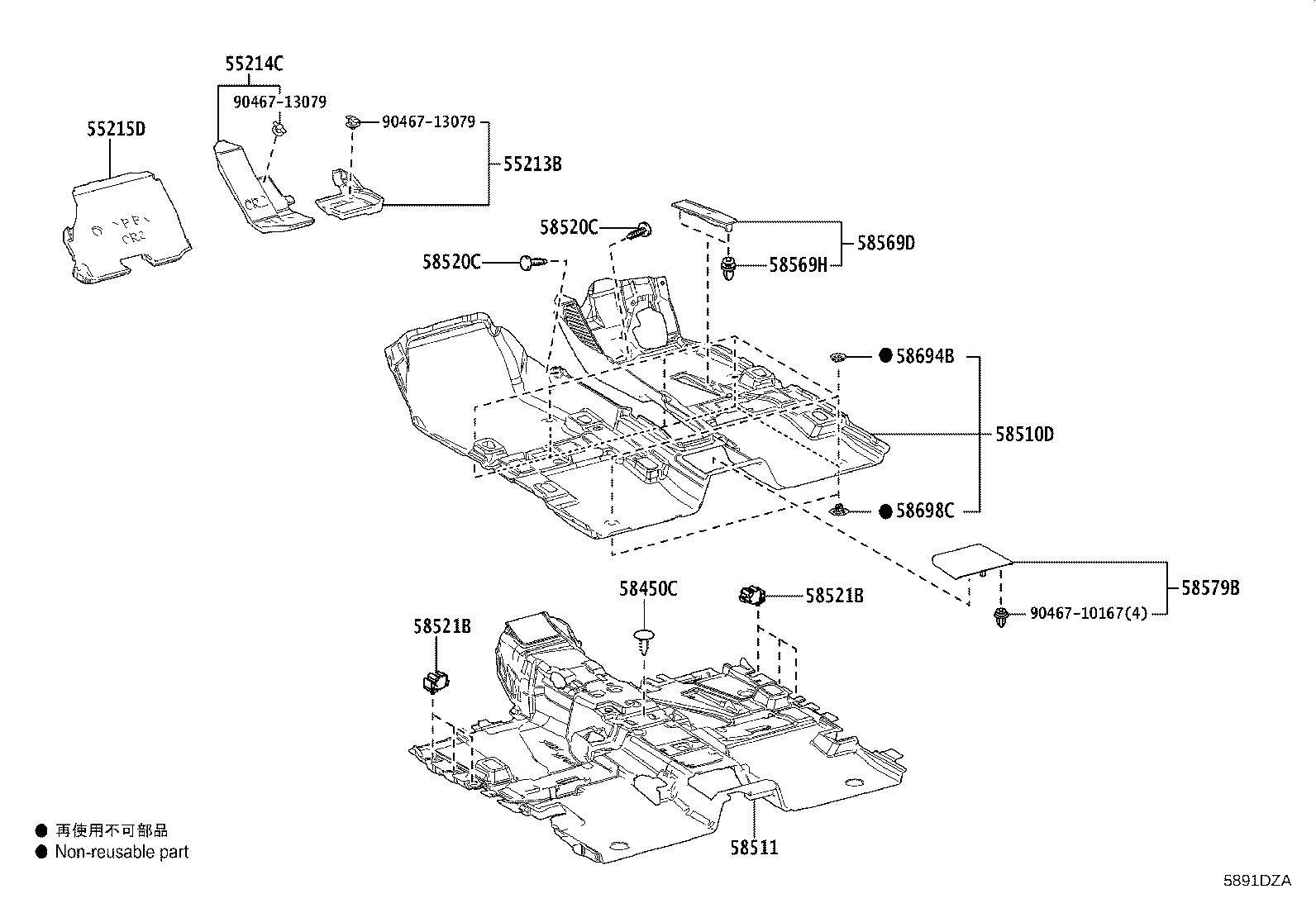

Figure 589176B 589176B 2023-08 → — Figure 5891DZA 5891DZA 2023-12 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58450C Clip
58510D Carpet Assy, Floor, Front
58511 Mat, Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58569D Cover, Front Floor Caution Plate
58569H Clip, Front Floor Caution Plate Cover, NO.1
58579B Pad, Rear Floor
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
