Toyota Crown Sport
2023-08 → present · chassis AZSH36,AZSH37 · catalogue 33A110 · Japan
Supported model
Data version 2023-12

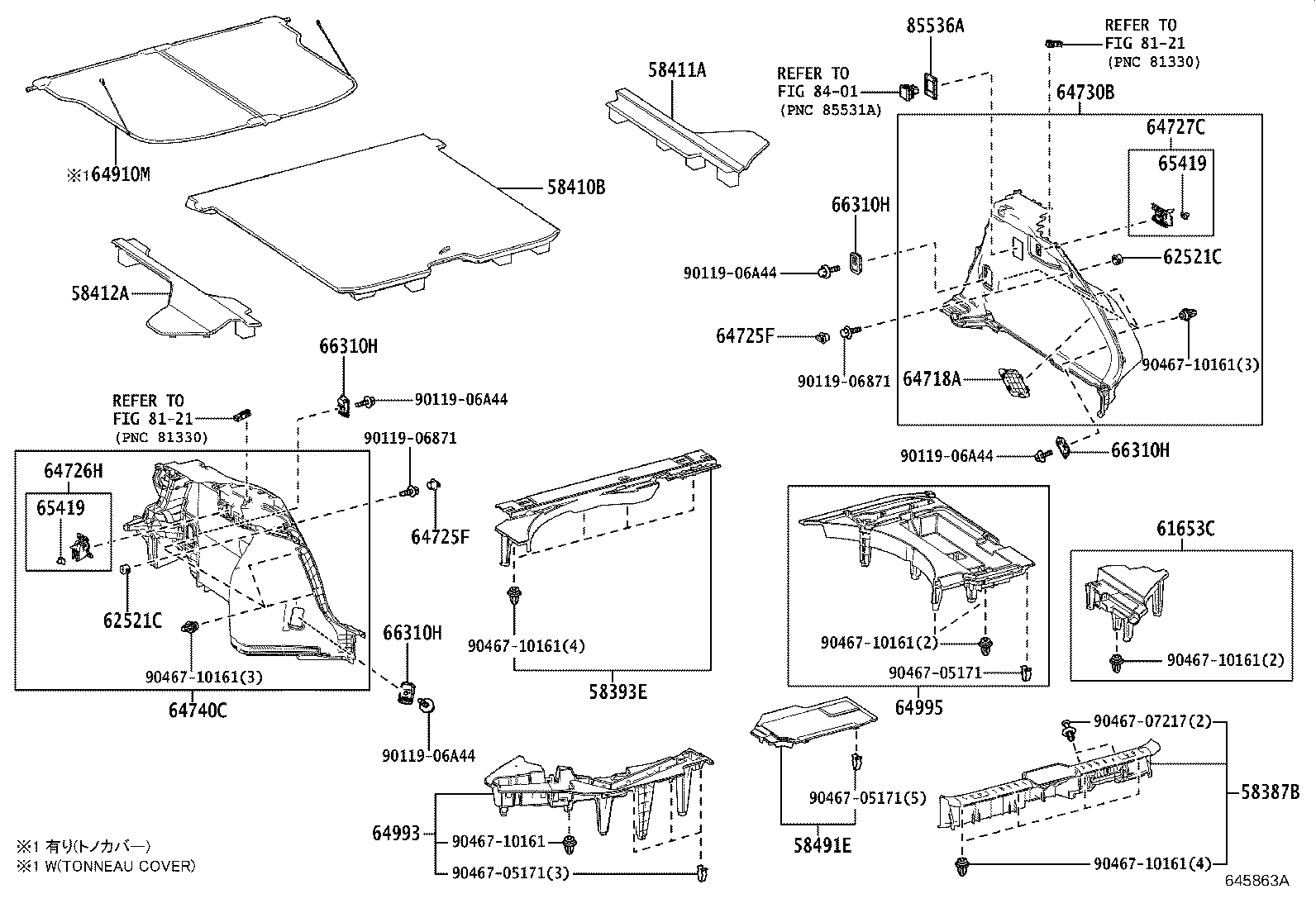

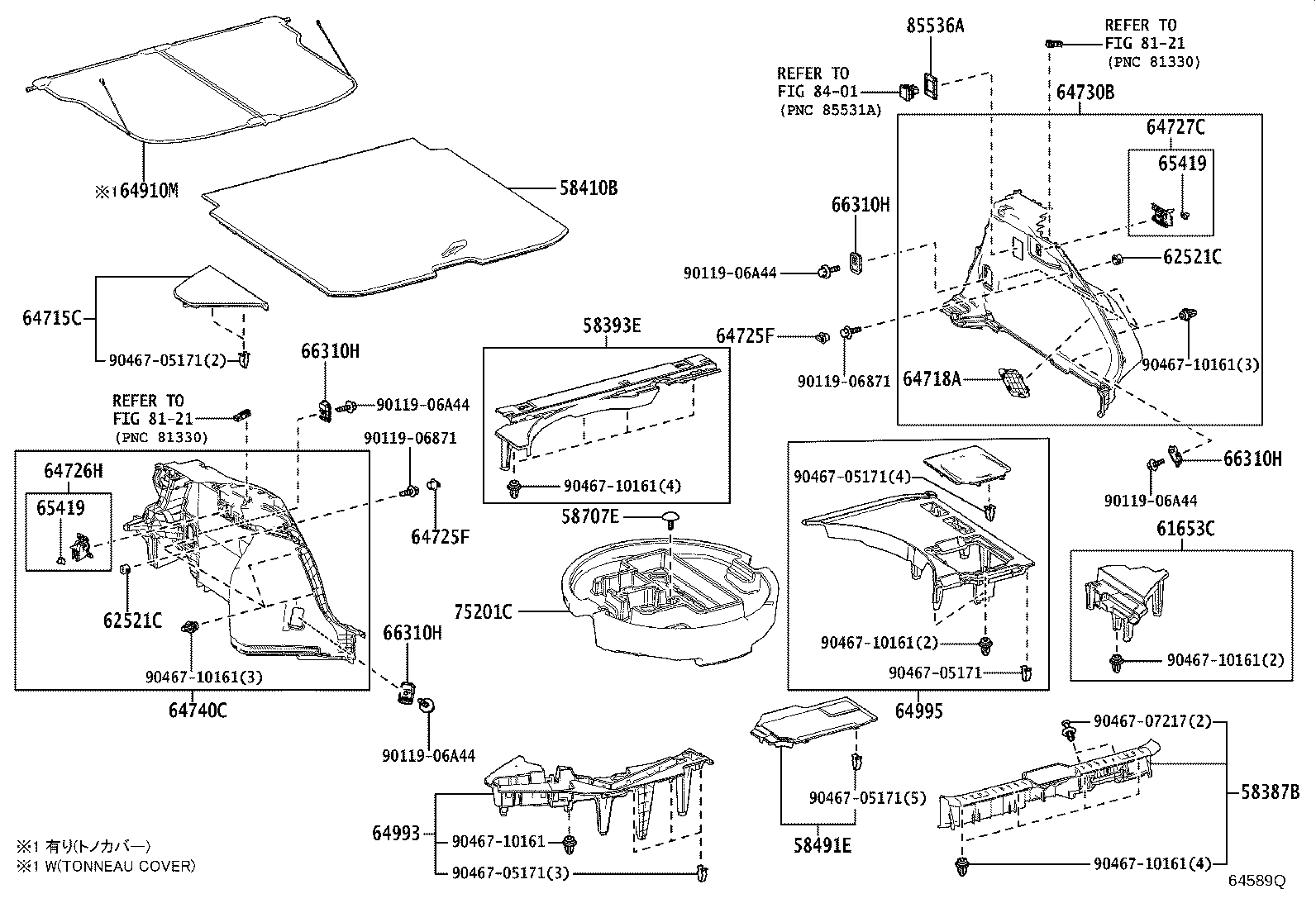

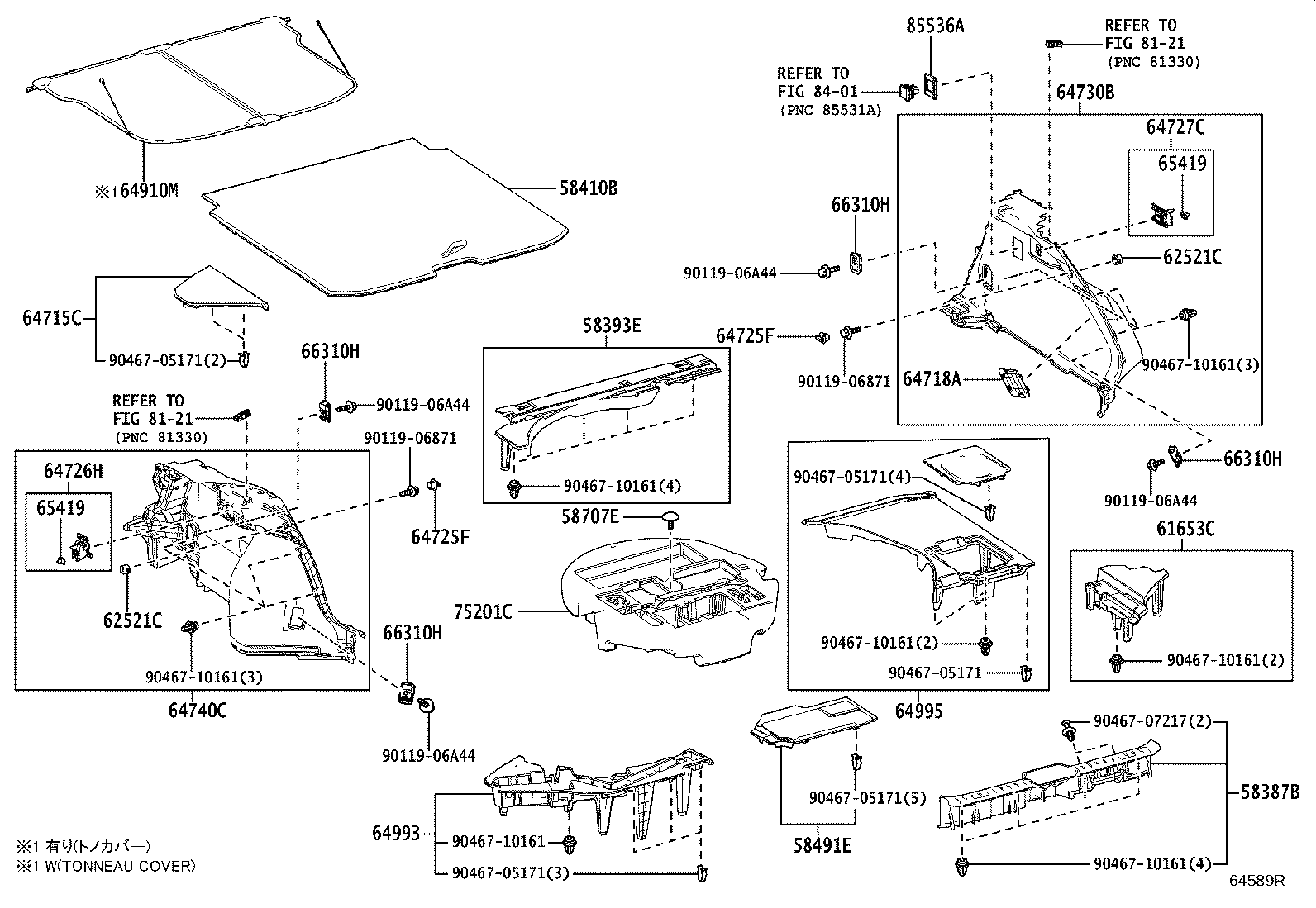

Deck Board & Deck Trim Cover
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387B | Plate, Rear Floor Finish |
| 58393E | Support, Deck Board Set |
| 58410B | Board Assy, Deck |
| 58411A | Board, Deck, NO.1 |
| 58412A | Board, Deck, NO.2 |
| 58491E | Plate, Battery Service Cover |
| 58707E | Plug Set, Hole |
| 61653C | Bracket, Deck Side Trim, RH |
| 62521C | Cover, Quarter Trim RH |
| 64715C | Cover, Deck Side Trim, LH |
| 64718A | Cover, Deck Trim Service Hole |
| 64725F | Hook, Luggage Compartment Trim, NO.1 |
| 64726H | Hook, Deck Side Trim, NO.2 |
| 64727C | Hook, Luggage Compartment Trim, NO.3 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64910M | Cover Assy, Tonneau |
| 64993 | Box, Deck Floor, Rear |
| 64995 | Box, Deck Floor, RH |
| 65419 | Clip, Corner Protector |
| 66310H | Hook Assy, Rope |
| 75201C | Box Sub-assy, Tool, NO.1 |
| 85536A | Bezel, Power Outlet Socket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
