Toyota Crown Sport
2023-08 → present · chassis AZSH36,AZSH37 · catalogue 33A110 · Japan
Supported model
Data version 2023-12

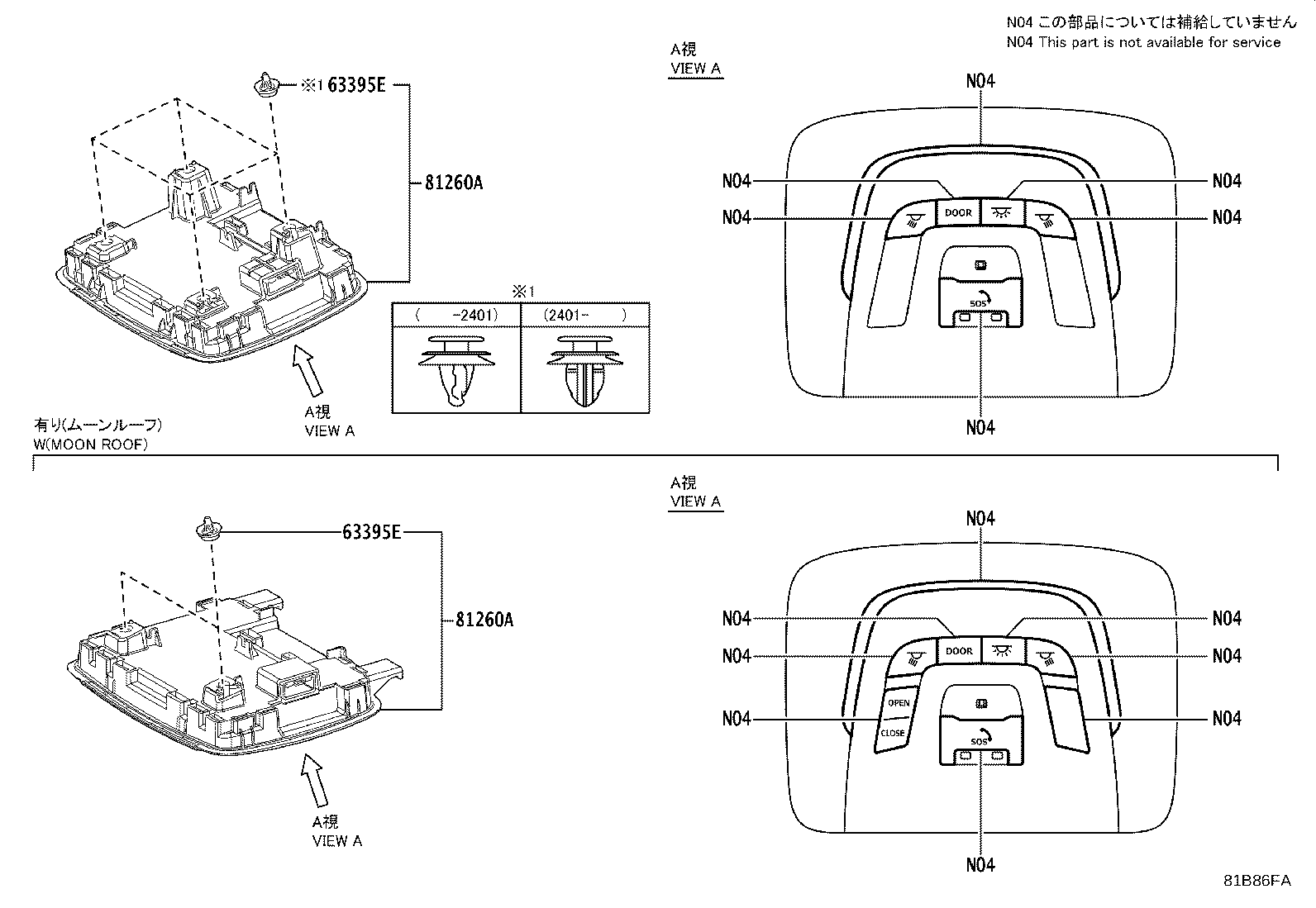

Interior Lamp
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 81080K | Lamp Assy, Console Box Illumination |
| 81080M | Lamp Assy, Interior Illumination, NO.1 |
| 81080V | Lamp Assy, Interior Illumination, NO.2 |
| 81230 | Lamp Assy, Courtesy |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81340 | Lamp Assy, Vanity |
| 81360T | Lamp Assy, Spot |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
