Toyota Crown Sport

2023-08 → present · chassis AZSH36,AZSH37 · catalogue 33A110 · Japan

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

9 part groups · 3 illustrations

Illustrations

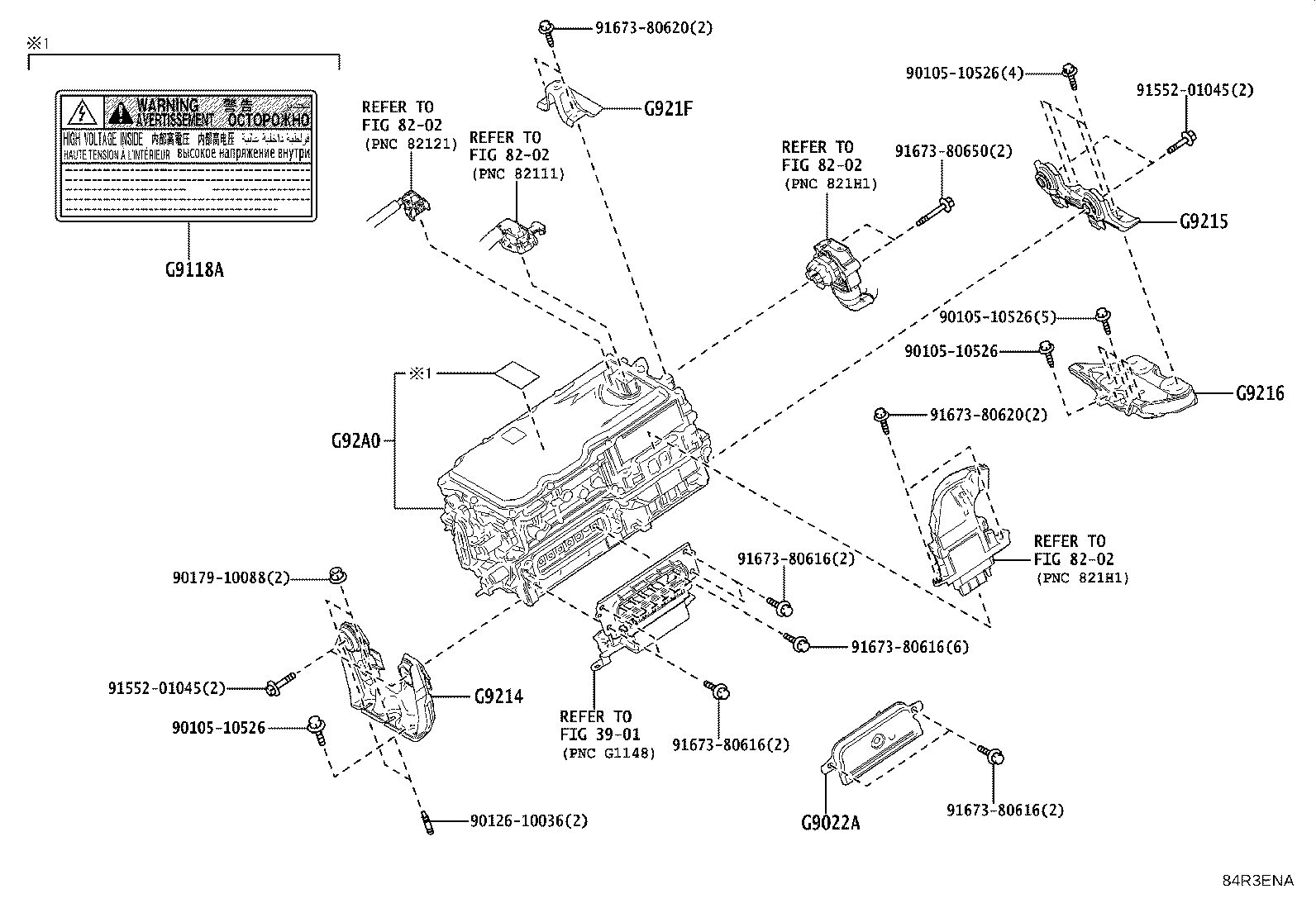

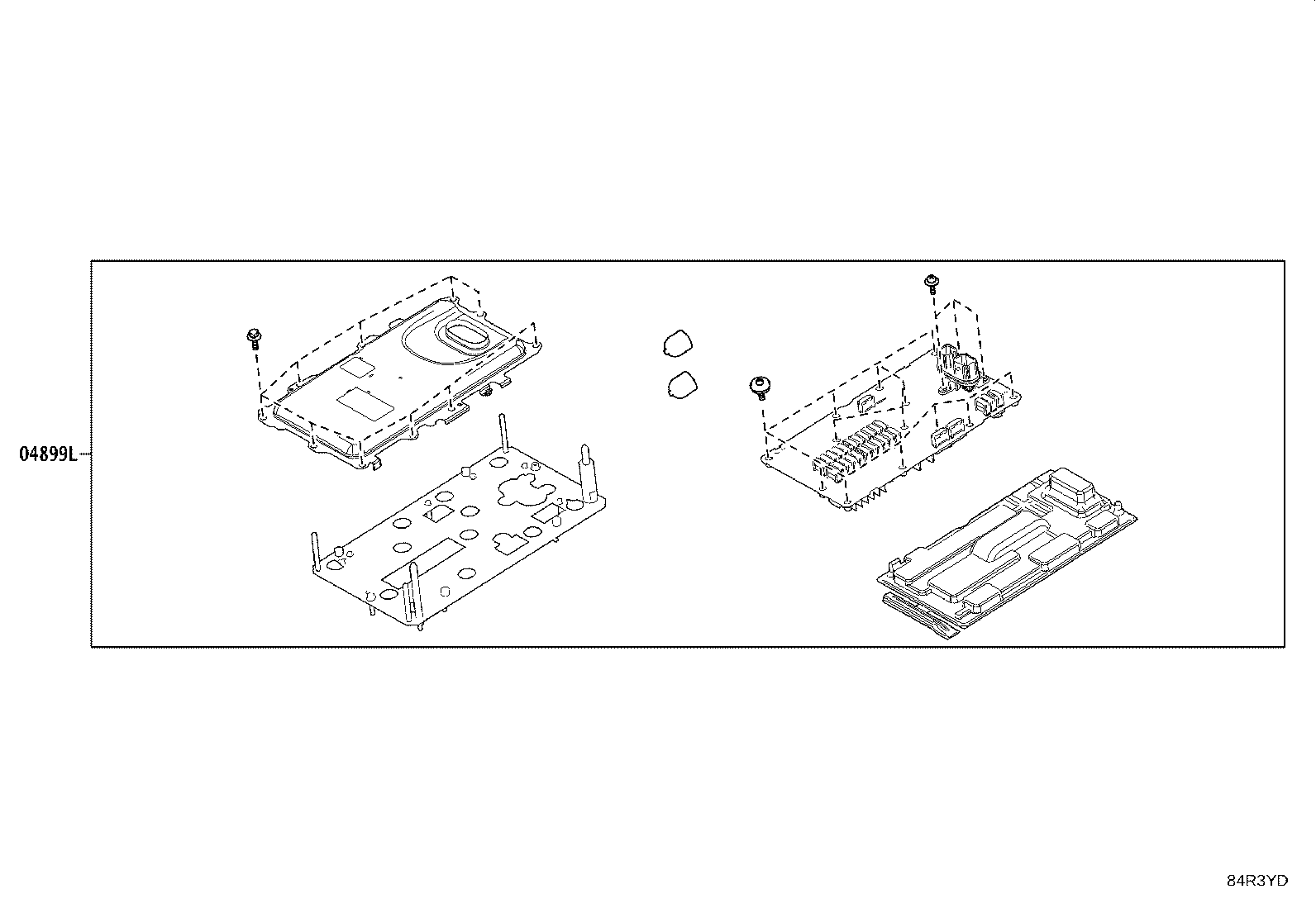

Figure 84R166 84R166 2023-08 → — Figure 84R3ENA 84R3ENA 2023-12 → — Figure 84R3YD 84R3YD 2023-08 → —

Part groups

PNCDescription
04899L Computer Kit, Motor Generator Control
G9022A Cover Sub-assy, Inverter, Upper
G9118A Label, HV Motor Control Inverter Caution
G9200 Inverter Assy, W/Converter
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G9216 Bracket, Inverter, NO.3
G921F Protector, Inverter, NO.2
G92A0 Inverter Assy, Hybrid Motor Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
