Toyota Crown Sport

2023-08 → present · chassis AZSH36,AZSH37 · catalogue 33A110 · Japan

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

8 part groups · 3 illustrations

Illustrations

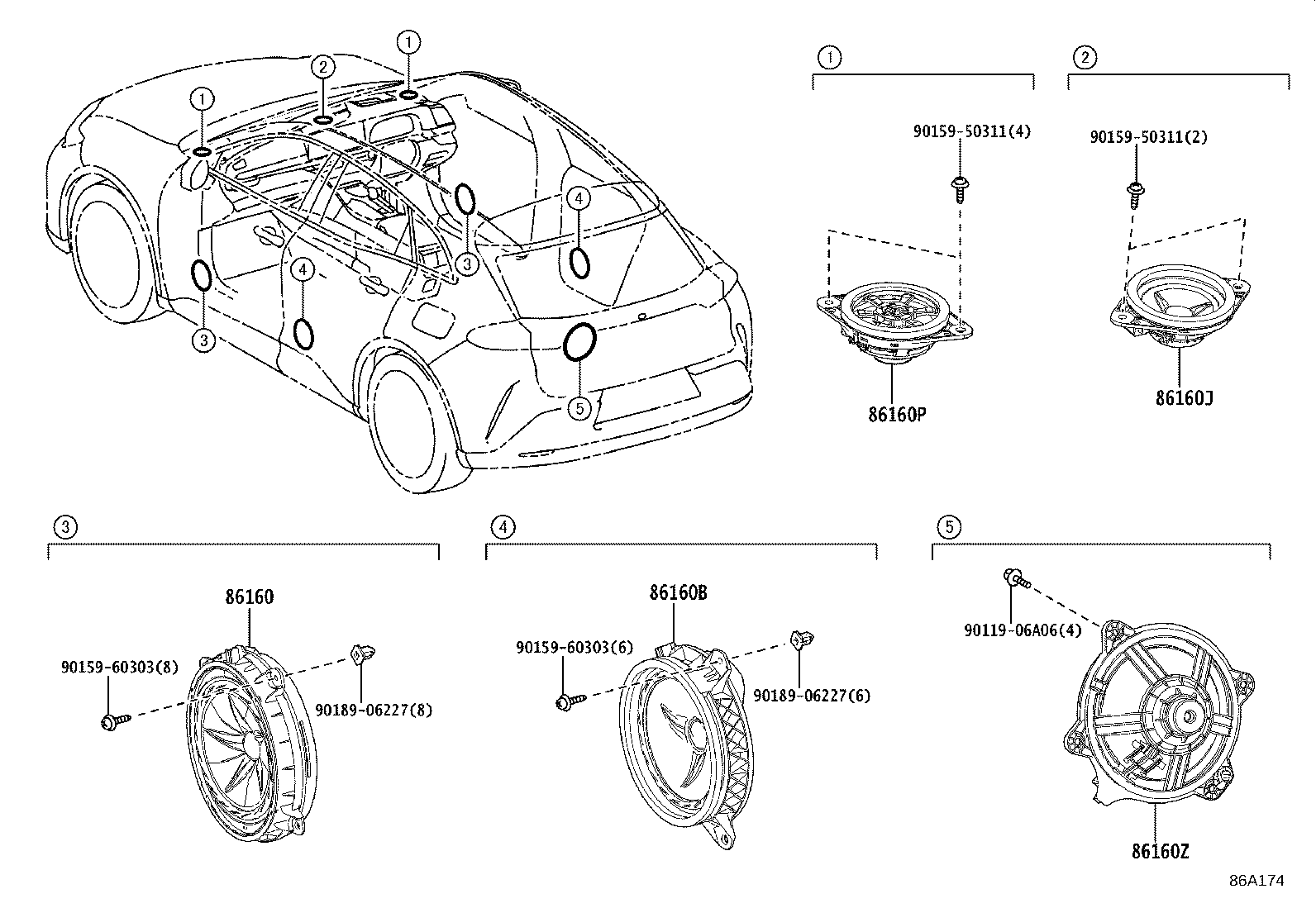

Figure 86A173 86A173 2023-08 → — Figure 86A174 86A174 2023-08 → — Figure 86A175 86A175 2023-08 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160P Speaker Assy, Front NO.2
86160Z Speaker Assy, Rear NO.3
86240A Equalizer Assy,Stereo Component
86244A Bracket, Equalizer Stereo Component, NO.1
86244B Bracket, Equalizer Stereo Component, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
