Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

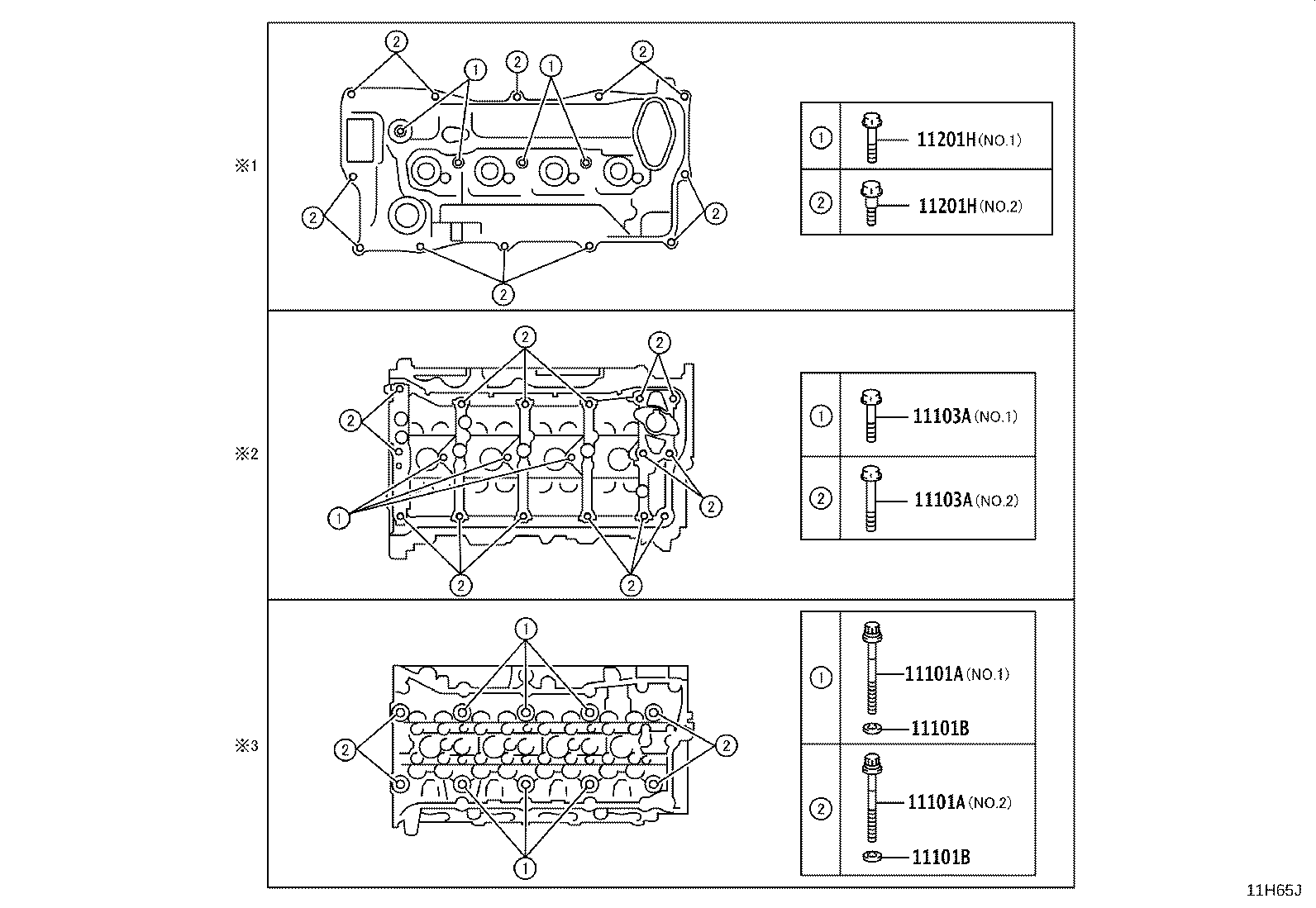

| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02201 note |
Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
|
A25 AZSH32 | ¥360 | |
| 90910-02202 note |
Bolt(FOR CYLINDER HEAD SET)
2023-11 → —
|
A25 AZSH32 | ¥310 | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-12079 |
Washer, Plate(FOR CYLINDER HEAD SET)
2023-11 → —
|
A25 AZSH32 | ¥100 | |
| 11103A — Bolt(FOR CAMSHAFT HOUSING SET) | ||||
| 91551-G0840 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2023-11 → —
|
A25 AZSH32 | ¥80 | |
| 91551-G0865 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2023-11 → —
|
A25 AZSH32 | ¥100 | |
| 11201H — Bolt(FOR CYLINDER HEAD COVER) | ||||
| 90105-06359 note |
Bolt(FOR CYLINDER HEAD COVER)
2023-11 → —
|
A25 AZSH32 | ¥60 | |
| 90109-06384 note |
Bolt(FOR CYLINDER HEAD COVER)
2023-11 → —
|
A25 AZSH32 | ¥80 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
