Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

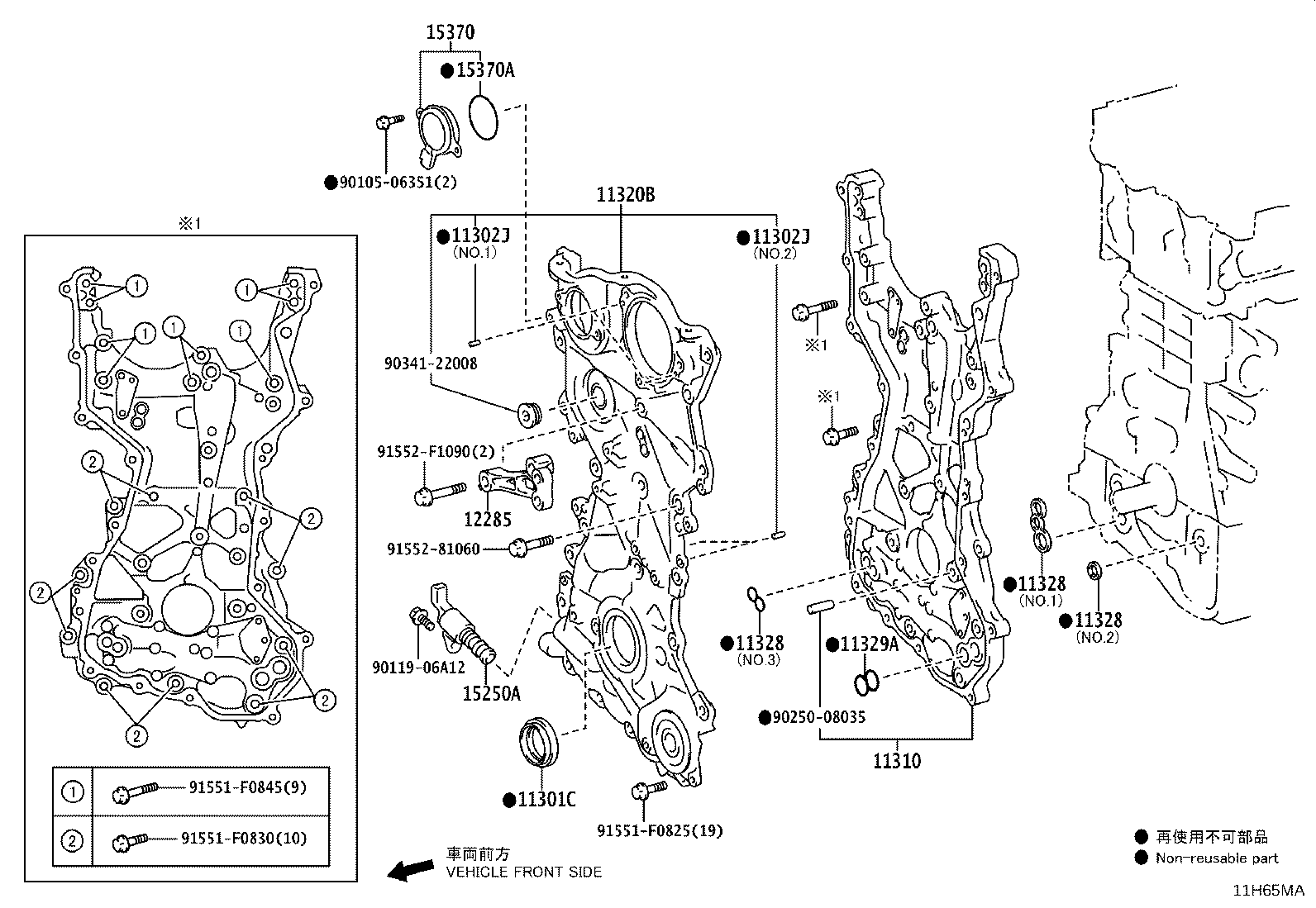

Exploded illustration 11H65MA 11301C — SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) (1 parts) 12285 — BRACKET, ENGINE HANGER (1 parts) 15250A — VALVE ASSY, OIL PRESSURE CONTROL (1 parts) 11310 — COVER ASSY, TIMING CHAIN (1 parts) 11320B — COVER ASSY, TIMING CHAIN, NO.2 (1 parts) 15370 — SOLENOID ASSY, CAM TIMING OIL CONTROL (1 parts) 15370A — RING, O(FOR CAM TIMING OIL CONTROL SOLENOID) (1 parts) 9010506351 — not listed in this catalogue 91551F0825 — not listed in this catalogue 91551F0830 — not listed in this catalogue 9025008035 — not listed in this catalogue 9034122008 — not listed in this catalogue 91552F1090 — not listed in this catalogue 9155281060 — not listed in this catalogue 9011906A12 — not listed in this catalogue 91551F0845 — not listed in this catalogue 11302J — PIN, STRAIGHT(FOR TIMING CHAIN COVER) (2 parts) 11302J — PIN, STRAIGHT(FOR TIMING CHAIN COVER) (2 parts) 11328 — GASKET, TIMING GEAR OR CHAIN COVER (3 parts) 11328 — GASKET, TIMING GEAR OR CHAIN COVER (3 parts) 11328 — GASKET, TIMING GEAR OR CHAIN COVER (3 parts) 11329A — GASKET, TIMING BELT OR CHAIN COVER, NO.2 (1 parts)
11H65MA · 13 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
13 parts on this figure
Part number Description Fitment Price
11301C — Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-40044 Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
2023-11 → —
A25 AZSH32 ¥470
11302J — Pin, Straight(FOR TIMING CHAIN COVER)
90250-04097 note Pin, Straight(FOR TIMING CHAIN COVER)
2023-11 → —
A25 AZSH32 ¥50
90250-06003 note Pin, Straight(FOR TIMING CHAIN COVER)
2023-11 → —
A25 AZSH32 ¥90
11310 — Cover Assy, Timing Chain
11310-25040 Cover Assy, Timing Chain
2023-11 → —
A25 AZSH32 ¥10,800
11320B — Cover Assy, Timing Chain, NO.2
11320-25020 Cover Assy, Timing Chain, NO.2
2023-11 → —
A25 AZSH32 ¥11,500
11328 — Gasket, Timing Gear OR Chain Cover
11315-25010 note Gasket, Timing Gear OR Chain Cover
2023-11 → —
A25 AZSH32 ¥340
11316-25010 note Gasket, Timing Gear OR Chain Cover
2023-11 → —
A25 AZSH32 ¥340
11328-25020 note Gasket, Timing Gear OR Chain Cover
2023-11 → —
A25 AZSH32 ¥250
11329A — Gasket, Timing Belt OR Chain Cover, NO.2
11329-25010 Gasket, Timing Belt OR Chain Cover, NO.2
2023-11 → —
A25 AZSH32 ¥250
12285 — Bracket, Engine Hanger
12285-25010 Bracket, Engine Hanger
2023-11 → —
A25 AZSH32 ¥2,370
15250A — Valve Assy, Oil Pressure Control
15250-25010 Valve Assy, Oil Pressure Control
2023-11 → —
A25 AZSH32 ¥3,980
15370 — Solenoid Assy, Cam Timing Oil Control
15370-25020 Solenoid Assy, Cam Timing Oil Control
2023-11 → —
A25 AZSH32 ¥5,500
15370A — Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
90301-44006 Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
2023-11 → —
A25 AZSH32 ¥0
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
