Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

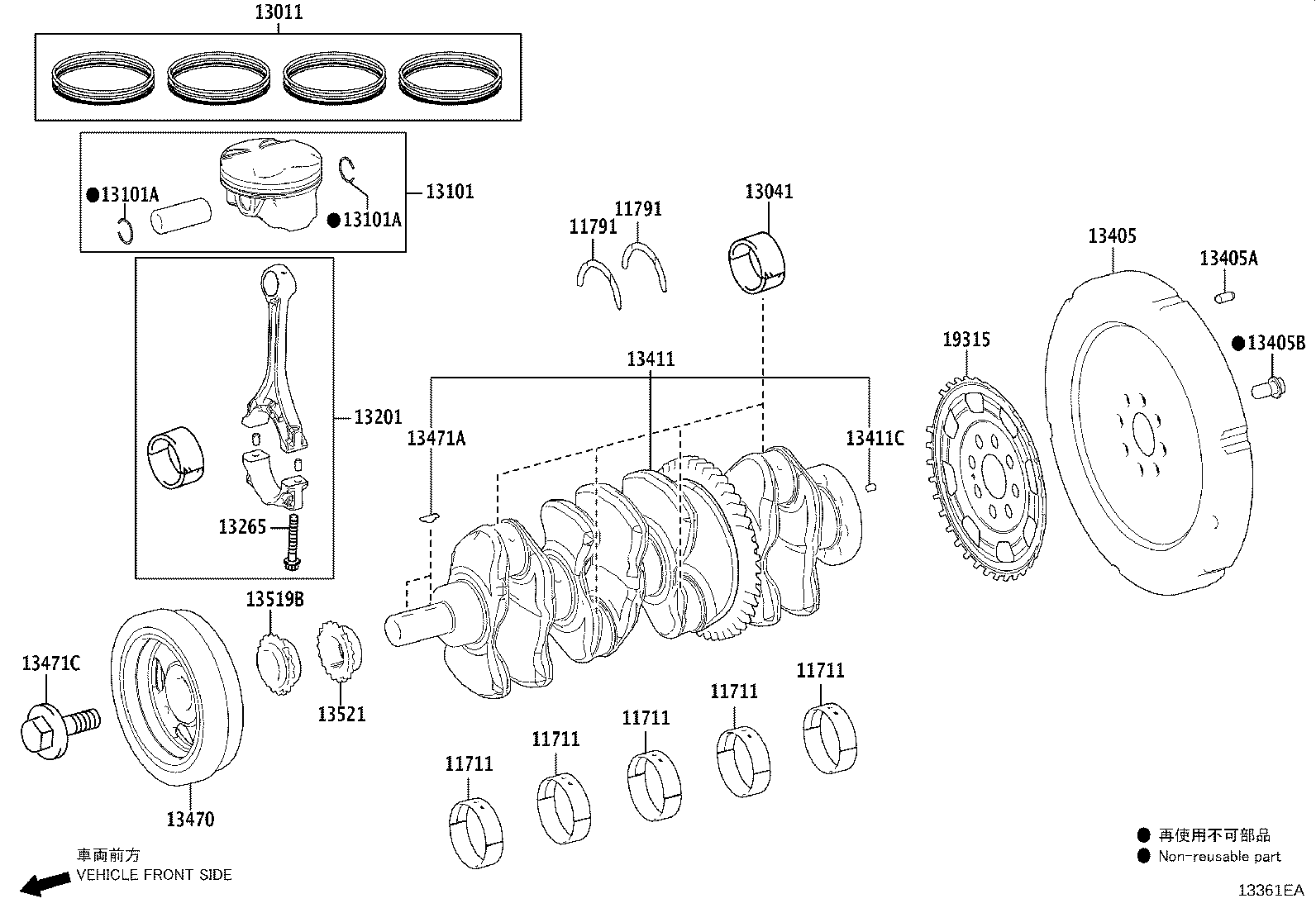

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11711 — Bearing, Crankshaft | ||||
| 11701-25010-01 note |
Bearing, Crankshaft
2023-11 → —
|
A25 AZSH32 | ¥2,110 | |
| 11701-25010-02 note |
Bearing, Crankshaft
2023-11 → —
|
A25 AZSH32 | ¥2,110 | |
| 11701-25010-03 note |
Bearing, Crankshaft
2023-11 → —
|
A25 AZSH32 | ¥2,110 | |
| 11701-25010-04 note |
Bearing, Crankshaft
2023-11 → —
|
A25 AZSH32 | ¥2,110 | |
| 11701-25010-05 note |
Bearing, Crankshaft
2023-11 → —
|
A25 AZSH32 | ¥2,110 | |
| 11791 — Washer, Crankshaft Thrust, Upper | ||||
| 11791-25040 note |
Washer, Crankshaft Thrust, Upper
2023-11 → —
|
A25 AZSH32 | ¥1,740 | |
| 13011 — Ring Set, Piston | ||||
| 13011-25080 note |
Ring Set, Piston
2023-11 → —
|
A25 AZSH32 | ¥12,100 | |
| 13041 — Bearing, Connecting Rod | ||||
| 13041-25020-01 note |
Bearing, Connecting Rod
2023-11 → —
|
A25 AZSH32 | ¥1,380 | |
| 13041-25020-02 note |
Bearing, Connecting Rod
2023-11 → —
|
A25 AZSH32 | ¥1,380 | |
| 13041-25020-03 note |
Bearing, Connecting Rod
2023-11 → —
|
A25 AZSH32 | ¥1,380 | |
| 13101 — Piston Sub-assy, W/Pin | ||||
| 13101-25040 note |
Piston Sub-assy, W/Pin
2023-11 → —
|
A25 AZSH32 | ¥4,320 | |
| 13101A — Ring, Hole Snap(FOR PISTON PIN) | ||||
| 90520-21024 |
Ring, Hole Snap(FOR PISTON PIN)
2023-11 → —
|
A25 AZSH32 | ¥90 | |
| 13201 — Rod Sub-assy, Connecting | ||||
| 13201-29815-A0 note |
Rod Sub-assy, Connecting
2023-11 → —
|
A25 AZSH32 | ¥10,600 | |
| 13201-29815-B0 note |
Rod Sub-assy, Connecting
2023-11 → —
|
A25 AZSH32 | ¥10,600 | |
| 13201-29815-C0 note |
Rod Sub-assy, Connecting
2023-11 → —
|
A25 AZSH32 | ¥10,600 | |
| 13265 — Bolt, Connecting Rod | ||||
| 13265-25020 |
Bolt, Connecting Rod
2023-11 → —
|
A25 AZSH32 | ¥310 | |
| 13405 — Flywheel Sub-assy | ||||
| 13451-25030 |
Flywheel Sub-assy
2023-11 → —
|
A25 AZSH32 | ¥16,100 | |
| 13405A — Pin, Straight(FOR FLYWHEEL) | ||||
| 90250-08120 note |
Pin, Straight(FOR FLYWHEEL)
2023-11 → —
|
A25 AZSH32 | ¥140 | |
| 13405B — Bolt, Flywheel Setting | ||||
| 90105-12404 |
Bolt, Flywheel Setting
2023-11 → —
|
A25 AZSH32 | ¥100 | |
| 13411 — Crankshaft | ||||
| 13401-25020 |
Crankshaft
2023-11 → —
|
A25 AZSH32 | ¥73,600 | |
| 13411C — Pin, Straight(FOR CRANKSHAFT) | ||||
| 90250-06035 |
Pin, Straight(FOR CRANKSHAFT)
2023-11 → —
|
A25 AZSH32 | ¥70 | |
| 13470 — Pulley Assy, Crankshaft | ||||
| 13470-25080 |
Pulley Assy, Crankshaft
2023-11 → —
|
A25 AZSH32 | ¥5,900 | |
| 13471A — Key, Crankshaft(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-04001 |
Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
2023-11 → —
|
A25 AZSH32 | ¥80 | |
| 13471C — Bolt(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-16020 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2023-11 → —
|
A25 AZSH32 | ¥490 | |
| 13519B — Sprocket, Oil Pump Drive | ||||
| 13519-25020 |
Sprocket, Oil Pump Drive
2023-11 → —
|
A25 AZSH32 | ¥2,080 | |
| 13521 — Gear OR Sprocket, Crankshaft Timing | ||||
| 13521-25010 |
Gear OR Sprocket, Crankshaft Timing
2023-11 → —
|
A25 AZSH32 | ¥800 | |
| 19315 — Plate, Crank Angle Sensor, NO.1 | ||||
| 19315-25011 |
Plate, Crank Angle Sensor, NO.1
2023-11 → —
|
A25 AZSH32 | ¥2,810 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
