Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11

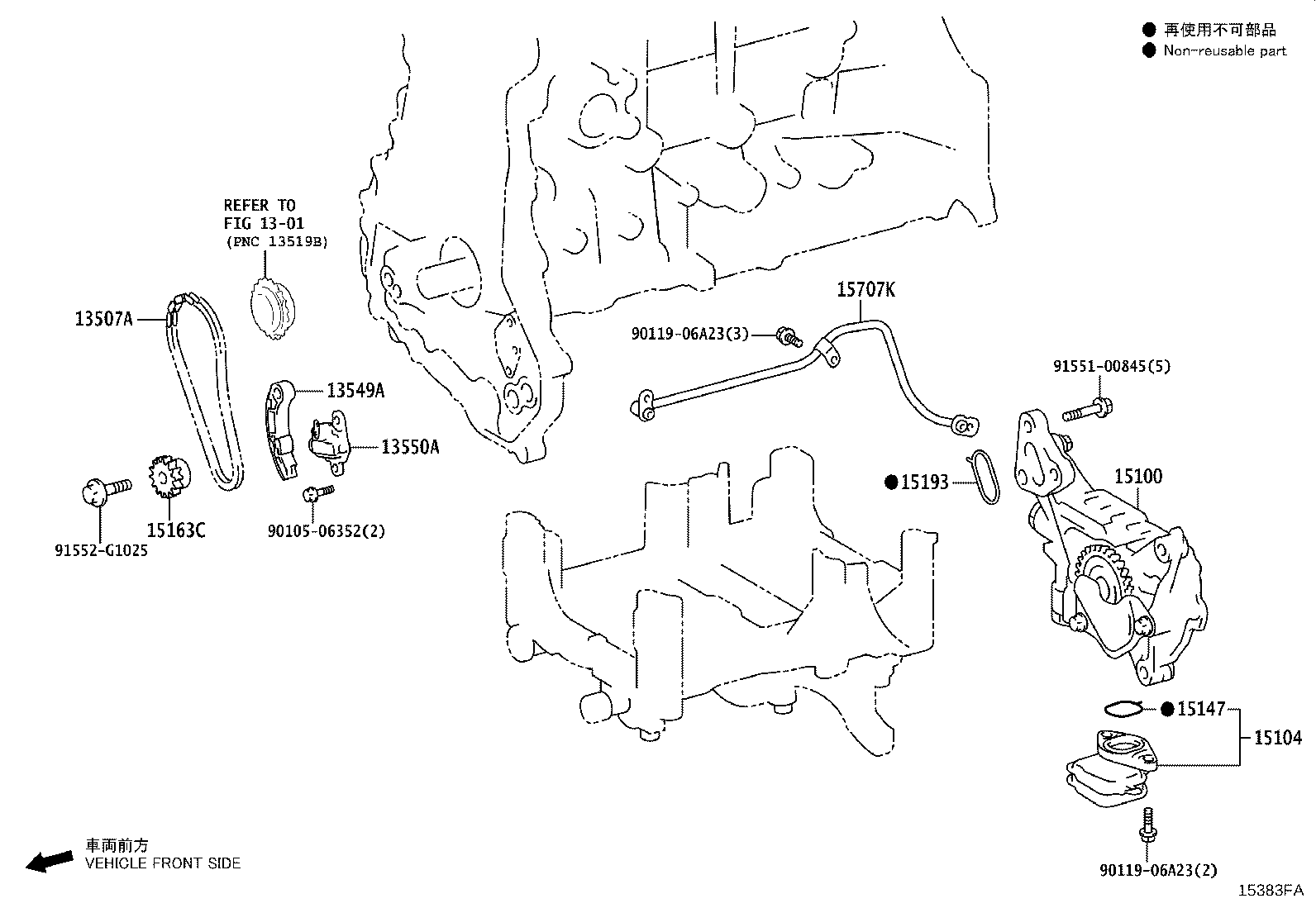

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

9 parts on this figure

Part number	Description	Fitment	Price
13507A — Chain Sub-assy, Oil Pump Drive
13507-25021	Chain Sub-assy, Oil Pump Drive 2023-11 → —	A25 AZSH32	¥5,100
13549A — Plate, Chain Tensioner
13549-25030	Plate, Chain Tensioner 2023-11 → —	A25 AZSH32	¥1,320
13550A — Tensioner Assy, Chain, NO.2
13550-25020	Tensioner Assy, Chain, NO.2 2023-11 → —	A25 AZSH32	¥6,600
15100 — Pump Assy, Oil
15100-25050	Pump Assy, Oil 2023-11 → —	A25 AZSH32	¥12,600
15104 — Strainer Sub-assy, Oil
15104-25070	Strainer Sub-assy, Oil 2023-11 → —	A25 AZSH32	¥1,160
15147 — Gasket, Oil Strainer
15147-25020	Gasket, Oil Strainer 2023-11 → —	A25 AZSH32	¥340
15163C — Sprocket, Oil Pump Drive Shaft
15163-25020	Sprocket, Oil Pump Drive Shaft 2023-11 → —	A25 AZSH32	¥780
15193 — Gasket, Oil Pump
15193-25010	Gasket, Oil Pump 2023-11 → —	A25 AZSH32	¥340
15707K — Pipe Sub-assy, Oil
15707-25011	Pipe Sub-assy, Oil 2023-11 → —	A25 AZSH32	¥2,430

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
