Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

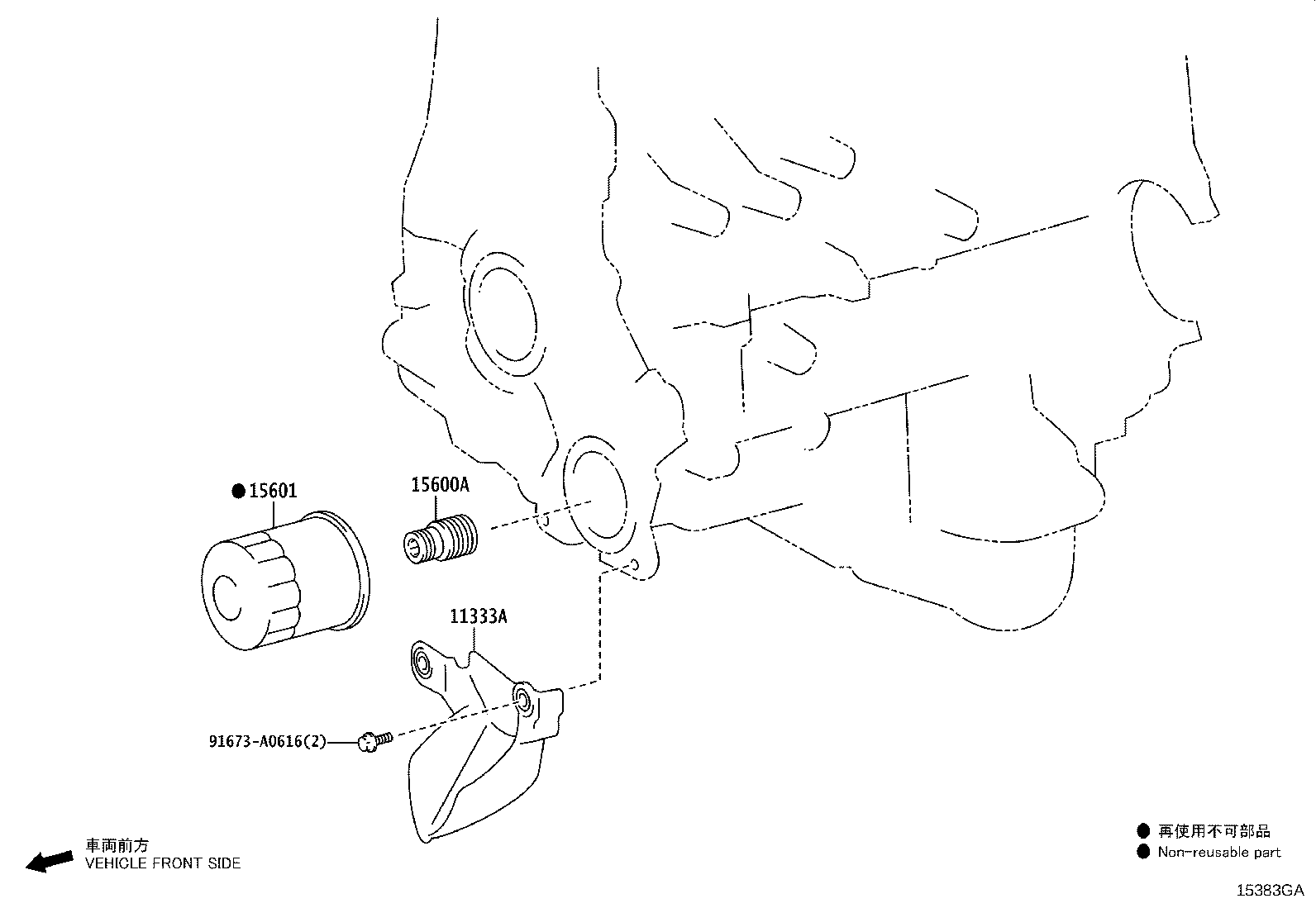

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11333A — Plate, Timing Chain Cover Oil Catch | ||||
| 11333-25010 |
Plate, Timing Chain Cover Oil Catch
2023-11 → —
|
A25 AZSH32 | ¥1,400 | |
| 15600A — Union(FOR OIL FILTER) | ||||
| 90904-04006 |
Union(FOR OIL FILTER)
2023-11 → —
|
A25 AZSH32 | ¥450 | |
| 15601 — Filter Sub-assy, Oil | ||||
| 90915-10009 |
Filter Sub-assy, Oil
2023-11 → —
|
A25 AZSH32 | ¥1,050 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
