Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

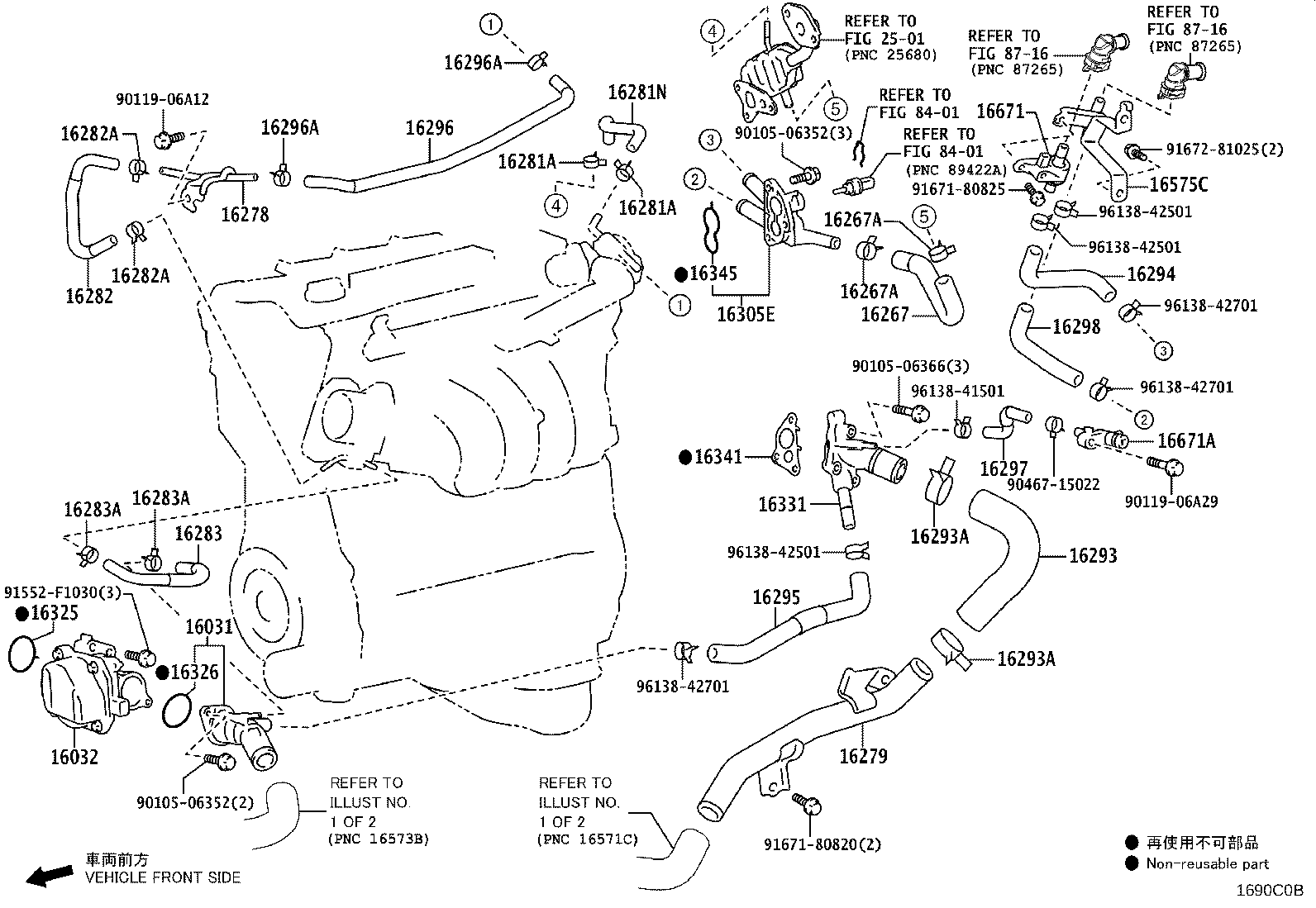

Exploded illustration 1690C0B 16267 — HOSE, WATER BY-PASS, NO.3 (1 parts) 16278 — PIPE, WATER BY-PASS, NO.2 (1 parts) 16279 — PIPE, WATER BY-PASS, NO.3 (1 parts) 16281N — HOSE, WATER BY-PASS, NO.4 (1 parts) 16282 — HOSE, WATER BY-PASS, NO.5 (1 parts) 16283 — HOSE, WATER BY-PASS, NO.6 (1 parts) 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (1 parts) 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (1 parts) 16282A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) (1 parts) 16282A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) (1 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (1 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (1 parts) 16296A — CLIP(FOR WATER BY-PASS HOSE NO.8) (1 parts) 16296A — CLIP(FOR WATER BY-PASS HOSE NO.8) (1 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (1 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (1 parts) 16293 — HOSE, WATER BY-PASS, NO.10 (1 parts) 16293A — CLIP(FOR WATER BY-PASS HOSE NO.10) (1 parts) 16293A — CLIP(FOR WATER BY-PASS HOSE NO.10) (1 parts) 16295 — HOSE, WATER BY-PASS, NO.7 (1 parts) 16296 — HOSE, WATER BY-PASS, NO.8 (1 parts) 16297 — HOSE, WATER BY-PASS, NO.9 (1 parts) 16305E — OUTLET SUB-ASSY, WATER BY-PASS (1 parts) 16345 — GASKET, WATER OUTLET PIPE (1 parts) 16331 — OUTLET, WATER (1 parts) 16341 — GASKET, WATER OUTLET (1 parts) 16032 — HOUSING SUB-ASSY, WATER INLET W/WATER PUMP (1 parts) 16325 — GASKET, WATER INLET HOUSING, NO.1 (1 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 9613842501 — not listed in this catalogue 9613842501 — not listed in this catalogue 9167281025 — not listed in this catalogue 9167180825 — not listed in this catalogue 9613842701 — not listed in this catalogue 9613842701 — not listed in this catalogue 9167180820 — not listed in this catalogue 9046715022 — not listed in this catalogue 9011906A12 — not listed in this catalogue 9011906A29 — not listed in this catalogue 9613841501 — not listed in this catalogue 9613842501 — not listed in this catalogue 9613842701 — not listed in this catalogue 9010506352 — not listed in this catalogue 9010506366 — not listed in this catalogue 9010506352 — not listed in this catalogue 91552F1030 — not listed in this catalogue 16671A — VALVE, WATER, NO.2 (1 parts) 16671 — VALVE, WATER (1 parts) 16294 — HOSE, WATER BY-PASS, NO.11 (1 parts) 16298 — HOSE, WATER BY-PASS, NO.12 (1 parts) 16575C — BRACKET, WATER HOSE CLAMP, NO.1 (1 parts) 2501 — not listed in this catalogue 8716 — not listed in this catalogue 8716 — not listed in this catalogue 16031 — WATER INLET SUB-ASSY, W/THERMOSTAT (1 parts) 16326 — GASKET, WATER INLET HOUSING, NO.2 (1 parts)
1690C0B · 35 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
29 parts on this figure
Part number Description Fitment Price
16031 — Water Inlet Sub-assy, W/Thermostat
16031-25021 Water Inlet Sub-assy, W/Thermostat
2023-11 → —
A25 AZSH32 ¥3,600
16032 — Housing Sub-assy, Water Inlet W/Water Pump
16032-25020 Housing Sub-assy, Water Inlet W/Water Pump
2023-11 → —
A25 AZSH32 ¥17,900
16267 — Hose, Water By-pass, NO.3
16267-25040 Hose, Water By-pass, NO.3
2023-11 → —
A25 AZSH32 ¥540
16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
96138-42101 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2023-11 → —
A25 AZSH32 ¥160
16278 — Pipe, Water By-pass, NO.2
16278-25040 Pipe, Water By-pass, NO.2
2023-11 → —
A25 AZSH32 ¥1,010
16279 — Pipe, Water By-pass, NO.3
16279-25031 Pipe, Water By-pass, NO.3
2023-11 → —
A25 AZSH32 ¥5,700
16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
96138-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2023-11 → —
A25 AZSH32 ¥120
16281N — Hose, Water By-pass, NO.4
99555-10200 Hose, Water By-pass, NO.4
2023-11 → —
A25 AZSH32 ¥320
16282 — Hose, Water By-pass, NO.5
16282-25060 Hose, Water By-pass, NO.5
2023-11 → —
A25 AZSH32 ¥350
16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
96138-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2023-11 → —
A25 AZSH32 ¥120
16283 — Hose, Water By-pass, NO.6
16283-25040 Hose, Water By-pass, NO.6
2023-11 → —
A25 AZSH32 ¥350
16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
96138-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2023-11 → —
A25 AZSH32 ¥120
16293 — Hose, Water By-pass, NO.10
16293-25010 Hose, Water By-pass, NO.10
2023-11 → —
A25 AZSH32 ¥1,010
16293A — Clip(FOR WATER BY-PASS HOSE NO.10)
96136-44301 Clip(FOR WATER BY-PASS HOSE NO.10)
2023-11 → —
A25 AZSH32 ¥310
16294 — Hose, Water By-pass, NO.11
16294-25010 Hose, Water By-pass, NO.11
2023-11 → —
A25 AZSH32 ¥790
16295 — Hose, Water By-pass, NO.7
16295-25030 Hose, Water By-pass, NO.7
2023-11 → —
A25 AZSH32 ¥1,010
16296 — Hose, Water By-pass, NO.8
16296-25030 Hose, Water By-pass, NO.8
2023-11 → —
A25 AZSH32 ¥790
16296A — Clip(FOR WATER BY-PASS HOSE NO.8)
96138-41501 Clip(FOR WATER BY-PASS HOSE NO.8)
2023-11 → —
A25 AZSH32 ¥120
16297 — Hose, Water By-pass, NO.9
16297-25030 Hose, Water By-pass, NO.9
2023-11 → —
A25 AZSH32 ¥350
16298 — Hose, Water By-pass, NO.12
16298-25020 Hose, Water By-pass, NO.12
2023-11 → —
A25 AZSH32 ¥540
16305E — Outlet Sub-assy, Water By-pass
16305-25040 Outlet Sub-assy, Water By-pass
2023-11 → —
A25 AZSH32 ¥1,880
16325 — Gasket, Water Inlet Housing, NO.1
16325-25010 Gasket, Water Inlet Housing, NO.1
2023-11 → —
A25 AZSH32 ¥270
16326 — Gasket, Water Inlet Housing, NO.2
16326-47020 Gasket, Water Inlet Housing, NO.2
2023-11 → —
A25 AZSH32 ¥70
16331 — Outlet, Water
16331-25040 Outlet, Water
2023-11 → —
A25 AZSH32 ¥3,440
16341 — Gasket, Water Outlet
16341-25010 Gasket, Water Outlet
2023-11 → —
A25 AZSH32 ¥190
16345 — Gasket, Water Outlet Pipe
16345-24010 Gasket, Water Outlet Pipe
2023-11 → —
A25 AZSH32 ¥340
16575C — Bracket, Water Hose Clamp, NO.1
16575-25060 Bracket, Water Hose Clamp, NO.1
2023-11 → —
A25 AZSH32 ¥1,320
16671 — Valve, Water
16671-25070 Valve, Water
2023-11 → —
A25 AZSH32 ¥5,200
16671A — Valve, Water, NO.2
16671-47010 Valve, Water, NO.2
2023-11 → —
A25 AZSH32 ¥1,410
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
