Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

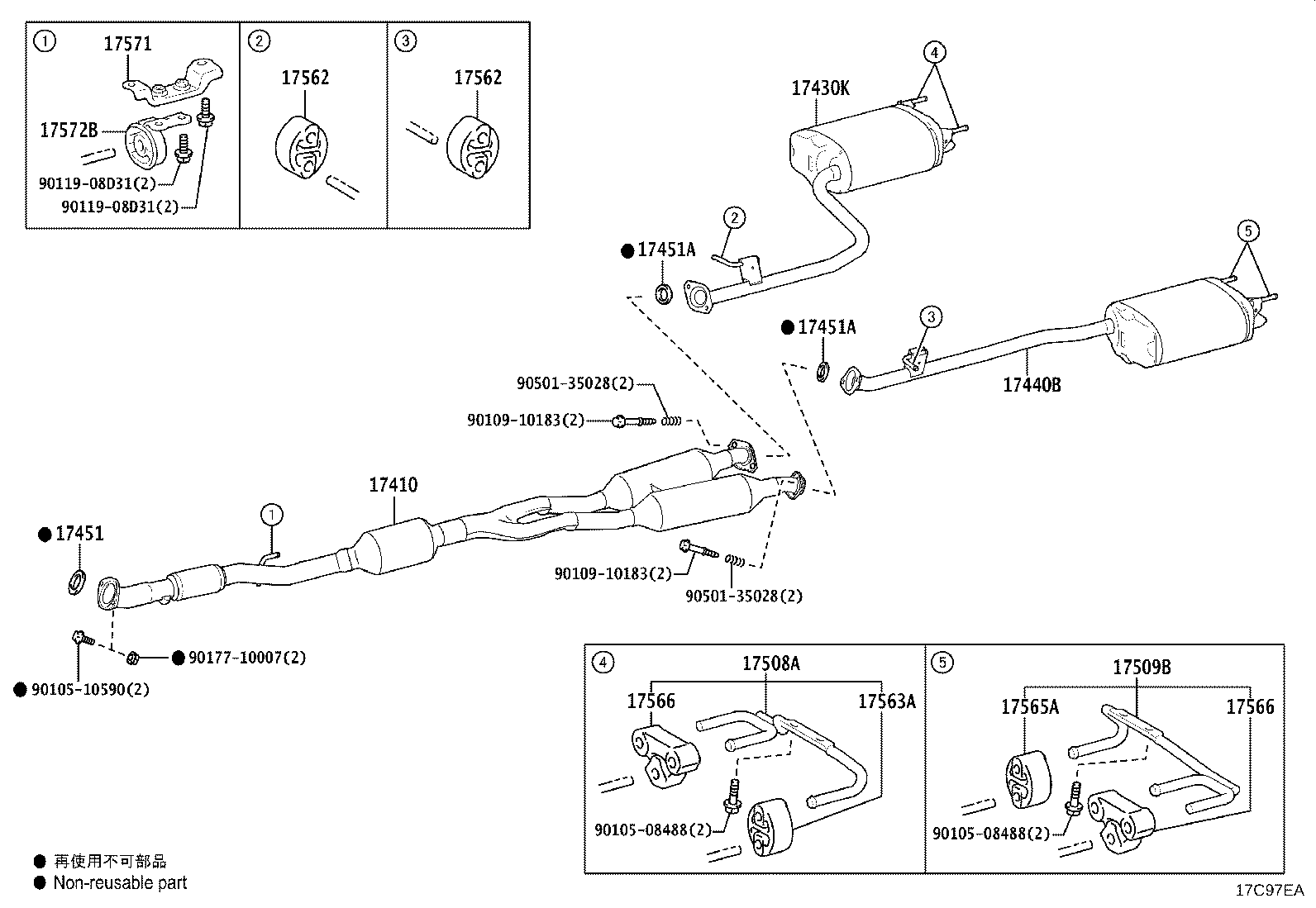

Exploded illustration 17C97EA 9011908D31 — not listed in this catalogue 9011908D31 — not listed in this catalogue 9010910183 — not listed in this catalogue 9050135028 — not listed in this catalogue 17440B — PIPE ASSY, EXHAUST TAIL, LH (1 parts) 17430K — PIPE ASSY, EXHAUST TAIL, RH (1 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (1 parts) 17451 — GASKET, EXHAUST PIPE (1 parts) 17451A — GASKET, EXHAUST PIPE, NO.2 (1 parts) 17451A — GASKET, EXHAUST PIPE, NO.2 (1 parts) 9017710007 — not listed in this catalogue 9010510590 — not listed in this catalogue 9010508488 — not listed in this catalogue 9010508488 — not listed in this catalogue 17508A — BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT (1 parts) 17509B — SUPPORT, EXHAUST PIPE NO.4 (1 parts) 17566 — BRACKET, TAILPIPE, REAR (1 parts) 17566 — BRACKET, TAILPIPE, REAR (1 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (1 parts) 17563A — SUPPORT, EXHAUST PIPE, NO.3 (1 parts) 17562 — SUPPORT, EXHAUST PIPE, NO.2 (1 parts) 17562 — SUPPORT, EXHAUST PIPE, NO.2 (1 parts) 17571 — BRACKET, EXHAUST PIPE SUPPORT, NO.1 (1 parts) 17572B — BRACKET, EXHAUST PIPE SUPPORT, NO.2 (1 parts) 9010910183 — not listed in this catalogue 9050135028 — not listed in this catalogue
17C97EA · 16 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
13 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17410-25A20 Pipe Assy, Exhaust, Front
2023-11 → —
A25 AZSH32 ¥90,000
17430K — Pipe Assy, Exhaust Tail, RH
17430-25500 Pipe Assy, Exhaust Tail, RH
2023-11 → —
A25 AZSH32 ¥23,800
17440B — Pipe Assy, Exhaust Tail, LH
17440-25150 Pipe Assy, Exhaust Tail, LH
2023-11 → —
A25 AZSH32 ¥23,800
17451 — Gasket, Exhaust Pipe
90917-06078 Gasket, Exhaust Pipe
2023-11 → —
A25 AZSH32 ¥340
17451A — Gasket, Exhaust Pipe, NO.2
17451-23043 Gasket, Exhaust Pipe, NO.2
2023-11 → —
A25 AZSH32 ¥720
17508A — Bracket Sub-assy, Exhaust Pipe NO.3 Support
17508-25030 Bracket Sub-assy, Exhaust Pipe NO.3 Support
2023-11 → —
A25 AZSH32 ¥1,890
17509B — Support, Exhaust Pipe NO.4
17509-25020 Support, Exhaust Pipe NO.4
2023-11 → —
A25 AZSH32 ¥1,890
17562 — Support, Exhaust Pipe, NO.2
17565-28010 Support, Exhaust Pipe, NO.2
2023-11 → —
A25 AZSH32 ¥670
17563A — Support, Exhaust Pipe, NO.3
17565-22040 Support, Exhaust Pipe, NO.3
2023-11 → —
A25 AZSH32 ¥670
17565A — Support, Exhaust Pipe, NO.4
17565-22040 Support, Exhaust Pipe, NO.4
2023-11 → —
A25 AZSH32 ¥670
17566 — Bracket, Tailpipe, Rear
17566-25010 Bracket, Tailpipe, Rear
2023-11 → —
A25 AZSH32 ¥990
17571 — Bracket, Exhaust Pipe Support, NO.1
17571-25130 Bracket, Exhaust Pipe Support, NO.1
2023-11 → —
A25 AZSH32 ¥480
17572B — Bracket, Exhaust Pipe Support, NO.2
17572-25070 Bracket, Exhaust Pipe Support, NO.2
2023-11 → —
A25 AZSH32 ¥660
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
