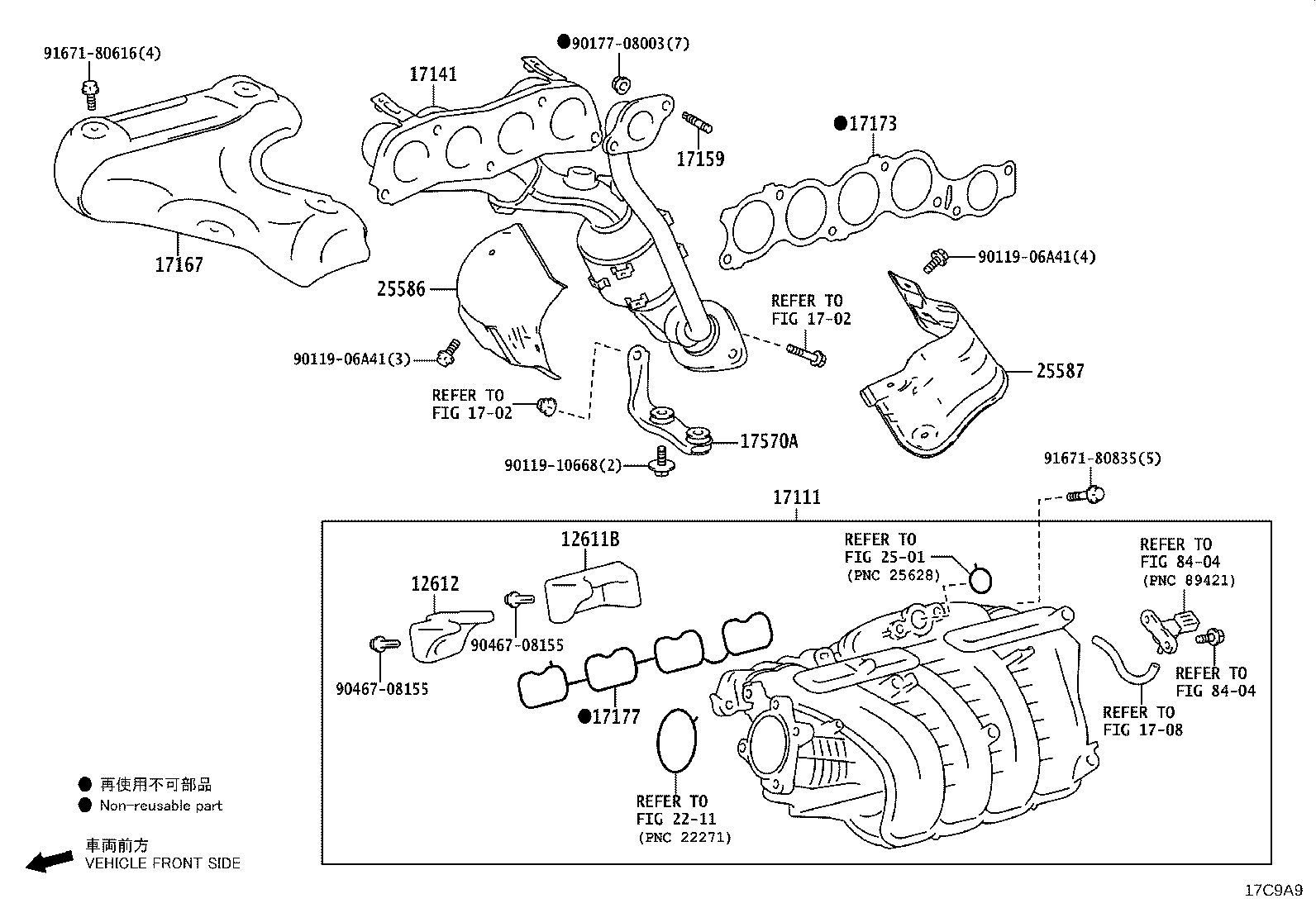

Exploded illustration 17C9A9 8404 — not listed in this catalogue 2501 — not listed in this catalogue 2211 — not listed in this catalogue 8404 — not listed in this catalogue 1708 — not listed in this catalogue 12611B — COVER, ENGINE, NO.1 (1 parts) 12612 — COVER, ENGINE, NO.2 (1 parts) 17111 — MANIFOLD, INTAKE (1 parts) 17141 — MANIFOLD, EXHAUST (1 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (1 parts) 17167 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 (1 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (1 parts) 17177 — GASKET, INTAKE MANIFOLD TO HEAD, NO.1 (1 parts) 17570A — BRACKET ASSY, EXHAUST PIPE SUPPORT (1 parts) 25586 — INSULATOR, MANIFOLD CONVERTER, NO.1 (1 parts) 25587 — INSULATOR, MANIFOLD CONVERTER, NO.2 (1 parts) 9011906A41 — not listed in this catalogue 9011906A41 — not listed in this catalogue 9011910668 — not listed in this catalogue 9017708003 — not listed in this catalogue 9046708155 — not listed in this catalogue 9046708155 — not listed in this catalogue 9167180616 — not listed in this catalogue 9167180835 — not listed in this catalogue 1702 — not listed in this catalogue 1702 — not listed in this catalogue
17C9A9 · 11 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
11 parts on this figure
Part number Description Fitment Price
12611B — Cover, Engine, NO.1
12613-25030 Cover, Engine, NO.1
2023-11 → —
A25 AZSH32 ¥1,700
12612 — Cover, Engine, NO.2
12614-25010 Cover, Engine, NO.2
2023-11 → —
A25 AZSH32 ¥1,050
17111 — Manifold, Intake
17120-25040 Manifold, Intake
2023-11 → —
A25 AZSH32 ¥26,500
17141 — Manifold, Exhaust
17141-25810 Manifold, Exhaust
2023-11 → —
A25 AZSH32 ¥80,800
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2023-11 → —
A25 AZSH32 ¥80
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-25020 Insulator, Exhaust Manifold Heat, NO.1
2023-11 → —
A25 AZSH32 ¥2,490
17173 — Gasket, Exhaust Manifold TO Head
17173-25020 Gasket, Exhaust Manifold TO Head
2023-11 → —
A25 AZSH32 ¥1,060
17177 — Gasket, Intake Manifold TO Head, NO.1
17171-25010 Gasket, Intake Manifold TO Head, NO.1
2023-11 → —
A25 AZSH32 ¥820
17570A — Bracket Assy, Exhaust Pipe Support
17570-25030 Bracket Assy, Exhaust Pipe Support
2023-11 → —
A25 AZSH32 ¥1,050
25586 — Insulator, Manifold Converter, NO.1
25586-25030 Insulator, Manifold Converter, NO.1
2023-11 → —
A25 AZSH32 ¥1,530
25587 — Insulator, Manifold Converter, NO.2
25587-25030 Insulator, Manifold Converter, NO.2
2023-11 → —
A25 AZSH32 ¥1,570
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
