Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

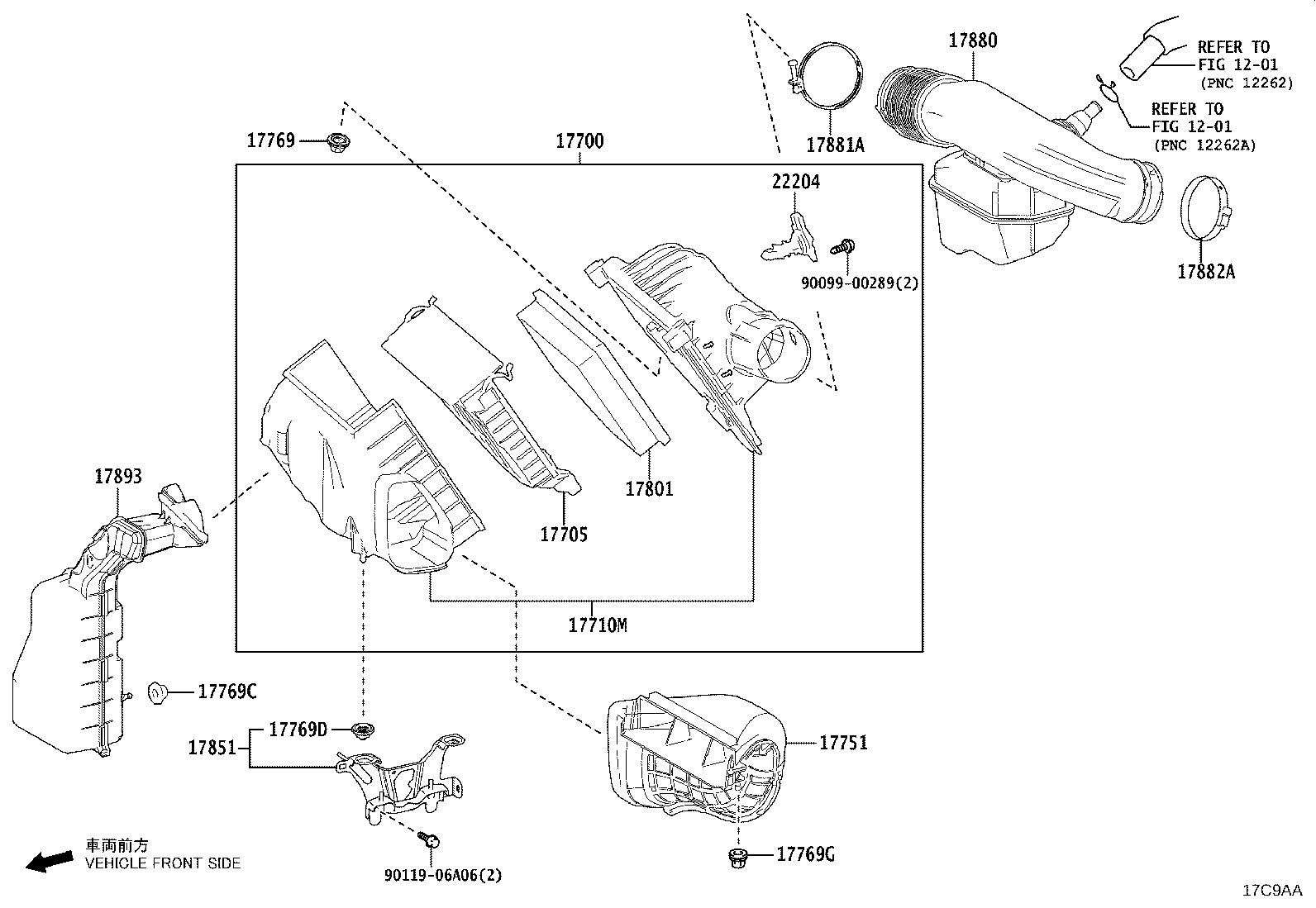

Exploded illustration 17C9AA 17769C — SUPPORT, AIR CLEANER, NO.1 (1 parts) 17769 — SUPPORT, AIR CLEANER (1 parts) 1201 — not listed in this catalogue 1201 — not listed in this catalogue 17700 — CLEANER ASSY, AIR (1 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (1 parts) 17710M — CLEANER ASSY, AIR (WITHOUT ELEMENT) (1 parts) 17751 — INLET, AIR CLEANER, NO.1 (1 parts) 17769G — SUPPORT, AIR CLEANER, NO.3 (1 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (1 parts) 17880 — HOSE ASSY, AIR CLEANER (1 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (1 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (1 parts) 17893 — RESONATOR, INTAKE AIR (1 parts) 22204 — METER SUB-ASSY, INTAKE AIR FLOW (1 parts) 9009900289 — not listed in this catalogue 9011906A06 — not listed in this catalogue 17851 — BRACKET, AIR CLEANER SUPPORT (1 parts) 17769D — SUPPORT, AIR CLEANER, NO.2 (1 parts)
17C9AA · 15 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
15 parts on this figure
Part number Description Fitment Price
17700 — Cleaner Assy, Air
17700-25120 Cleaner Assy, Air
2023-11 → —
A25 AZSH32 ¥15,700
17705 — Cap Sub-assy, Air Cleaner
17705-25140 Cap Sub-assy, Air Cleaner
2023-11 → —
A25 AZSH32 ¥0
17710M — Cleaner Assy, Air (WITHOUT ELEMENT)
17710-25010 Cleaner Assy, Air (WITHOUT ELEMENT)
2023-11 → —
A25 AZSH32 —
17751 — Inlet, Air Cleaner, NO.1
17751-25080 Inlet, Air Cleaner, NO.1
2023-11 → —
A25 AZSH32 ¥4,020
17769 — Support, Air Cleaner
17769-25010 Support, Air Cleaner
2023-11 → —
A25 AZSH32 ¥170
17769C — Support, Air Cleaner, NO.1
17769-25010 Support, Air Cleaner, NO.1
2023-11 → —
A25 AZSH32 ¥170
17769D — Support, Air Cleaner, NO.2
17769-25010 Support, Air Cleaner, NO.2
2023-11 → —
A25 AZSH32 ¥170
17769G — Support, Air Cleaner, NO.3
17769-25040 Support, Air Cleaner, NO.3
2023-11 → —
A25 AZSH32 ¥170
17801 — Element Sub-assy, Air Cleaner Filter
17801-31150 Element Sub-assy, Air Cleaner Filter
2023-11 → —
A25 AZSH32 ¥3,700
17851 — Bracket, Air Cleaner Support
17850-38010 Bracket, Air Cleaner Support
2023-11 → —
A25 AZSH32 ¥1,170
17880 — Hose Assy, Air Cleaner
17880-25030 Hose Assy, Air Cleaner
2023-11 → —
A25 AZSH32 ¥3,910
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10850 Clamp(FOR AIR CLEANER HOSE, NO.1)
2023-11 → —
A25 AZSH32 ¥240
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
17891-31010 Clamp(FOR AIR CLEANER HOSE, NO.2)
2023-11 → —
A25 AZSH32 ¥710
17893 — Resonator, Intake Air
17893-25120 Resonator, Intake Air
2023-11 → —
A25 AZSH32 ¥3,110
22204 — Meter Sub-assy, Intake Air Flow
22204-75040 Meter Sub-assy, Intake Air Flow
2023-11 → —
A25 AZSH32 ¥9,400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
