Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

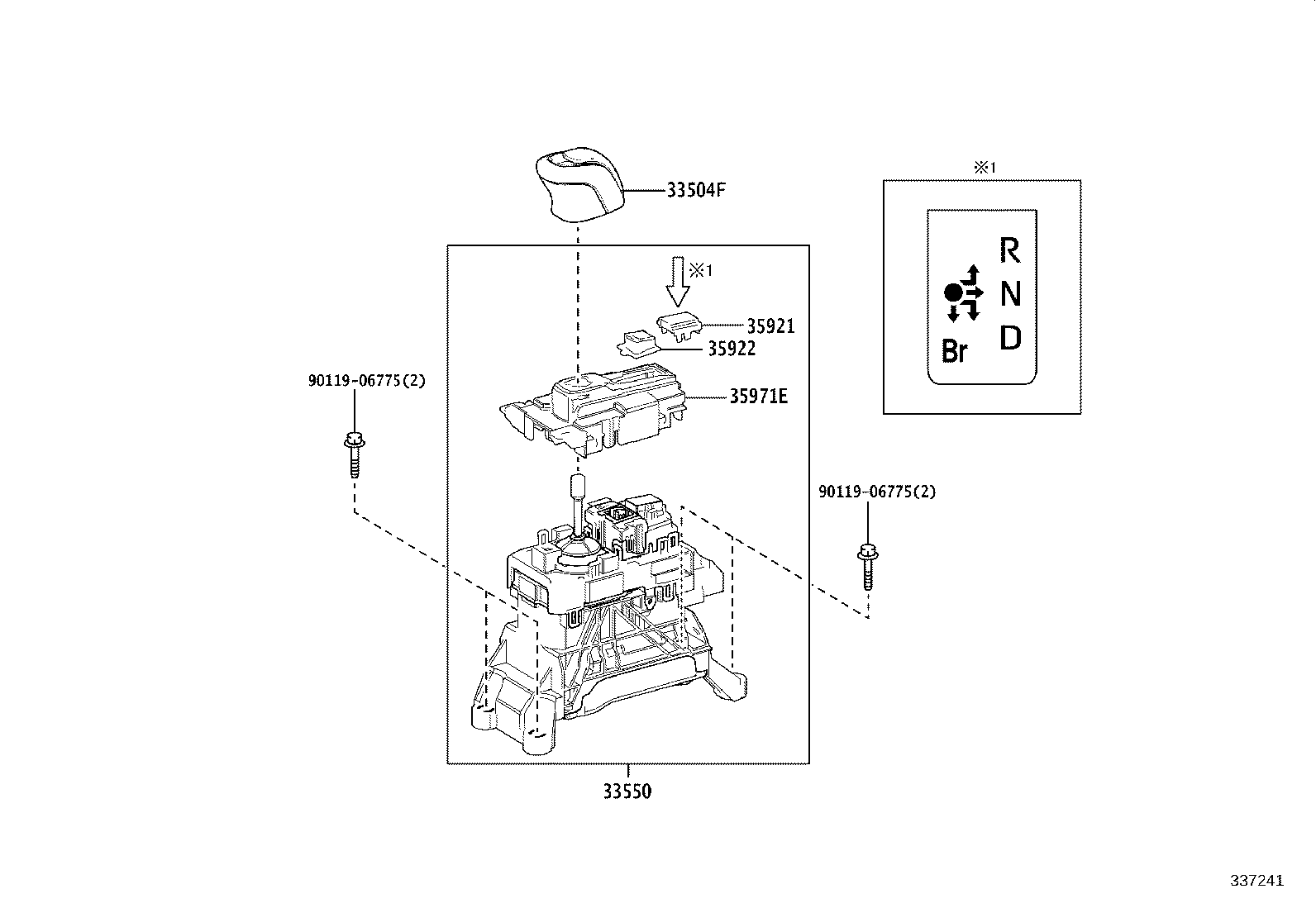

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33504F — Knob Sub-assy, Shift Lever | ||||
| 33504-30640-C0 note |
Knob Sub-assy, Shift Lever
2023-11 → —
|
AZSH32,KZSM30 Z | ¥4,360 | |
| 33504-30640-C0 note |
Knob Sub-assy, Shift Lever
2023-11 → —
|
AZSH32 G | ¥4,360 | |
| 33550 — Floor Shift Assy, Transmission | ||||
| 33550-30E50 |
Floor Shift Assy, Transmission
2023-11 → —
|
KZSM30 | — | |
| 33550-30E60 |
Floor Shift Assy, Transmission
2023-11 → —
|
AZSH32 | ¥28,200 | |
| 35921 — Plate, Control Position Indicator | ||||
| 35921-30560 |
Plate, Control Position Indicator
2023-11 → —
|
AZSH32 | ¥1,270 | |
| 35921-30590 |
Plate, Control Position Indicator
2023-11 → —
|
KZSM30 | — | |
| 35922 — Knob, Transmission Parking Switch | ||||
| 35922-30030 |
Knob, Transmission Parking Switch
2023-11 → —
|
AZSH32,KZSM30 | ¥460 | |
| 35971E — Housing, Position Indicator | ||||
| 35971-30600 |
Housing, Position Indicator
2023-11 → —
|
AZSH32,KZSM30 | ¥1,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
