Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

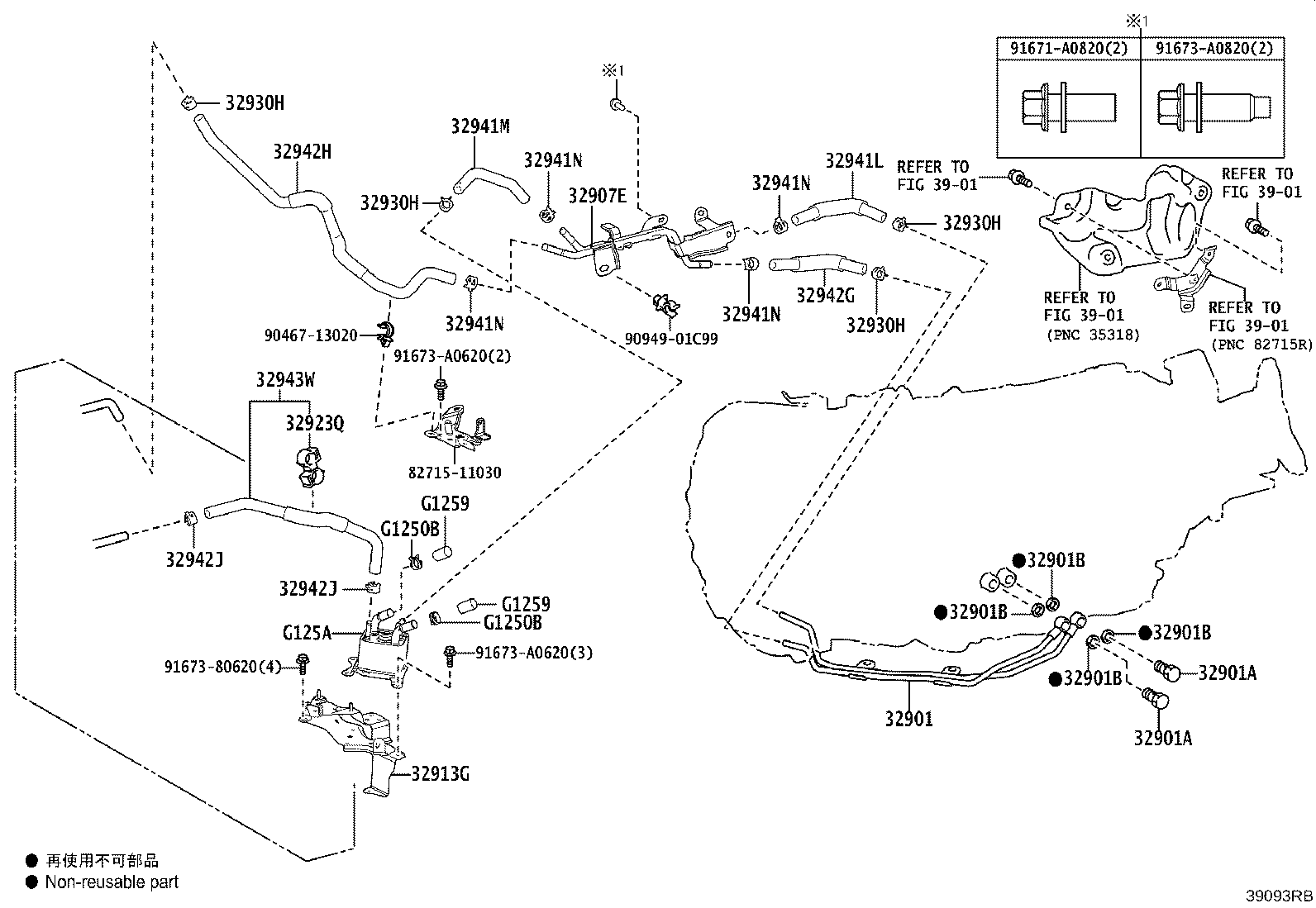

Exploded illustration 39093RB 32913G — BRACKET, TRANSMISSION OIL COOLER (2 parts) 32901 — UNION SUB-ASSY, OIL COOLER (1 parts) 32901A — BOLT, UNION(FOR OIL COOLER) (1 parts) 32901A — BOLT, UNION(FOR OIL COOLER) (1 parts) 32901B — GASKET(FOR OIL COOLER UNION) (1 parts) 32901B — GASKET(FOR OIL COOLER UNION) (1 parts) 32901B — GASKET(FOR OIL COOLER UNION) (1 parts) 32901B — GASKET(FOR OIL COOLER UNION) (1 parts) 32943W — HOSE, TRANSMISSION OIL COOLER (2 parts) 32923Q — CLAMP, OIL COOLER TUBE (1 parts) 32941L — HOSE, OIL COOLER INLET, NO.1 (2 parts) 32942G — HOSE, OIL COOLER OUTLET, NO.1 (2 parts) 32941M — HOSE, OIL COOLER INLET, NO.2 (2 parts) 32942H — HOSE, OIL COOLER OUTLET, NO.2 (2 parts) 32907E — TUBE SUB-ASSY, OIL COOLER W/O HOSE (2 parts) G125A — COOLER, MOTOR COOLING (1 parts) 91673A0620 — not listed in this catalogue 91673A0820 — not listed in this catalogue 91671A0820 — not listed in this catalogue 9046713020 — not listed in this catalogue 9167380620 — not listed in this catalogue 91673A0620 — not listed in this catalogue 8271511030 — not listed in this catalogue G1259 — RUBBER, MOTOR COOLING PIPE (1 parts) G1259 — RUBBER, MOTOR COOLING PIPE (1 parts) G1250B — CLIP, NO.1(FOR MOTOR COOLING PIPE) (1 parts) G1250B — CLIP, NO.1(FOR MOTOR COOLING PIPE) (1 parts) 32941N — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32941N — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32941N — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32941N — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 3901 — not listed in this catalogue 3901 — not listed in this catalogue 3901 — not listed in this catalogue 3901 — not listed in this catalogue 32930H — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32930H — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32930H — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32930H — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32942J — CLIP, NO.2(FOR OIL COOLER HOSE) (1 parts) 32942J — CLIP, NO.2(FOR OIL COOLER HOSE) (1 parts) 9094901C99 — not listed in this catalogue
39093RB · 30 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
32901 — Union Sub-assy, Oil Cooler
32901-30030 Union Sub-assy, Oil Cooler
2023-11 → —
AZSH32 —
32901A — Bolt, Union(FOR OIL COOLER)
90401-14003 Bolt, Union(FOR OIL COOLER)
2023-11 → —
AZSH32 ¥370
32901B — Gasket(FOR OIL COOLER UNION)
90430-14013 Gasket(FOR OIL COOLER UNION)
2023-11 → —
AZSH32 ¥80
32907E — Tube Sub-assy, Oil Cooler W/O Hose
32906-62030 Tube Sub-assy, Oil Cooler W/O Hose
2023-11 → —
KZSM30 ¥2,600
32907-30150 Tube Sub-assy, Oil Cooler W/O Hose
2023-11 → —
AZSH32 —
32913G — Bracket, Transmission Oil Cooler
32913-11010 Bracket, Transmission Oil Cooler
2023-11 → —
AZSH32 ¥3,200
32913-62020 Bracket, Transmission Oil Cooler
2023-11 → —
KZSM30 ¥5,000
32923Q — Clamp, Oil Cooler Tube
32923-50110 Clamp, Oil Cooler Tube
2023-11 → —
AZSH32 ¥410
32930H — Clip, NO.1(FOR OIL COOLER HOSE)
90466-16004 Clip, NO.1(FOR OIL COOLER HOSE)
2023-11 → —
AZSH32 ¥180
90466-16004 Clip, NO.1(FOR OIL COOLER HOSE)
2023-11 → —
KZSM30 ¥180
32941L — Hose, Oil Cooler Inlet, NO.1
32941-11010 Hose, Oil Cooler Inlet, NO.1
2023-11 → —
AZSH32 ¥1,080
32941-62010 Hose, Oil Cooler Inlet, NO.1
2023-11 → —
KZSM30 ¥1,160
32941M — Hose, Oil Cooler Inlet, NO.2
32941-11020 Hose, Oil Cooler Inlet, NO.2
2023-11 → —
AZSH32 ¥980
32941-62040 Hose, Oil Cooler Inlet, NO.2
2023-11 → —
KZSM30 ¥620
32941N — Clip, NO.1(FOR OIL COOLER HOSE)
90466-16004 Clip, NO.1(FOR OIL COOLER HOSE)
2023-11 → —
KZSM30 ¥180
90466-16004 Clip, NO.1(FOR OIL COOLER HOSE)
2023-11 → —
AZSH32 ¥180
32942G — Hose, Oil Cooler Outlet, NO.1
32942-11010 Hose, Oil Cooler Outlet, NO.1
2023-11 → —
AZSH32 ¥1,140
32942-62020 Hose, Oil Cooler Outlet, NO.1
2023-11 → —
KZSM30 ¥850
32942H — Hose, Oil Cooler Outlet, NO.2
32942-30320 Hose, Oil Cooler Outlet, NO.2
2023-11 → —
AZSH32 ¥2,330
32942-62030 Hose, Oil Cooler Outlet, NO.2
2023-11 → —
KZSM30 ¥850
32942J — Clip, NO.2(FOR OIL COOLER HOSE)
90466-16004 Clip, NO.2(FOR OIL COOLER HOSE)
2023-11 → —
AZSH32 ¥180
32943W — Hose, Transmission Oil Cooler
32941-62030 Hose, Transmission Oil Cooler
2023-11 → —
KZSM30 ¥1,140
32943-30330 Hose, Transmission Oil Cooler
2023-11 → —
AZSH32 ¥1,880
G1250B — Clip, NO.1(FOR MOTOR COOLING PIPE)
96138-42501 Clip, NO.1(FOR MOTOR COOLING PIPE)
2023-11 → —
AZSH32 ¥180
G1259 — Rubber, Motor Cooling Pipe
G1259-30020 Rubber, Motor Cooling Pipe
2023-11 → —
AZSH32 ¥210
G125A — Cooler, Motor Cooling
G125A-30010 Cooler, Motor Cooling
2023-11 → —
AZSH32 ¥9,800
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
