Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

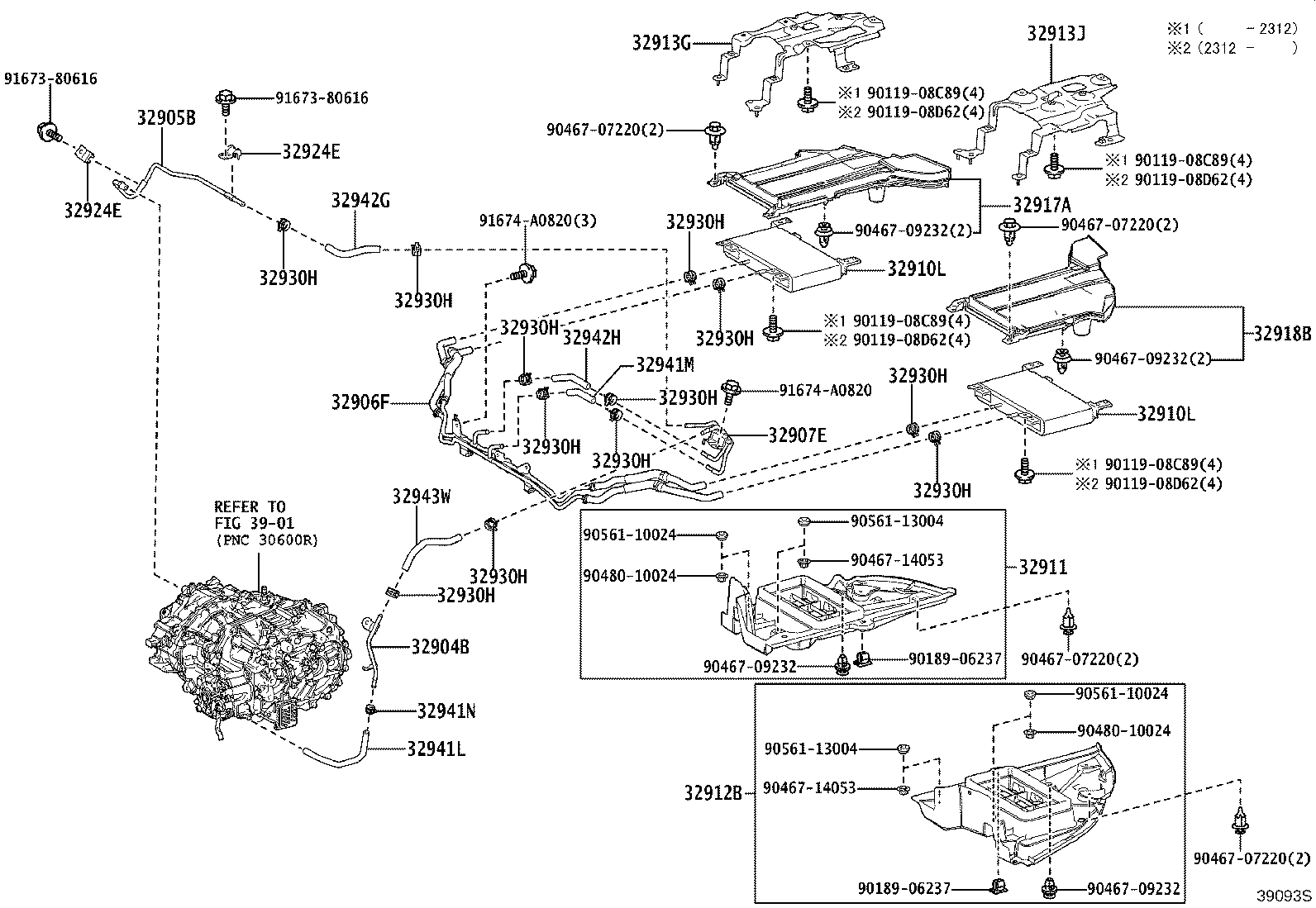

Exploded illustration 39093S 91674A0820 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707220 — not listed in this catalogue 9011908C89 — not listed in this catalogue 91674A0820 — not listed in this catalogue 9056113004 — not listed in this catalogue 9046709232 — not listed in this catalogue 9046709232 — not listed in this catalogue 9056110024 — not listed in this catalogue 9046714053 — not listed in this catalogue 9056113004 — not listed in this catalogue 9046714053 — not listed in this catalogue 9048010024 — not listed in this catalogue 9056110024 — not listed in this catalogue 9048010024 — not listed in this catalogue 9018906237 — not listed in this catalogue 9018906237 — not listed in this catalogue 9046709232 — not listed in this catalogue 9167380616 — not listed in this catalogue 9167380616 — not listed in this catalogue 32943W — HOSE, TRANSMISSION OIL COOLER (2 parts) 32924E — CLAMP, OIL COOLER TUBE, NO.2 (1 parts) 32942G — HOSE, OIL COOLER OUTLET, NO.1 (2 parts) 32907E — TUBE SUB-ASSY, OIL COOLER W/O HOSE (2 parts) 32930H — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32930H — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32906F — TUBE SUB-ASSY, OIL COOLER (1 parts) 32930H — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32930H — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32930H — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32930H — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32930H — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32930H — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32930H — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32930H — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32930H — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32930H — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32941M — HOSE, OIL COOLER INLET, NO.2 (2 parts) 32942H — HOSE, OIL COOLER OUTLET, NO.2 (2 parts) 32905B — TUBE SUB-ASSY, OIL COOLER OUTLET (1 parts) 32924E — CLAMP, OIL COOLER TUBE, NO.2 (1 parts) 32941L — HOSE, OIL COOLER INLET, NO.1 (2 parts) 32941N — CLIP, NO.1(FOR OIL COOLER HOSE) (2 parts) 32904B — TUBE SUB-ASSY, OIL COOLER INLET (1 parts) 32910L — COOLER ASSY, OIL (2 parts) 32911 — COVER, TRANSMISSION OIL COOLER UNDER, RH (1 parts) 32912B — COVER, TRANSMISSION OIL COOLER UNDER, LH (1 parts) 32910L — COOLER ASSY, OIL (2 parts) 32917A — DUCT, TRANSMISSION OIL COOLER AIR (1 parts) 32918B — DUCT, TRANSMISSION OIL COOLER AIR, LH (1 parts) 32913G — BRACKET, TRANSMISSION OIL COOLER (2 parts) 32913J — BRACKET, TRANSMISSION OIL COOLER, NO.2 (1 parts) 9046709232 — not listed in this catalogue 3901 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707220 — not listed in this catalogue 9011908D62 — not listed in this catalogue 9011908C89 — not listed in this catalogue 9011908D62 — not listed in this catalogue 9011908C89 — not listed in this catalogue 9011908D62 — not listed in this catalogue 9011908C89 — not listed in this catalogue 9011908D62 — not listed in this catalogue
39093S · 32 callouts, 31 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
29 parts on this figure
Part number Description Fitment Price
32904B — Tube Sub-assy, Oil Cooler Inlet
32904-62010 Tube Sub-assy, Oil Cooler Inlet
2023-11 → —
KZSM30 ¥980
32905B — Tube Sub-assy, Oil Cooler Outlet
32905-62020 Tube Sub-assy, Oil Cooler Outlet
2023-11 → —
KZSM30 ¥2,220
32906F — Tube Sub-assy, Oil Cooler
32960-62050 Tube Sub-assy, Oil Cooler
2023-11 → —
KZSM30 ¥6,000
32907E — Tube Sub-assy, Oil Cooler W/O Hose
32906-62030 Tube Sub-assy, Oil Cooler W/O Hose
2023-11 → —
KZSM30 ¥2,600
32907-30150 Tube Sub-assy, Oil Cooler W/O Hose
2023-11 → —
AZSH32 —
32910L — Cooler Assy, Oil
32910-62020 Cooler Assy, Oil
2023-11 → 2024-03 ended
KZSM30 ¥34,700
32910-62021 Cooler Assy, Oil
2024-03 → —
KZSM30 ¥31,400
32911 — Cover, Transmission Oil Cooler Under, RH
32911-62010 Cover, Transmission Oil Cooler Under, RH
2023-11 → —
KZSM30 ¥6,500
32912B — Cover, Transmission Oil Cooler Under, LH
32912-62010 Cover, Transmission Oil Cooler Under, LH
2023-11 → —
KZSM30 ¥6,600
32913G — Bracket, Transmission Oil Cooler
32913-11010 Bracket, Transmission Oil Cooler
2023-11 → —
AZSH32 ¥3,200
32913-62020 Bracket, Transmission Oil Cooler
2023-11 → —
KZSM30 ¥5,000
32913J — Bracket, Transmission Oil Cooler, NO.2
32914-62010 Bracket, Transmission Oil Cooler, NO.2
2023-11 → —
KZSM30 ¥5,300
32917A — Duct, Transmission Oil Cooler Air
32917-30020 Duct, Transmission Oil Cooler Air
2023-11 → —
KZSM30 ¥5,800
32918B — Duct, Transmission Oil Cooler Air, LH
32918-30020 Duct, Transmission Oil Cooler Air, LH
2023-11 → —
KZSM30 ¥5,800
32924E — Clamp, Oil Cooler Tube, NO.2
32924-48010 Clamp, Oil Cooler Tube, NO.2
2023-11 → —
KZSM30 ¥200
32930H — Clip, NO.1(FOR OIL COOLER HOSE)
90466-16004 Clip, NO.1(FOR OIL COOLER HOSE)
2023-11 → —
AZSH32 ¥180
90466-16004 Clip, NO.1(FOR OIL COOLER HOSE)
2023-11 → —
KZSM30 ¥180
32941L — Hose, Oil Cooler Inlet, NO.1
32941-11010 Hose, Oil Cooler Inlet, NO.1
2023-11 → —
AZSH32 ¥1,080
32941-62010 Hose, Oil Cooler Inlet, NO.1
2023-11 → —
KZSM30 ¥1,160
32941M — Hose, Oil Cooler Inlet, NO.2
32941-11020 Hose, Oil Cooler Inlet, NO.2
2023-11 → —
AZSH32 ¥980
32941-62040 Hose, Oil Cooler Inlet, NO.2
2023-11 → —
KZSM30 ¥620
32941N — Clip, NO.1(FOR OIL COOLER HOSE)
90466-16004 Clip, NO.1(FOR OIL COOLER HOSE)
2023-11 → —
KZSM30 ¥180
90466-16004 Clip, NO.1(FOR OIL COOLER HOSE)
2023-11 → —
AZSH32 ¥180
32942G — Hose, Oil Cooler Outlet, NO.1
32942-11010 Hose, Oil Cooler Outlet, NO.1
2023-11 → —
AZSH32 ¥1,140
32942-62020 Hose, Oil Cooler Outlet, NO.1
2023-11 → —
KZSM30 ¥850
32942H — Hose, Oil Cooler Outlet, NO.2
32942-30320 Hose, Oil Cooler Outlet, NO.2
2023-11 → —
AZSH32 ¥2,330
32942-62030 Hose, Oil Cooler Outlet, NO.2
2023-11 → —
KZSM30 ¥850
32943W — Hose, Transmission Oil Cooler
32941-62030 Hose, Transmission Oil Cooler
2023-11 → —
KZSM30 ¥1,140
32943-30330 Hose, Transmission Oil Cooler
2023-11 → —
AZSH32 ¥1,880
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
