Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

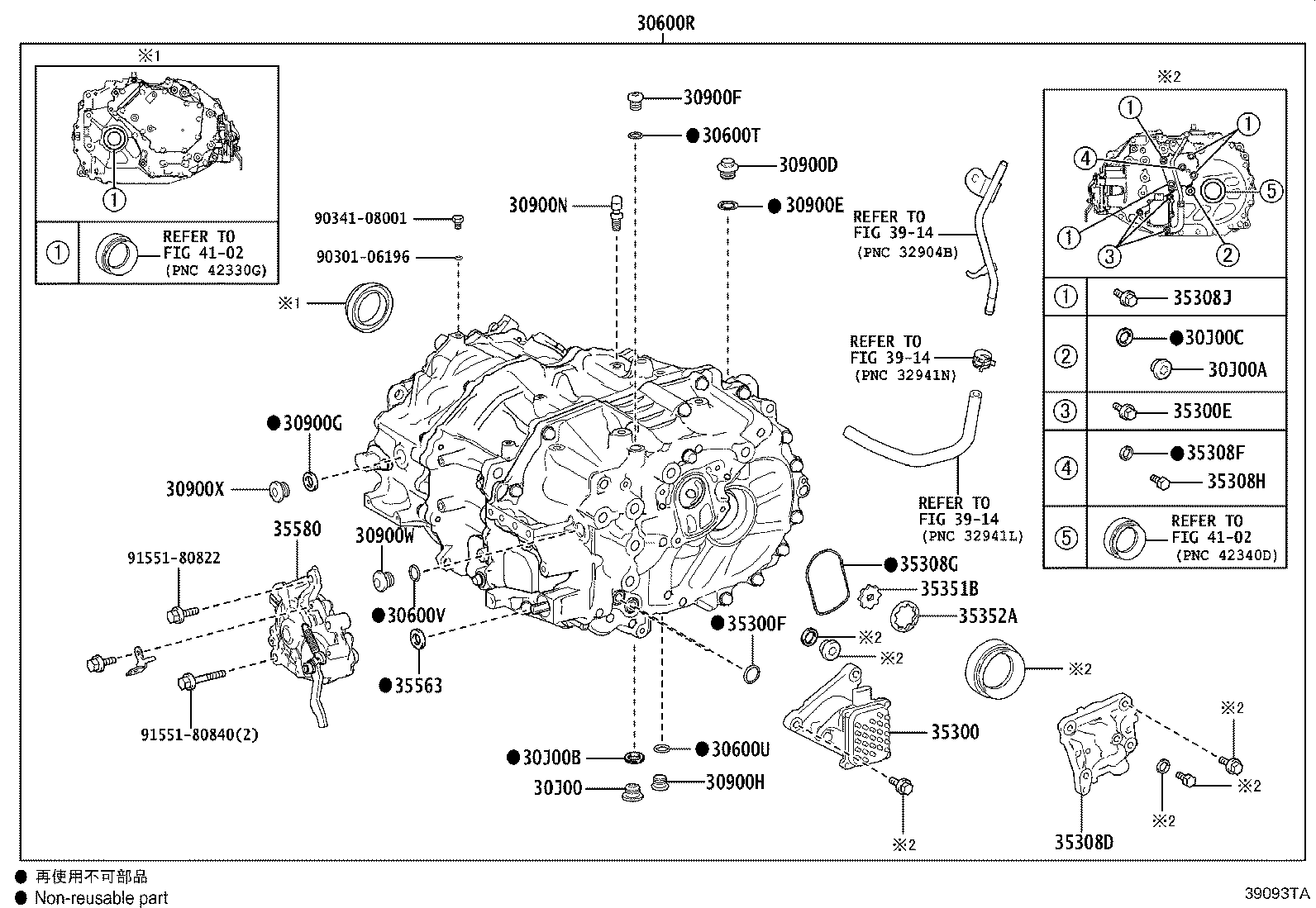

Exploded illustration 39093TA 3914 — not listed in this catalogue 3914 — not listed in this catalogue 3914 — not listed in this catalogue 4102 — not listed in this catalogue 4102 — not listed in this catalogue 30900D — PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE) (1 parts) 30900E — GASKET(FOR TRANSAXLE HOUSING & CASE) (1 parts) 9034108001 — not listed in this catalogue 9030106196 — not listed in this catalogue 9155180822 — not listed in this catalogue 9155180840 — not listed in this catalogue 30600R — TRANSAXLE ASSY, FCV W/MOTOR (1 parts) 30600T — O RING, TRANSAXLE CASE, NO.1 (1 parts) 30600U — O RING, TRANSAXLE CASE, NO.2 (1 parts) 30600V — O RING, TRANSAXLE CASE, NO.3 (1 parts) 30900F — PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE) (1 parts) 30900H — PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & CASE) (1 parts) 30J00 — PLUG, DRAIN(FCEV) (1 parts) 30J00A — PLUG, FILLER(FCEV) (1 parts) 30900W — PLUG, W/HEAD STRAIGHT SCREW, NO.4(TRANSAXLE HOUSING & CASE) (1 parts) 30J00B — GASKET, DRAIN PLUG(FCEV) (1 parts) 30J00C — GASKET, FILLER PLUG(FCEV) (1 parts) 30900X — PLUG, W/HEAD STRAIGHT SCREW, NO.5(TRANSAXLE HOUSING & CASE) (1 parts) 30900G — GASKET, NO.2(FOR TRANSAXLE HOUSING & CASE) (1 parts) 35563 — SEAL, SHIFT CONTROL ACTUATOR (1 parts) 35580 — ACTUATOR ASSY, SHIFT CONTROL (1 parts) 35300 — PUMP ASSY, OIL W/MOTOR (2 parts) 35308D — COVER SUB-ASSY, TRANSMISSION OIL PUMP (1 parts) 35351B — ROTOR, TRANSAXLE OIL PUMP DRIVE (1 parts) 35352A — ROTOR, TRANSMISSION OIL PUMP DRIVEN (1 parts) 35308F — RING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER) (1 parts) 35308G — RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER) (1 parts) 35308H — PLUG (FOR TRANSMISSION OIL PUMP COVER) (1 parts) 35308J — BOLT(FOR TRANSMISSION OIL PUMP COVER) (1 parts) 35300E — BOLT(FOR TRANSMISSION OIL PUMP) (1 parts) 35300F — O RING(FOR TRANSMISSION OIL PUMP) (1 parts) 30900N — PLUG, BREATHER(FOR TRANSAXLE) (1 parts)
39093TA · 28 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
29 parts on this figure
Part number Description Fitment Price
30600R — Transaxle Assy, Fcv W/Motor
30600-62021 Transaxle Assy, Fcv W/Motor
2023-11 → —
KZSM30 ¥409,000
30600T — O Ring, Transaxle Case, NO.1
90301-11030 O Ring, Transaxle Case, NO.1
2023-11 → —
KZSM30 ¥140
30600U — O Ring, Transaxle Case, NO.2
90301-13013 O Ring, Transaxle Case, NO.2
2023-11 → —
KZSM30 ¥170
30600V — O Ring, Transaxle Case, NO.3
90301-15004 O Ring, Transaxle Case, NO.3
2023-11 → —
KZSM30 ¥160
30900D — Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE)
90341-18060 Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE)
2023-11 → —
KZSM30 ¥240
30900E — Gasket(FOR TRANSAXLE HOUSING & CASE)
90430-18008 Gasket(FOR TRANSAXLE HOUSING & CASE)
2023-11 → —
KZSM30 ¥110
30900F — Plug, W/Head Straight Screw, NO.2(FOR TRANSAXLE HSG & CASE)
90341-14011 Plug, W/Head Straight Screw, NO.2(FOR TRANSAXLE HSG & CASE)
2023-11 → —
KZSM30 ¥190
30900G — Gasket, NO.2(FOR TRANSAXLE HOUSING & CASE)
90430-18008 Gasket, NO.2(FOR TRANSAXLE HOUSING & CASE)
2023-11 → —
KZSM30 ¥110
30900H — Plug, W/Head Straight Screw, NO.3(FOR TRANSAXLE HSG & CASE)
90341-16023 Plug, W/Head Straight Screw, NO.3(FOR TRANSAXLE HSG & CASE)
2023-11 → —
KZSM30 ¥190
30900N — Plug, Breather(FOR TRANSAXLE)
90930-03201 note Plug, Breather(FOR TRANSAXLE)
2023-11 → —
KZSM30 ¥120
30900W — Plug, W/Head Straight Screw, NO.4(TRANSAXLE HOUSING & CASE)
90341-18020 Plug, W/Head Straight Screw, NO.4(TRANSAXLE HOUSING & CASE)
2023-11 → —
KZSM30 ¥310
30900X — Plug, W/Head Straight Screw, NO.5(TRANSAXLE HOUSING & CASE)
90341-18016 Plug, W/Head Straight Screw, NO.5(TRANSAXLE HOUSING & CASE)
2023-11 → —
KZSM30 ¥190
30J00 — Plug, Drain(FCEV)
90341-18016 Plug, Drain(FCEV)
2023-11 → —
KZSM30 ¥190
30J00A — Plug, Filler(FCEV)
90341-18016 Plug, Filler(FCEV)
2023-11 → —
KZSM30 ¥190
30J00B — Gasket, Drain Plug(FCEV)
90430-18008 Gasket, Drain Plug(FCEV)
2023-11 → —
KZSM30 ¥110
30J00C — Gasket, Filler Plug(FCEV)
90430-18008 Gasket, Filler Plug(FCEV)
2023-11 → —
KZSM30 ¥110
35300 — Pump Assy, Oil W/Motor
35300-10010 Pump Assy, Oil W/Motor
2023-11 → —
KZSM30 ¥43,600
35300-30050 Pump Assy, Oil W/Motor
2023-11 → —
AZSH32 ¥78,700
35300E — Bolt(FOR TRANSMISSION OIL PUMP)
91551-80830 Bolt(FOR TRANSMISSION OIL PUMP)
2023-11 → —
KZSM30 ¥80
35300F — O Ring(FOR TRANSMISSION OIL PUMP)
96723-19018 O Ring(FOR TRANSMISSION OIL PUMP)
2023-11 → —
KZSM30 ¥130
35308D — Cover Sub-assy, Transmission Oil Pump
35308-10010 Cover Sub-assy, Transmission Oil Pump
2023-11 → —
KZSM30 ¥4,900
35308F — Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
90301-06196 Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
2023-11 → —
KZSM30 ¥170
35308G — Ring, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
90301-51005 Ring, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
2023-11 → —
KZSM30 ¥170
35308H — Plug (FOR TRANSMISSION OIL PUMP COVER)
90341-08001 Plug (FOR TRANSMISSION OIL PUMP COVER)
2023-11 → —
KZSM30 ¥120
35308J — Bolt(FOR TRANSMISSION OIL PUMP COVER)
91551-80825 Bolt(FOR TRANSMISSION OIL PUMP COVER)
2023-11 → —
KZSM30 ¥80
35351B — Rotor, Transaxle Oil Pump Drive
35351-47040 Rotor, Transaxle Oil Pump Drive
2023-11 → —
KZSM30 ¥640
35352A — Rotor, Transmission Oil Pump Driven
35352-47020 Rotor, Transmission Oil Pump Driven
2023-11 → —
KZSM30 ¥200
35563 — Seal, Shift Control Actuator
35563-11010 Seal, Shift Control Actuator
2023-11 → —
AZSH32,KZSM30 ¥90
35580 — Actuator Assy, Shift Control
35580-10010 Actuator Assy, Shift Control
2023-11 → —
AZSH32,KZSM30 ¥53,800
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
