Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

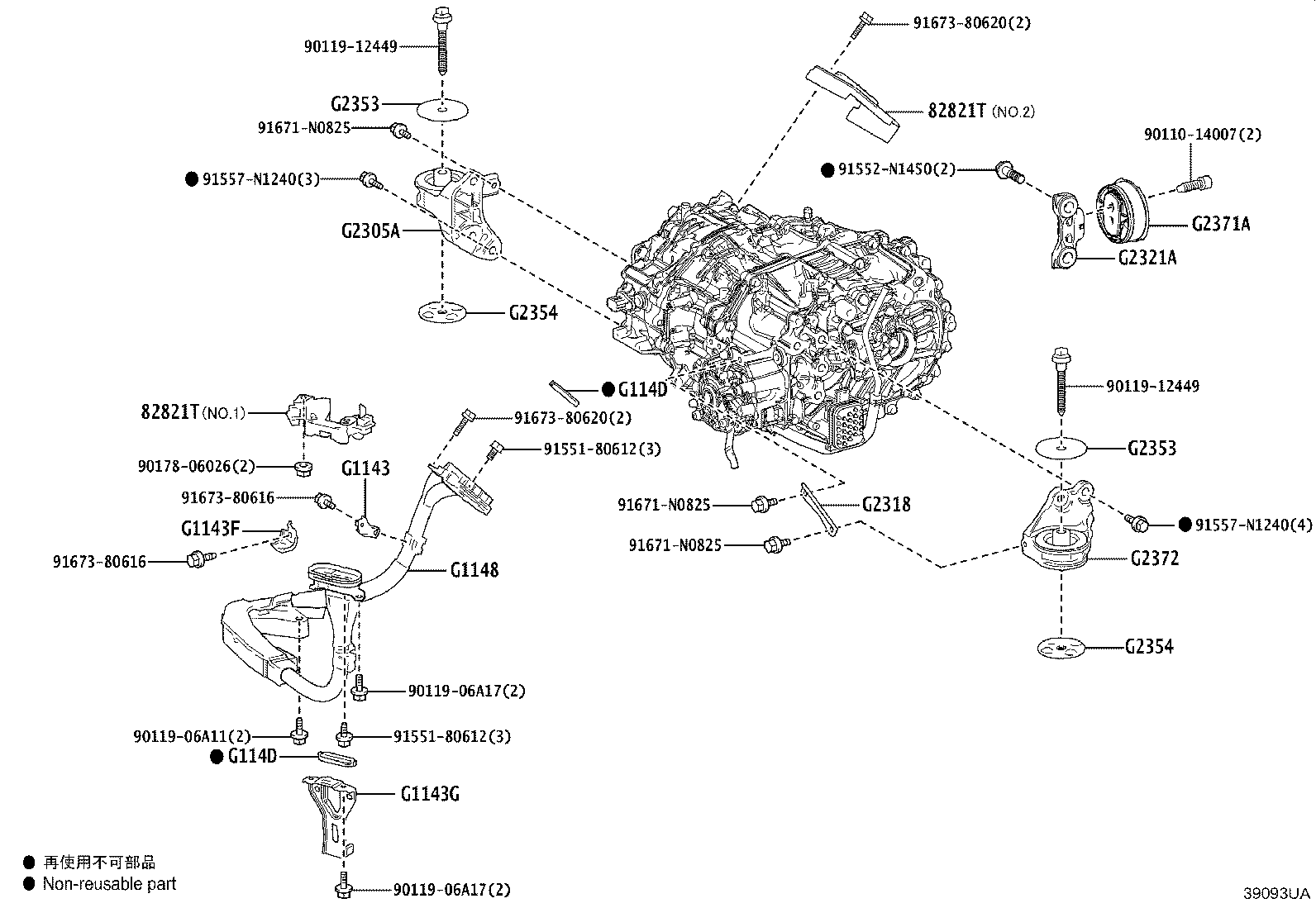

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82821T — Cover, Connector | ||||
| 82821-11010 |
Cover, Connector
2023-11 → —
|
AZSH32 | ¥1,400 | |
| 82821-62060 note |
Cover, Connector
2023-11 → —
|
KZSM30 | ¥2,060 | |
| 82821-62140 note |
Cover, Connector
2023-11 → —
|
KZSM30 | ¥1,800 | |
| G1143 — Bracket, Motor Cable | ||||
| G1143-30030 |
Bracket, Motor Cable
2023-11 → —
|
AZSH32 | ¥520 | |
| G1143-62030 |
Bracket, Motor Cable
2023-11 → —
|
KZSM30 | ¥200 | |
| G1143F — Bracket, Motor Cable, NO.2 | ||||
| G1143-62040 |
Bracket, Motor Cable, NO.2
2023-11 → —
|
KZSM30 | ¥400 | |
| G1143G — Bracket, Motor Cable, NO.3 | ||||
| G1143-62050 |
Bracket, Motor Cable, NO.3
2023-11 → —
|
KZSM30 | ¥1,040 | |
| G1148 — Cable, Motor | ||||
| G1148-30040 |
Cable, Motor
2023-11 → —
|
AZSH32 | ¥27,900 | |
| G1148-62020 |
Cable, Motor
2023-11 → —
|
KZSM30 | ¥28,000 | |
| G114D — Cap, Motor Cable Terminal | ||||
| G114D-30010 |
Cap, Motor Cable Terminal
2023-11 → —
|
AZSH32,KZSM30 | ¥370 | |
| G2305A — Insulator Sub-assy, Motor Mounting, RH | ||||
| G2305-62010 |
Insulator Sub-assy, Motor Mounting, RH
2023-11 → —
|
KZSM30 | ¥7,800 | |
| G2318 — Stay, Motor Mounting, LH | ||||
| G2318-62010 |
Stay, Motor Mounting, LH
2023-11 → —
|
KZSM30 | ¥300 | |
| G2321A — Bracket, Motor Mounting, Rear | ||||
| G2321-62020 |
Bracket, Motor Mounting, Rear
2023-11 → —
|
KZSM30 | ¥2,910 | |
| G2353 — Stopper, Motor Mounting, Upper | ||||
| G2353-62010 |
Stopper, Motor Mounting, Upper
2023-11 → —
|
KZSM30 | ¥580 | |
| G2354 — Stopper, Motor Mounting, Lower | ||||
| G2354-62010 |
Stopper, Motor Mounting, Lower
2023-11 → —
|
KZSM30 | ¥840 | |
| G2371A — Insulator, Motor Mounting, Rear | ||||
| G2371-62020 |
Insulator, Motor Mounting, Rear
2023-11 → —
|
KZSM30 | ¥2,830 | |
| G2372 — Insulator, Motor Mounting, LH | ||||
| G2372-62020 |
Insulator, Motor Mounting, LH
2023-11 → —
|
KZSM30 | ¥7,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
