Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

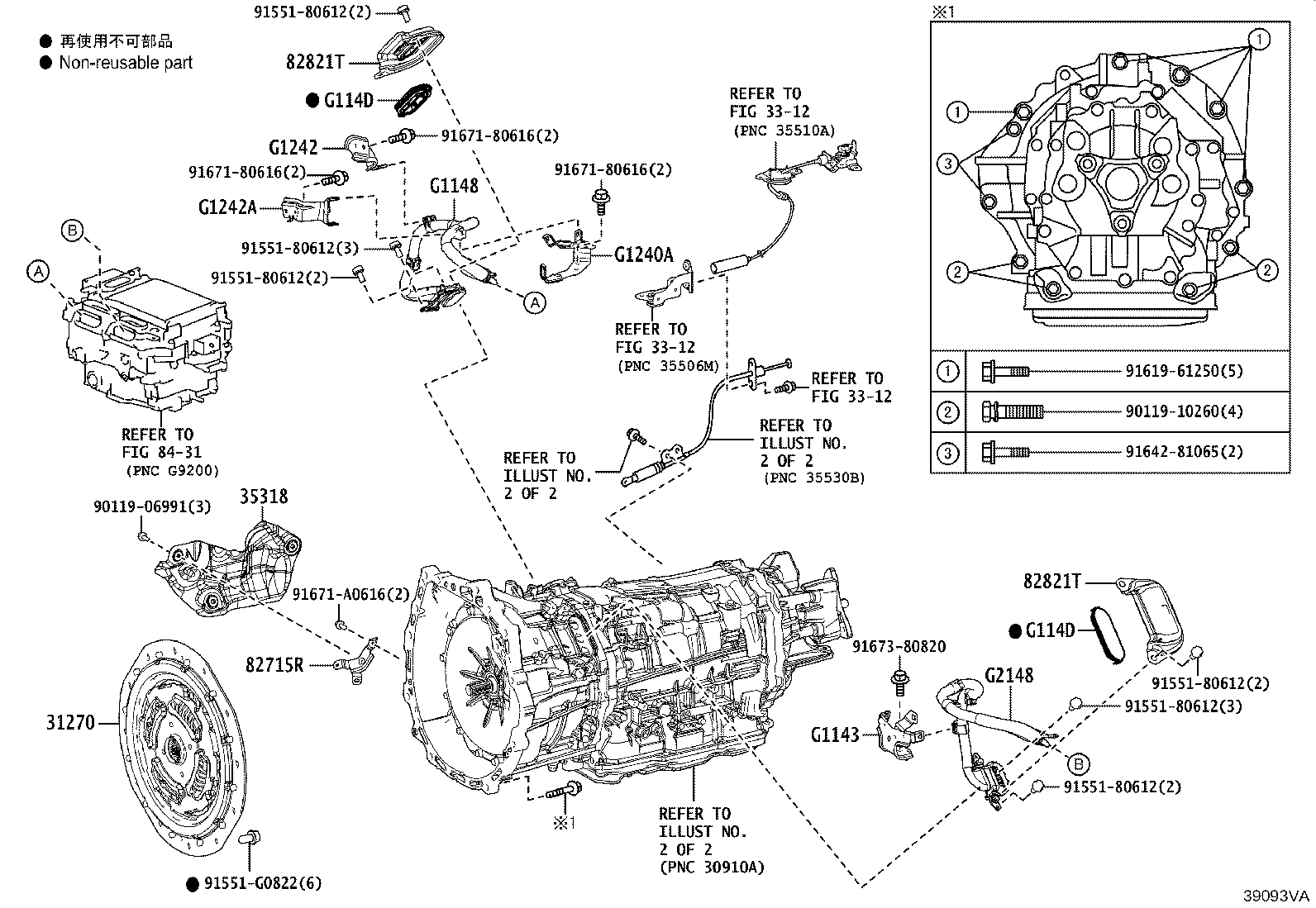

Exploded illustration 39093VA 82821T — COVER, CONNECTOR (3 parts) G114D — CAP, MOTOR CABLE TERMINAL (1 parts) 9155180612 — not listed in this catalogue 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 9155180612 — not listed in this catalogue 9155180612 — not listed in this catalogue 9155180612 — not listed in this catalogue 9167380820 — not listed in this catalogue 9155180612 — not listed in this catalogue 82821T — COVER, CONNECTOR (3 parts) 9155180612 — not listed in this catalogue G114D — CAP, MOTOR CABLE TERMINAL (1 parts) 91551G0822 — not listed in this catalogue G2148 — CABLE, GENERATOR (1 parts) G1148 — CABLE, MOTOR (2 parts) 91671A0616 — not listed in this catalogue 9161961250 — not listed in this catalogue 9011910260 — not listed in this catalogue 9164281065 — not listed in this catalogue G1242 — BRACKET, ENGINE MOTOR CABLE CLAMP (1 parts) G1242A — BRACKET, ENGINE MOTOR CABLE CLAMP (1 parts) 8431 — not listed in this catalogue 35318 — INSULATOR, TRANSMISSION OIL PUMP (1 parts) 82715R — BRACKET, WIRING HARNESS CLAMP, NO.1 (2 parts) 9011906991 — not listed in this catalogue 3312 — not listed in this catalogue 3312 — not listed in this catalogue 3312 — not listed in this catalogue 31270 — DAMPER ASSY, TRANSMISSION INPUT (1 parts) G1240A — BRACKET ASSY, INVERTER MOTOR CABLE (1 parts) G1143 — BRACKET, MOTOR CABLE (2 parts)
39093VA · 13 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
31270 — Damper Assy, Transmission Input
31270-30020 Damper Assy, Transmission Input
2023-11 → —
AZSH32 ¥31,400
35318 — Insulator, Transmission Oil Pump
35318-11010 Insulator, Transmission Oil Pump
2023-11 → —
AZSH32 ¥1,930
82715R — Bracket, Wiring Harness Clamp, NO.1
82715-11010 note Bracket, Wiring Harness Clamp, NO.1
2023-11 → —
AZSH32 ¥610
82715-3A590 Bracket, Wiring Harness Clamp, NO.1
2023-11 → —
AZSH32 ¥670
82821T — Cover, Connector
82821-11010 Cover, Connector
2023-11 → —
AZSH32 ¥1,400
82821-62060 note Cover, Connector
2023-11 → —
KZSM30 ¥2,060
82821-62140 note Cover, Connector
2023-11 → —
KZSM30 ¥1,800
G1143 — Bracket, Motor Cable
G1143-30030 Bracket, Motor Cable
2023-11 → —
AZSH32 ¥520
G1143-62030 Bracket, Motor Cable
2023-11 → —
KZSM30 ¥200
G1148 — Cable, Motor
G1148-30040 Cable, Motor
2023-11 → —
AZSH32 ¥27,900
G1148-62020 Cable, Motor
2023-11 → —
KZSM30 ¥28,000
G114D — Cap, Motor Cable Terminal
G114D-30010 Cap, Motor Cable Terminal
2023-11 → —
AZSH32,KZSM30 ¥370
G1240A — Bracket Assy, Inverter Motor Cable
G1240-30060 Bracket Assy, Inverter Motor Cable
2023-11 → —
AZSH32 ¥540
G1242 — Bracket, Engine Motor Cable Clamp
G1242-30120 Bracket, Engine Motor Cable Clamp
2023-11 → —
AZSH32 ¥510
G1242A — Bracket, Engine Motor Cable Clamp
G1242-30130 Bracket, Engine Motor Cable Clamp
2023-11 → —
AZSH32 ¥740
G2148 — Cable, Generator
G2148-30040 Cable, Generator
2023-11 → —
AZSH32 ¥27,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
