Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

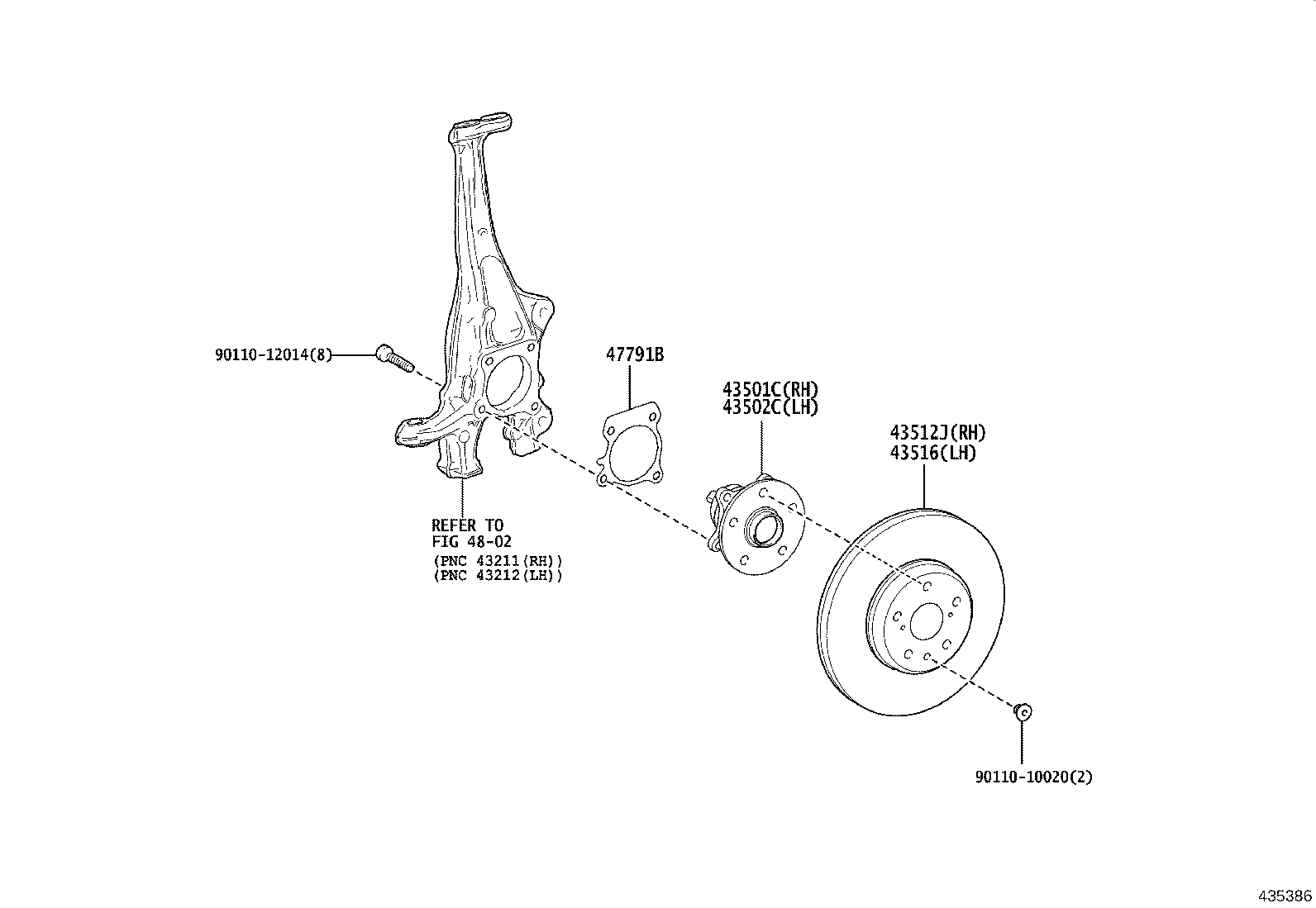

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 43501C — Hub Sub-assy, Front Axle, RH | ||||
| 43550-50100 |
Hub Sub-assy, Front Axle, RH
2023-11 → —
|
AZSH32,KZSM30 | ¥18,500 | |
| 43502C — Hub Sub-assy, Front Axle, LH | ||||
| 43560-50040 |
Hub Sub-assy, Front Axle, LH
2023-11 → —
|
AZSH32,KZSM30 | ¥18,500 | |
| 43512J — Disc, Front RH | ||||
| 43512-30440 |
Disc, Front RH
2023-11 → —
|
KZSM30 | ¥9,400 | |
| 43512-50260 |
Disc, Front RH
2023-11 → —
|
AZSH32 | ¥9,700 | |
| 43516 — Disc, Front LH | ||||
| 43512-30440 |
Disc, Front LH
2023-11 → —
|
KZSM30 | ¥9,400 | |
| 43516-50020 |
Disc, Front LH
2023-11 → —
|
AZSH32 | ¥9,700 | |
| 47791B — Plate, Disc Brake Air Guide | ||||
| 47791-11010 |
Plate, Disc Brake Air Guide
2023-11 → —
|
AZSH32,KZSM30 | ¥480 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
