Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

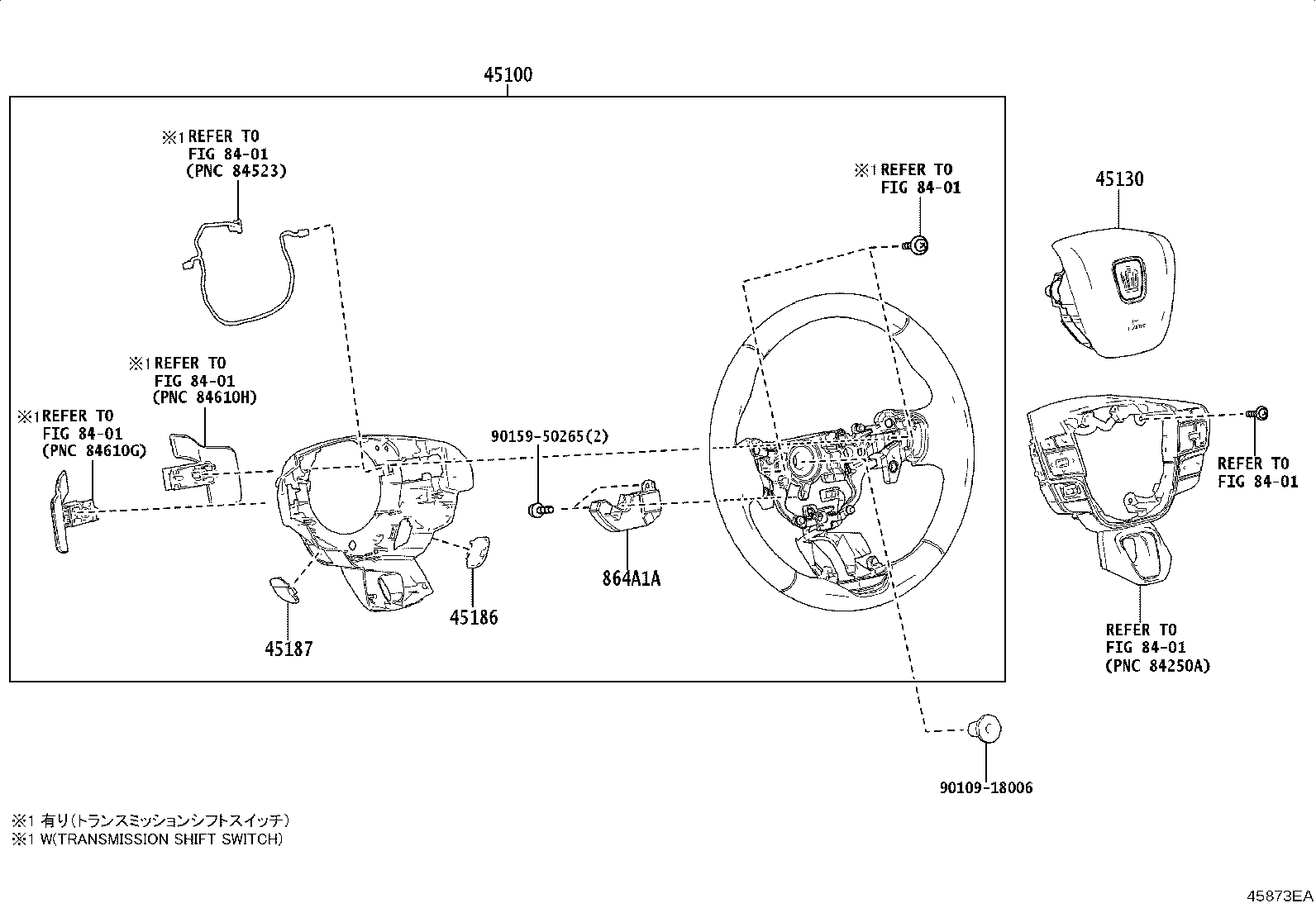

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45100 — Wheel Assy, Steering | ||||
| 45100-30K10-C2 note |
Wheel Assy, Steering
2023-11 → —
|
KZSM30 | ¥85,600 | |
| 45100-30K20-C2 note |
Wheel Assy, Steering
2023-11 → 2025-06
ended
|
AZSH32 Z | ¥66,000 | |
| 45100-30K20-C2 note |
Wheel Assy, Steering
2023-11 → —
|
AZSH32 G | ¥66,000 | |
| 45100-40170-C1 note |
Wheel Assy, Steering
2023-11 → —
|
AZSH32 Z | ¥89,700 | |
| 45130 — Button Assy, Horn | ||||
| 45130-30830-C0 note |
Button Assy, Horn
2023-11 → —
|
AZSH32,KZSM30 Z | ¥48,600 | |
| 45130-30830-C0 note |
Button Assy, Horn
2023-11 → —
|
AZSH32 G | ¥48,600 | |
| 45186 — Cover, Steering Wheel, Lower NO.2 | ||||
| 45186-30200-C0 note |
Cover, Steering Wheel, Lower NO.2
2023-11 → —
|
AZSH32,KZSM30 Z | ¥80 | |
| 45186-30200-C0 note |
Cover, Steering Wheel, Lower NO.2
2023-11 → —
|
AZSH32 G | ¥80 | |
| 45187 — Cover, Steering Wheel, Lower NO.3 | ||||
| 45187-30140-C0 note |
Cover, Steering Wheel, Lower NO.3
2023-11 → —
|
AZSH32,KZSM30 Z | ¥80 | |
| 45187-30140-C0 note |
Cover, Steering Wheel, Lower NO.3
2023-11 → —
|
AZSH32 G | ¥80 | |
| 864A1A — Computer, Multiplex Network Steering | ||||
| 864A1-78020 note |
Computer, Multiplex Network Steering
2023-11 → 2025-06
ended
|
AZSH32 Z | ¥7,000 | |
| 864A1-78020 |
Computer, Multiplex Network Steering
2023-11 → —
|
AZSH32 G | ¥7,000 | |
| 864A1-78040 |
Computer, Multiplex Network Steering
2023-11 → —
|
AZSH32,KZSM30 Z | ¥13,000 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
