Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

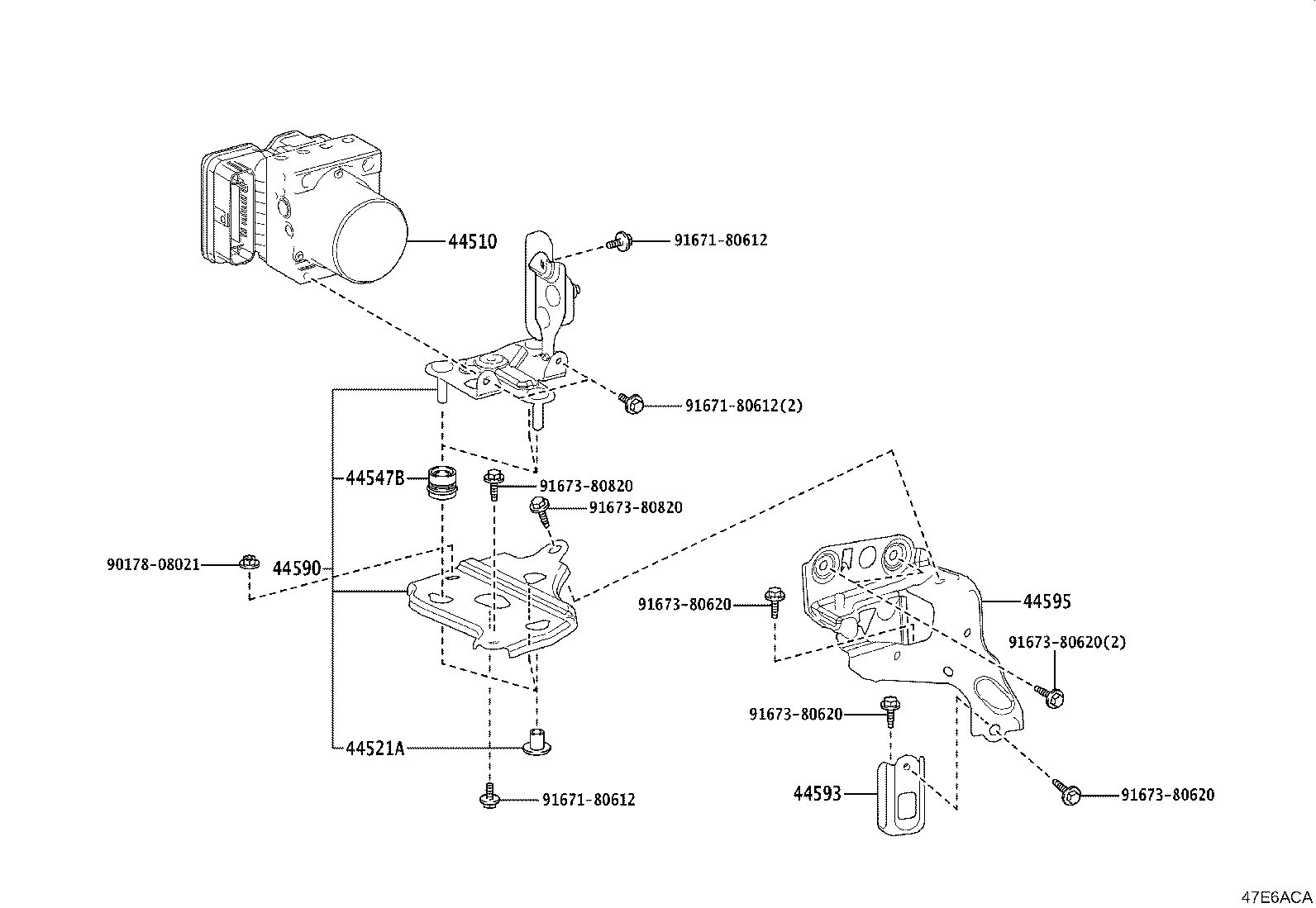

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44510 — Actuator Assy, Brake | ||||
| 44050-30L40 note |
Actuator Assy, Brake
2023-11 → —
|
KZSM30 | ¥135,000 | |
| 44050-30L50 note |
Actuator Assy, Brake
2023-11 → —
|
AZSH32 | ¥135,000 | |
| 44521A — Collar, Brake Actuator Case, NO.1 | ||||
| 44521-33020 |
Collar, Brake Actuator Case, NO.1
2023-11 → —
|
AZSH32,KZSM30 | ¥190 | |
| 44547B — Cushion, Brake Actuator Bracket | ||||
| 44547-62010 |
Cushion, Brake Actuator Bracket
2023-11 → —
|
AZSH32,KZSM30 | ¥130 | |
| 44590 — Bracket Assy, Brake Actuator | ||||
| 44590-62011 |
Bracket Assy, Brake Actuator
2023-11 → —
|
AZSH32,KZSM30 | ¥2,560 | |
| 44593 — Bracket, Brake Actuator, NO.3 | ||||
| 44593-62010 |
Bracket, Brake Actuator, NO.3
2023-11 → —
|
AZSH32,KZSM30 | ¥440 | |
| 44595 — Bracket, Brake Actuator, NO.5 | ||||
| 44595-62011 |
Bracket, Brake Actuator, NO.5
2023-11 → —
|
AZSH32,KZSM30 | ¥1,470 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
