Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

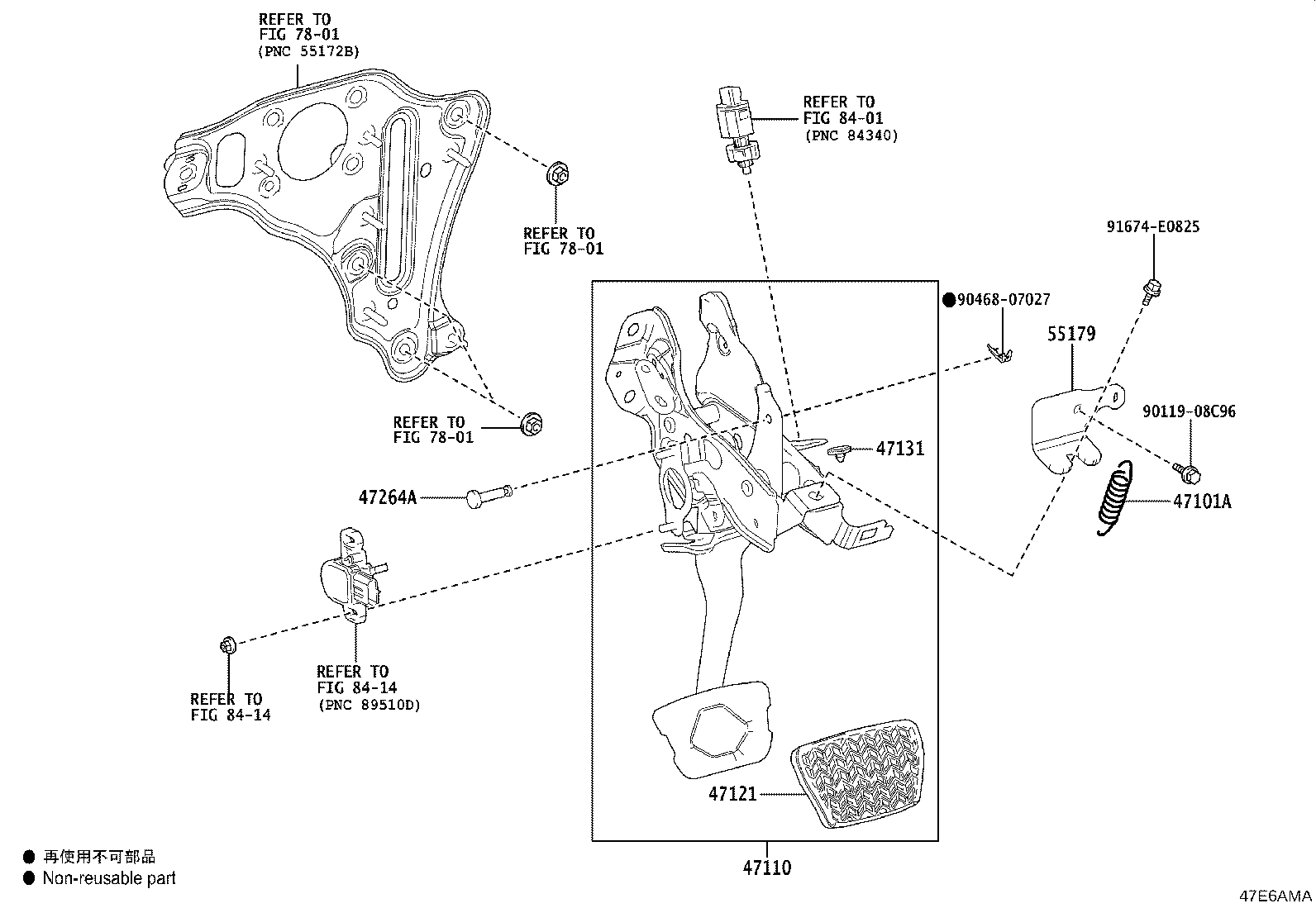

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47101A — Spring(FOR BRAKE PEDAL RETURN) | ||||
| 90507-15010 |
Spring(FOR BRAKE PEDAL RETURN)
2023-11 → —
|
AZSH32,KZSM30 | ¥180 | |
| 47110 — Support Assy, Brake Pedal | ||||
| 47110-62020 |
Support Assy, Brake Pedal
2023-11 → —
|
AZSH32,KZSM30 | ¥7,800 | |
| 47121 — Pad, Brake Pedal | ||||
| 47121-62010 |
Pad, Brake Pedal
2023-11 → —
|
AZSH32,KZSM30 | ¥520 | |
| 47131 — Cushion(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
Cushion(FOR STOP LAMP SWITCH)
2023-11 → —
|
AZSH32,KZSM30 | ¥110 | |
| 47264A — Pin(FOR PUSH ROD) | ||||
| 90240-08078 |
Pin(FOR PUSH ROD)
2023-11 → —
|
AZSH32,KZSM30 | ¥120 | |
| 55179 — Reinforcement, Brake Pedal Support | ||||
| 55179-62050 |
Reinforcement, Brake Pedal Support
2023-11 → —
|
AZSH32,KZSM30 | ¥660 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
