Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

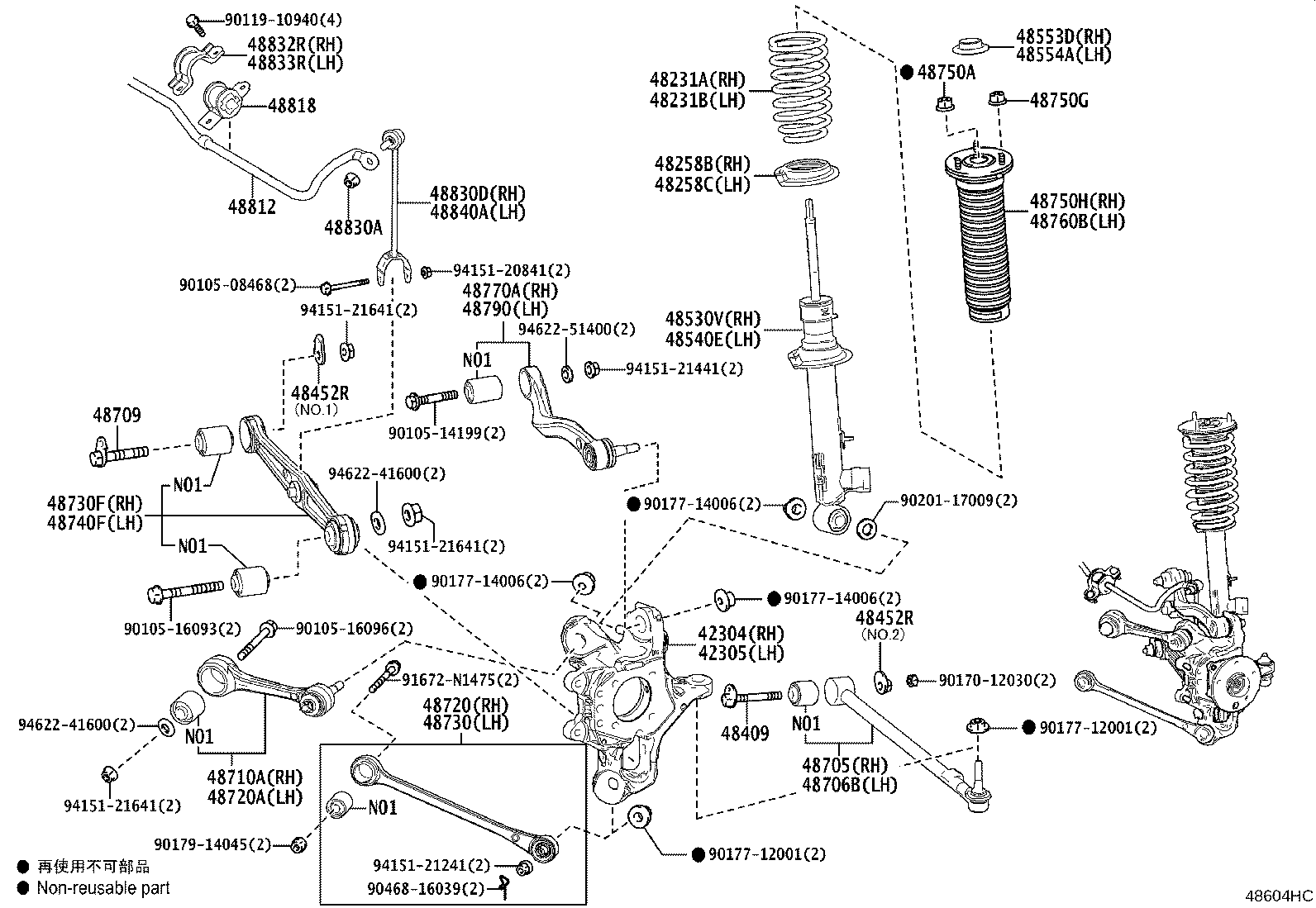

Exploded illustration 48604HC 48231A — SPRING, COIL, REAR RH (2 parts) 48231B — SPRING, COIL, REAR LH (2 parts) 48258B — INSULATOR, REAR COIL SPRING, LOWER RH (1 parts) 48258C — INSULATOR, REAR COIL SPRING, LOWER LH (1 parts) 48530V — ABSORBER SET, SHOCK, REAR RH (2 parts) 48540E — ABSORBER SET, SHOCK, REAR LH (2 parts) 48750A — NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER) (1 parts) 42304 — CARRIER SUB-ASSY, REAR AXLE, RH (1 parts) 42305 — CARRIER SUB-ASSY, REAR AXLE, LH (1 parts) 48705 — LINK SUB-ASSY, TOE CONTROL, RH (1 parts) 48409 — CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST (1 parts) 48706B — LINK SUB-ASSY, TOE CONTROL, LH (1 parts) 9011910940 — not listed in this catalogue 9017012030 — not listed in this catalogue 48812 — BAR, STABILIZER, REAR (2 parts) 48818 — BUSH, STABILIZER, REAR (2 parts) 48830A — NUT(FOR REAR STABILIZER LINK) (1 parts) 48830D — LINK ASSY, REAR STABILIZER, RH (1 parts) 48840A — LINK ASSY, REAR STABILIZER, LH (1 parts) 9010508468 — not listed in this catalogue 9415120841 — not listed in this catalogue 9017712001 — not listed in this catalogue 48710A — ARM ASSY, REAR SUSPENSION, NO.1 RH (1 parts) 48720A — ARM ASSY, REAR SUSPENSION, NO.1 LH (1 parts) 9017714006 — not listed in this catalogue 9010516096 — not listed in this catalogue 9415121641 — not listed in this catalogue 9462241600 — not listed in this catalogue 48770A — ARM ASSY, UPPER CONTROL, REAR RH (1 parts) 48790 — ARM ASSY, UPPER CONTROL, REAR LH (1 parts) 48832R — BRACKET, REAR STABILIZER BAR, NO.1 RH (1 parts) 48833R — BRACKET, REAR STABILIZER BAR, NO.1 LH (1 parts) 9017714006 — not listed in this catalogue 9415121241 — not listed in this catalogue 48730F — ARM ASSY, REAR SUSPENSION, NO.2 RH (1 parts) 48740F — ARM ASSY, REAR SUSPENSION, NO.2 LH (1 parts) 9415121641 — not listed in this catalogue 9010516093 — not listed in this catalogue 9415121641 — not listed in this catalogue 9462241600 — not listed in this catalogue 48452R — PLATE, REAR SUSPENSION TOE ADJUST, NO.2 (2 parts) 48452R — PLATE, REAR SUSPENSION TOE ADJUST, NO.2 (2 parts) 9017714006 — not listed in this catalogue 9020117009 — not listed in this catalogue 48720 — ARM ASSY, LOWER CONTROL, RH (1 parts) 48709 — ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM (1 parts) 48730 — ARM ASSY, LOWER CONTROL, LH (1 parts) 9017712001 — not listed in this catalogue 9017914045 — not listed in this catalogue 48553D — CAP, REAR SHOCK ABSORBER, RH (1 parts) 48554A — CAP, REAR SHOCK ABSORBER, LH (1 parts) 48750G — NUT(FOR REAR SUSPENSION SUPPORT) (1 parts) 48750H — SUPPORT ASSY, REAR SUSPENSION, RH (1 parts) 48760B — SUPPORT ASSY REAR SUSPENSION, LH (1 parts) 91672N1475 — not listed in this catalogue 9046816039 — not listed in this catalogue 9462251400 — not listed in this catalogue 9415121441 — not listed in this catalogue 9010514199 — not listed in this catalogue
48604HC · 35 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
41 parts on this figure
Part number Description Fitment Price
42304 — Carrier Sub-assy, Rear Axle, RH
42304-11010 Carrier Sub-assy, Rear Axle, RH
2023-11 → —
AZSH32,KZSM30 ¥25,700
42305 — Carrier Sub-assy, Rear Axle, LH
42305-11010 Carrier Sub-assy, Rear Axle, LH
2023-11 → —
AZSH32,KZSM30 ¥25,700
48231A — Spring, Coil, Rear RH
48231-30J30 Spring, Coil, Rear RH
2023-11 → —
AZSH32 ¥6,500
48231-30J40 Spring, Coil, Rear RH
2023-11 → —
KZSM30 ¥6,700
48231B — Spring, Coil, Rear LH
48231-30J30 Spring, Coil, Rear LH
2023-11 → —
AZSH32 ¥6,500
48231-30J40 Spring, Coil, Rear LH
2023-11 → —
KZSM30 ¥6,700
48258B — Insulator, Rear Coil Spring, Lower RH
48158-30020 Insulator, Rear Coil Spring, Lower RH
2023-11 → —
AZSH32,KZSM30 ¥300
48258C — Insulator, Rear Coil Spring, Lower LH
48158-30020 Insulator, Rear Coil Spring, Lower LH
2023-11 → —
AZSH32,KZSM30 ¥300
48409 — Cam Sub-assy, Rear Suspension Toe Adjust
48409-11040 Cam Sub-assy, Rear Suspension Toe Adjust
2023-11 → —
AZSH32,KZSM30 ¥520
48452R — Plate, Rear Suspension Toe Adjust, NO.2
48452-11010 note Plate, Rear Suspension Toe Adjust, NO.2
2023-11 → —
AZSH32,KZSM30 ¥310
48452-50040 note Plate, Rear Suspension Toe Adjust, NO.2
2023-11 → —
AZSH32,KZSM30 ¥370
48530V — Absorber Set, Shock, Rear RH
48530-80B73 note Absorber Set, Shock, Rear RH
2023-11 → —
KZSM30 ¥58,300
48530-80B75 note Absorber Set, Shock, Rear RH
2023-11 → —
AZSH32 ¥58,300
48540E — Absorber Set, Shock, Rear LH
48540-80602 note Absorber Set, Shock, Rear LH
2023-11 → —
KZSM30 ¥58,300
48540-80604 note Absorber Set, Shock, Rear LH
2023-11 → —
AZSH32 ¥58,300
48553D — Cap, Rear Shock Absorber, RH
48553-62010 Cap, Rear Shock Absorber, RH
2023-11 → —
AZSH32,KZSM30 ¥330
48554A — Cap, Rear Shock Absorber, LH
48553-62010 Cap, Rear Shock Absorber, LH
2023-11 → —
AZSH32,KZSM30 ¥330
48705 — Link Sub-assy, Toe Control, RH
48705-11010 Link Sub-assy, Toe Control, RH
2023-11 → —
AZSH32,KZSM30 ¥5,100
48706B — Link Sub-assy, Toe Control, LH
48706-11010 Link Sub-assy, Toe Control, LH
2023-11 → —
AZSH32,KZSM30 ¥5,100
48709 — Attachment Sub-assy, Rear Suspension Arm
48709-11020 Attachment Sub-assy, Rear Suspension Arm
2023-11 → —
AZSH32,KZSM30 ¥1,800
48710A — Arm Assy, Rear Suspension, NO.1 RH
48710-50120 Arm Assy, Rear Suspension, NO.1 RH
2023-11 → —
AZSH32,KZSM30 ¥10,400
48720 — Arm Assy, Lower Control, RH
48720-50040 Arm Assy, Lower Control, RH
2023-11 → —
AZSH32,KZSM30 ¥10,400
48720A — Arm Assy, Rear Suspension, NO.1 LH
48710-50120 Arm Assy, Rear Suspension, NO.1 LH
2023-11 → —
AZSH32,KZSM30 ¥10,400
48730 — Arm Assy, Lower Control, LH
48720-50040 Arm Assy, Lower Control, LH
2023-11 → —
AZSH32,KZSM30 ¥10,400
48730F — Arm Assy, Rear Suspension, NO.2 RH
48730-11010 Arm Assy, Rear Suspension, NO.2 RH
2023-11 → —
AZSH32,KZSM30 ¥12,100
48740F — Arm Assy, Rear Suspension, NO.2 LH
48730-11010 Arm Assy, Rear Suspension, NO.2 LH
2023-11 → —
AZSH32,KZSM30 ¥12,100
48750A — Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
90177-12002 Nut(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
2023-11 → —
AZSH32,KZSM30 ¥90
48750G — Nut(FOR REAR SUSPENSION SUPPORT)
90178-10039 Nut(FOR REAR SUSPENSION SUPPORT)
2023-11 → —
AZSH32,KZSM30 ¥100
48750H — Support Assy, Rear Suspension, RH
48750-30210 Support Assy, Rear Suspension, RH
2023-11 → —
AZSH32,KZSM30 ¥5,800
48760B — Support Assy Rear Suspension, LH
48750-30210 Support Assy Rear Suspension, LH
2023-11 → —
AZSH32,KZSM30 ¥5,800
48770A — Arm Assy, Upper Control, Rear RH
48770-11010 Arm Assy, Upper Control, Rear RH
2023-11 → —
AZSH32,KZSM30 ¥15,900
48790 — Arm Assy, Upper Control, Rear LH
48790-11020 Arm Assy, Upper Control, Rear LH
2023-11 → —
AZSH32,KZSM30 ¥15,900
48812 — Bar, Stabilizer, Rear
48812-30660 Bar, Stabilizer, Rear
2023-11 → —
KZSM30 ¥5,100
48812-30670 Bar, Stabilizer, Rear
2023-11 → —
AZSH32 ¥6,100
48818 — Bush, Stabilizer, Rear
48818-50060 Bush, Stabilizer, Rear
2023-11 → —
AZSH32 ¥1,990
48818-50100 Bush, Stabilizer, Rear
2023-11 → —
KZSM30 —
48830A — Nut(FOR REAR STABILIZER LINK)
90179-12151 Nut(FOR REAR STABILIZER LINK)
2023-11 → —
AZSH32,KZSM30 ¥100
48830D — Link Assy, Rear Stabilizer, RH
48830-11010 Link Assy, Rear Stabilizer, RH
2023-11 → —
AZSH32,KZSM30 ¥3,950
48832R — Bracket, Rear Stabilizer Bar, NO.1 RH
48832-50020 Bracket, Rear Stabilizer Bar, NO.1 RH
2023-11 → —
AZSH32,KZSM30 ¥720
48833R — Bracket, Rear Stabilizer Bar, NO.1 LH
48832-50020 Bracket, Rear Stabilizer Bar, NO.1 LH
2023-11 → —
AZSH32,KZSM30 ¥720
48840A — Link Assy, Rear Stabilizer, LH
48840-11010 Link Assy, Rear Stabilizer, LH
2023-11 → —
AZSH32,KZSM30 ¥3,950
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
