Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

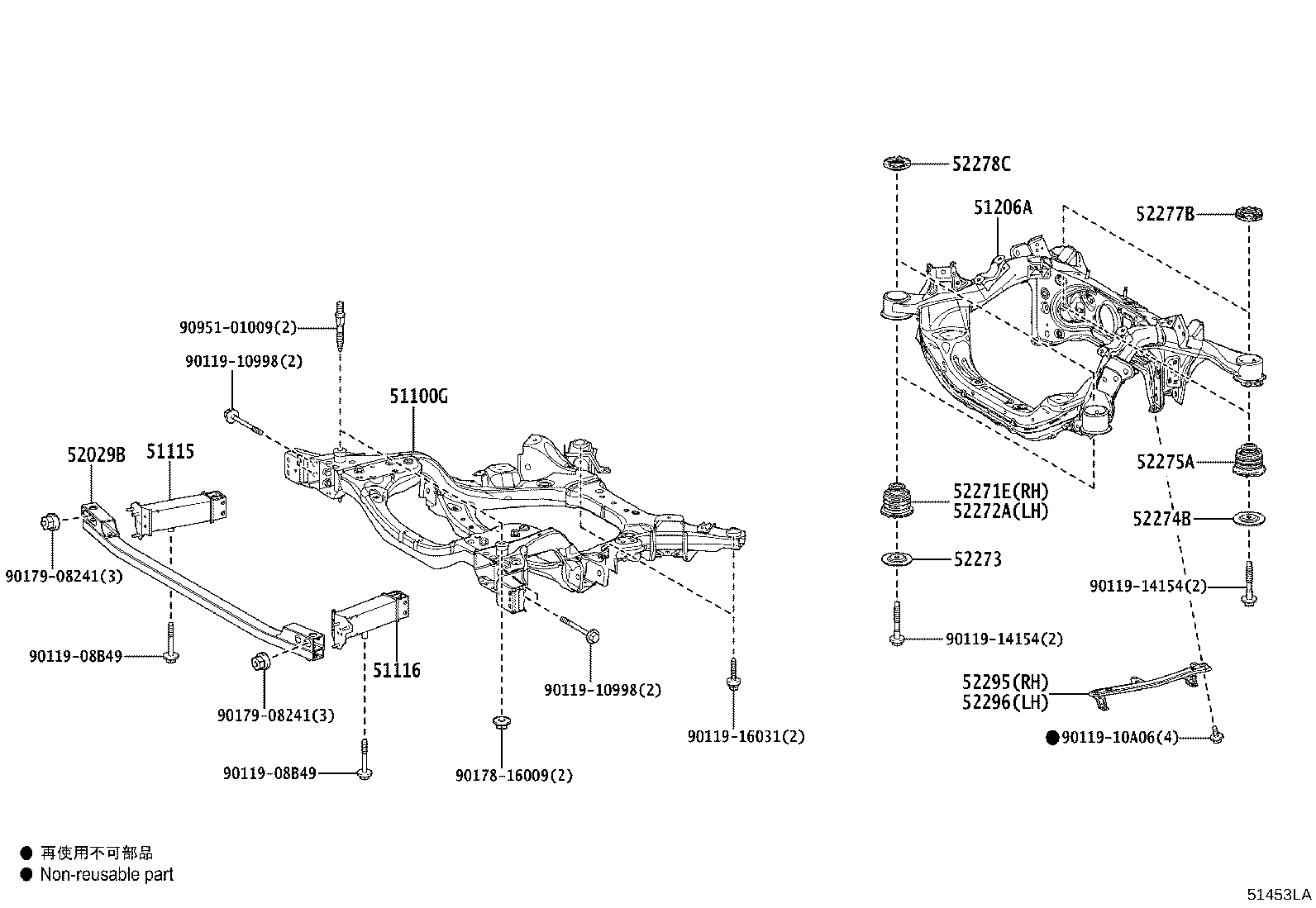

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51100G — Frame Assy, Front | ||||
| 51100-62011 |
Frame Assy, Front
2023-11 → —
|
KZSM30 | ¥71,100 | |
| 51115 — Rail, Frame Side, Rear RH | ||||
| 51107-62020 |
Rail, Frame Side, Rear RH
2023-11 → —
|
AZSH32,KZSM30 | ¥5,300 | |
| 51116 — Rail, Frame Side, Rear LH | ||||
| 51108-62020 |
Rail, Frame Side, Rear LH
2023-11 → —
|
AZSH32,KZSM30 | ¥5,300 | |
| 51206A — Member Sub-assy, Rear Suspension | ||||
| 51206-50060 |
Member Sub-assy, Rear Suspension
2023-11 → —
|
AZSH32 | ¥61,000 | |
| 51206-62020 |
Member Sub-assy, Rear Suspension
2023-11 → —
|
KZSM30 | ¥66,200 | |
| 52029B — Reinforcement Sub-assy, Front Bumper, NO.2 | ||||
| 52029-11010 |
Reinforcement Sub-assy, Front Bumper, NO.2
2023-11 → —
|
AZSH32,KZSM30 | ¥10,300 | |
| 52271E — Cushion, Rear Suspension Member Body Mounting, Front RH | ||||
| 52271-50070 |
Cushion, Rear Suspension Member Body Mounting, Front RH
2023-11 → —
|
AZSH32 | ¥3,500 | |
| 52271-62010 |
Cushion, Rear Suspension Member Body Mounting, Front RH
2023-11 → —
|
KZSM30 | ¥3,090 | |
| 52272A — Cushion, Rear Suspension Member Body Mounting, Front LH | ||||
| 52272-50030 |
Cushion, Rear Suspension Member Body Mounting, Front LH
2023-11 → —
|
AZSH32 | ¥3,500 | |
| 52272-62010 |
Cushion, Rear Suspension Member Body Mounting, Front LH
2023-11 → —
|
KZSM30 | ¥3,090 | |
| 52273 — Stopper, Rear Suspension Member, Lower | ||||
| 52274-30030 |
Stopper, Rear Suspension Member, Lower
2024-05 → —
|
KZSM30 | ¥840 | |
| 52274-62040 |
Stopper, Rear Suspension Member, Lower
2023-11 → 2024-04
ended
|
KZSM30 | ¥920 | |
| 52274B — Stopper, Rear Suspension Member, Rear Lower | ||||
| 52274-30020 |
Stopper, Rear Suspension Member, Rear Lower
2024-05 → —
|
AZSH32,KZSM30 | ¥840 | |
| 52274-50020 |
Stopper, Rear Suspension Member, Rear Lower
2023-11 → 2024-04
ended
|
AZSH32 | ¥840 | |
| 52274-62030 |
Stopper, Rear Suspension Member, Rear Lower
2023-11 → 2024-04
ended
|
KZSM30 | ¥920 | |
| 52275A — Cushion, Rear Suspension Member Body Mounting, Rear | ||||
| 52275-11010 |
Cushion, Rear Suspension Member Body Mounting, Rear
2023-11 → —
|
AZSH32,KZSM30 | ¥2,920 | |
| 52277B — Stopper, Rear Suspension Member, Rear Upper | ||||
| 52277-11010 |
Stopper, Rear Suspension Member, Rear Upper
2023-11 → —
|
AZSH32,KZSM30 | ¥630 | |
| 52278C — Stopper, Rear Suspension Member, Rear Lower | ||||
| 52278-50050 |
Stopper, Rear Suspension Member, Rear Lower
2023-11 → —
|
AZSH32 | ¥630 | |
| 52278-62020 |
Stopper, Rear Suspension Member, Rear Lower
2023-11 → —
|
KZSM30 | ¥630 | |
| 52295 — Brace, Rear Suspension Member, RH | ||||
| 52295-11010 |
Brace, Rear Suspension Member, RH
2023-11 → —
|
AZSH32 | ¥1,790 | |
| 52295-62010 |
Brace, Rear Suspension Member, RH
2023-11 → —
|
KZSM30 | ¥2,090 | |
| 52296 — Brace, Rear Suspension Member, LH | ||||
| 52296-11010 |
Brace, Rear Suspension Member, LH
2023-11 → —
|
AZSH32 | ¥1,630 | |
| 52296-62010 |
Brace, Rear Suspension Member, LH
2023-11 → —
|
KZSM30 | ¥2,090 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
