Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

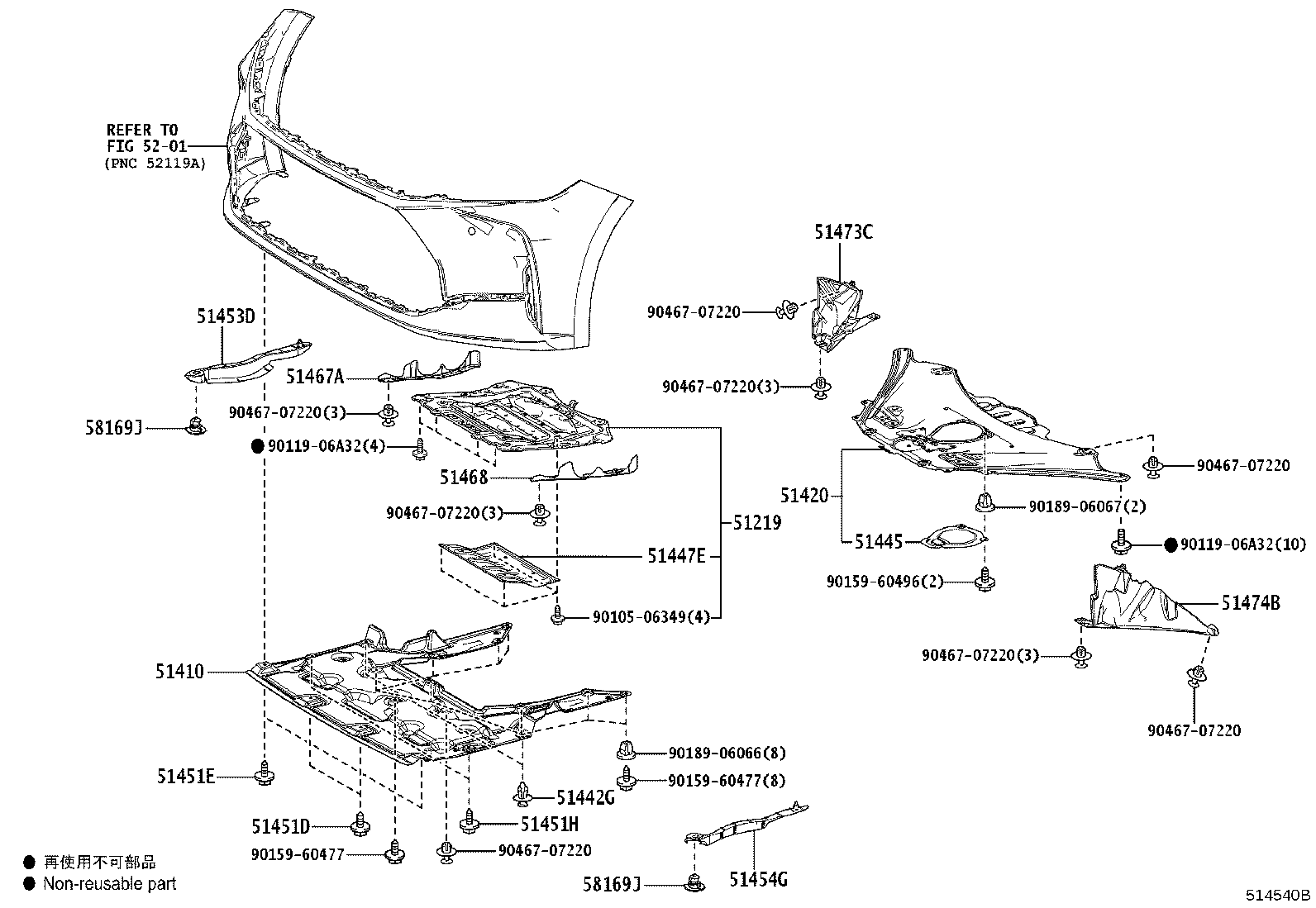

Exploded illustration 514540B 5201 — not listed in this catalogue 51410 — COVER ASSY, ENGINE UNDER, NO.1 (1 parts) 51420 — COVER ASSY, ENGINE UNDER, NO.2 (1 parts) 51445 — BRACKET, ENGINE UNDER COVER (1 parts) 51453D — COVER, ENGINE ROOM UNDER, RH (1 parts) 51454G — COVER, ENGINE ROOM UNDER, LH (1 parts) 51467A — SILENCER, SIDE RAIL INNER, NO.2 RH (1 parts) 51468 — SILENCER, SIDE RAIL INNER, NO.2 LH (1 parts) 51473C — COVER, ENGINE SIDE, RH (1 parts) 51474B — COVER, ENGINE SIDE, LH (1 parts) 58169J — PATCH, FRONT FLOOR, REAR (1 parts) 58169J — PATCH, FRONT FLOOR, REAR (1 parts) 51451D — SCREW, NO.1 (1 parts) 51451E — SCREW, NO.2 (1 parts) 51451H — SCREW, NO.3 (1 parts) 51442G — CLIP, ENGINE UNDER COVER, NO.1 (1 parts) 9015960496 — not listed in this catalogue 9018906067 — not listed in this catalogue 9015960477 — not listed in this catalogue 9015960477 — not listed in this catalogue 9018906066 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707220 — not listed in this catalogue 9011906A32 — not listed in this catalogue 9046707220 — not listed in this catalogue 9011906A32 — not listed in this catalogue 51219 — PROTECTOR, FRONT SUSPENSION MEMBER, LWR (2 parts) 9010506349 — not listed in this catalogue 51447E — REINFORCEMENT, ENGINE UNDER COVER (1 parts)
514540B · 17 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
51219 — Protector, Front Suspension Member, Lwr
51202-50020 Protector, Front Suspension Member, Lwr
2023-11 → —
AZSH32 ¥11,500
51202-50030 Protector, Front Suspension Member, Lwr
2023-11 → —
KZSM30 ¥12,700
51410 — Cover Assy, Engine Under, NO.1
51410-30260 Cover Assy, Engine Under, NO.1
2023-11 → —
AZSH32 ¥11,400
51420 — Cover Assy, Engine Under, NO.2
51420-30080 Cover Assy, Engine Under, NO.2
2023-11 → —
AZSH32 ¥17,400
51442G — Clip, Engine Under Cover, NO.1
90467-07220 Clip, Engine Under Cover, NO.1
2023-11 → —
AZSH32,KZSM30 ¥80
51445 — Bracket, Engine Under Cover
51445-11010 Bracket, Engine Under Cover
2023-11 → —
AZSH32 ¥1,110
51447E — Reinforcement, Engine Under Cover
51447-50030 Reinforcement, Engine Under Cover
2023-11 → —
AZSH32 ¥3,750
51451D — Screw, NO.1
90159-60477 Screw, NO.1
2023-11 → —
AZSH32,KZSM30 ¥70
51451E — Screw, NO.2
90159-60477 Screw, NO.2
2023-11 → —
AZSH32,KZSM30 ¥70
51451H — Screw, NO.3
90159-60477 Screw, NO.3
2023-11 → —
AZSH32,KZSM30 ¥70
51453D — Cover, Engine Room Under, RH
51453-11010 Cover, Engine Room Under, RH
2023-11 → —
AZSH32 ¥1,040
51454G — Cover, Engine Room Under, LH
51454-11020 Cover, Engine Room Under, LH
2023-11 → —
AZSH32 ¥1,040
51467A — Silencer, Side Rail Inner, NO.2 RH
51467-11010 Silencer, Side Rail Inner, NO.2 RH
2023-11 → —
AZSH32 ¥710
51468 — Silencer, Side Rail Inner, NO.2 LH
51468-11010 Silencer, Side Rail Inner, NO.2 LH
2023-11 → —
AZSH32 ¥710
51473C — Cover, Engine Side, RH
51473-11010 Cover, Engine Side, RH
2023-11 → —
AZSH32 ¥2,090
51474B — Cover, Engine Side, LH
51474-11010 Cover, Engine Side, LH
2023-11 → —
AZSH32 ¥2,090
58169J — Patch, Front Floor, Rear
58169-48010 Patch, Front Floor, Rear
2023-11 → —
AZSH32,KZSM30 ¥210
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
