Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

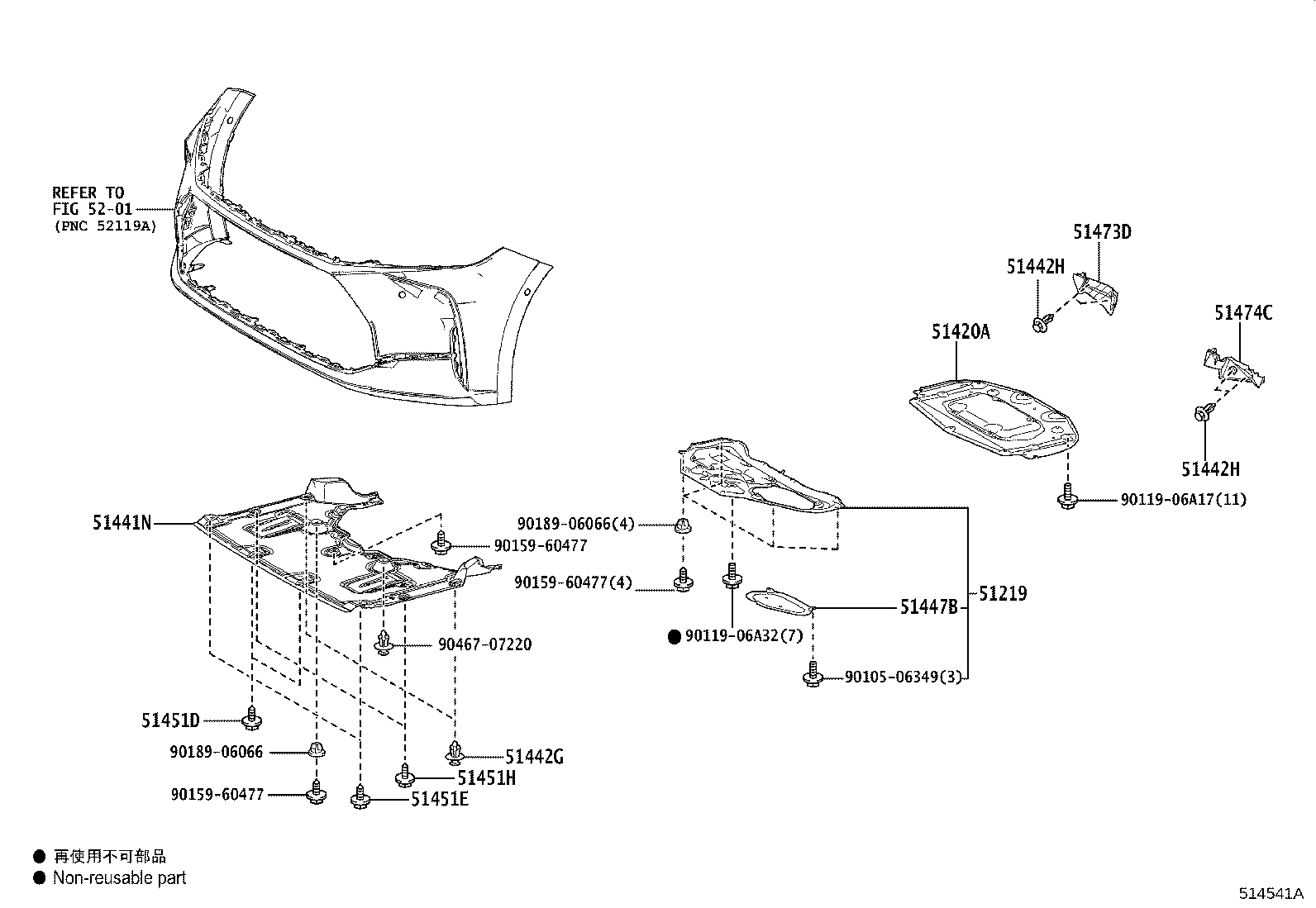

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51219 — Protector, Front Suspension Member, Lwr | ||||
| 51202-50020 |
Protector, Front Suspension Member, Lwr
2023-11 → —
|
AZSH32 | ¥11,500 | |
| 51202-50030 |
Protector, Front Suspension Member, Lwr
2023-11 → —
|
KZSM30 | ¥12,700 | |
| 51420A — Cover Assy, Front Compartmemt Under | ||||
| 51420-62010 |
Cover Assy, Front Compartmemt Under
2023-11 → —
|
KZSM30 | ¥7,500 | |
| 51441N — Cover, Front Compartment Under | ||||
| 51441-30590 |
Cover, Front Compartment Under
2023-11 → —
|
KZSM30 | ¥8,200 | |
| 51442G — Clip, Engine Under Cover, NO.1 | ||||
| 90467-07220 |
Clip, Engine Under Cover, NO.1
2023-11 → —
|
AZSH32,KZSM30 | ¥80 | |
| 51442H — Clip, Engine Under Cover, NO.2 | ||||
| 90467-07220 |
Clip, Engine Under Cover, NO.2
2023-11 → —
|
KZSM30 | ¥80 | |
| 51447B — Protector, Oil Pan | ||||
| 51447-50020 |
Protector, Oil Pan
2023-11 → —
|
KZSM30 | ¥1,750 | |
| 51451D — Screw, NO.1 | ||||
| 90159-60477 |
Screw, NO.1
2023-11 → —
|
AZSH32,KZSM30 | ¥70 | |
| 51451E — Screw, NO.2 | ||||
| 90159-60477 |
Screw, NO.2
2023-11 → —
|
AZSH32,KZSM30 | ¥70 | |
| 51451H — Screw, NO.3 | ||||
| 90159-60477 |
Screw, NO.3
2023-11 → —
|
AZSH32,KZSM30 | ¥70 | |
| 51473D — Cover, Front Compartment Side, RH | ||||
| 51473-62010 |
Cover, Front Compartment Side, RH
2023-11 → —
|
KZSM30 | ¥1,040 | |
| 51474C — Cover, Front Compartment Side, LH | ||||
| 51474-62010 |
Cover, Front Compartment Side, LH
2023-11 → —
|
KZSM30 | ¥1,040 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
