Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

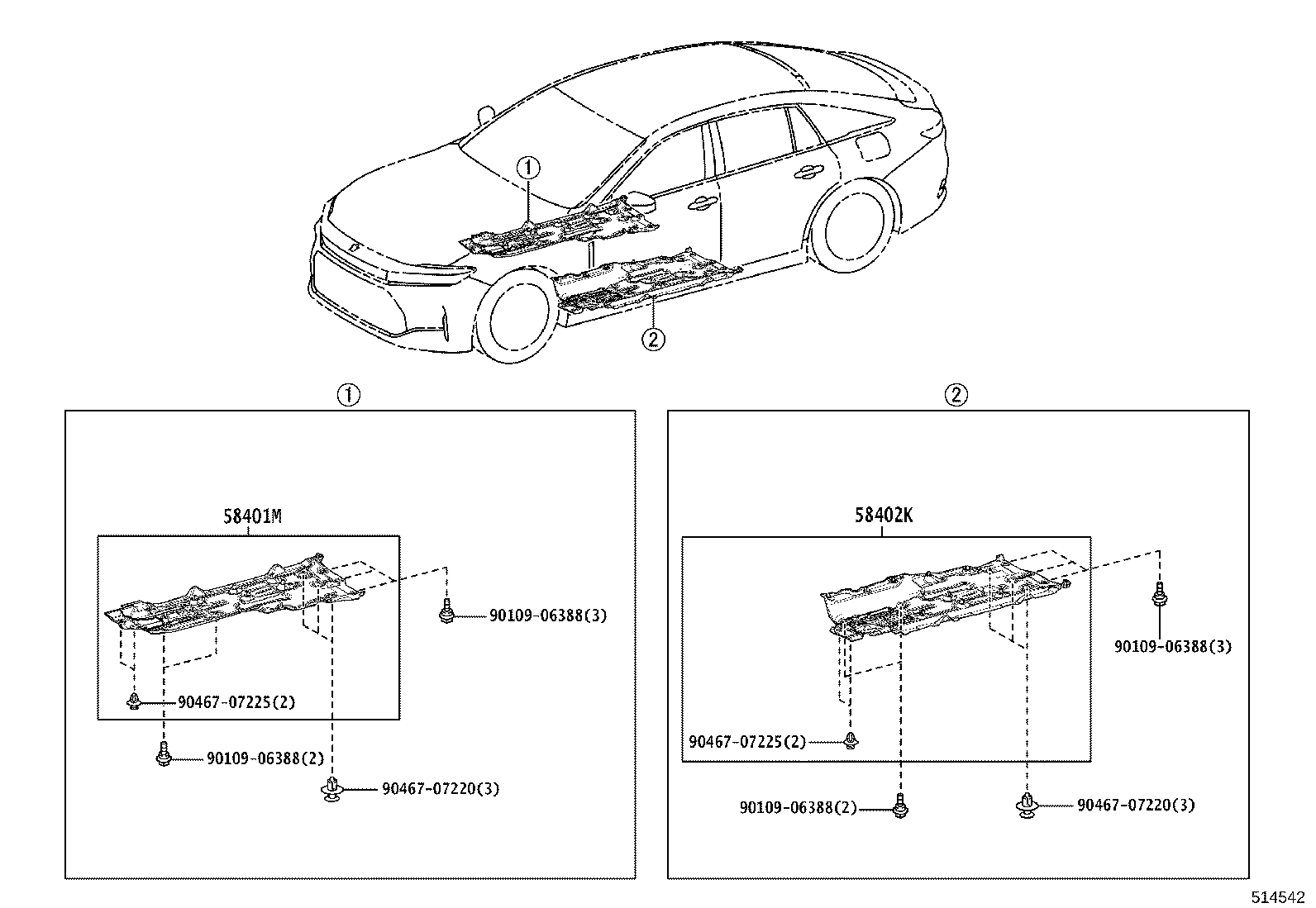

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58401M — Board Sub-assy, Floor, NO.1 | ||||
| 58401-30060 |
Board Sub-assy, Floor, NO.1
2023-11 → —
|
AZSH32 | ¥10,100 | |
| 58401-30070 |
Board Sub-assy, Floor, NO.1
2023-11 → —
|
KZSM30 | ¥11,200 | |
| 58402K — Board Sub-assy, Floor, NO.2 | ||||
| 58402-30060 |
Board Sub-assy, Floor, NO.2
2023-11 → —
|
AZSH32 | ¥11,500 | |
| 58402-30070 |
Board Sub-assy, Floor, NO.2
2023-11 → —
|
KZSM30 | ¥11,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
