Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

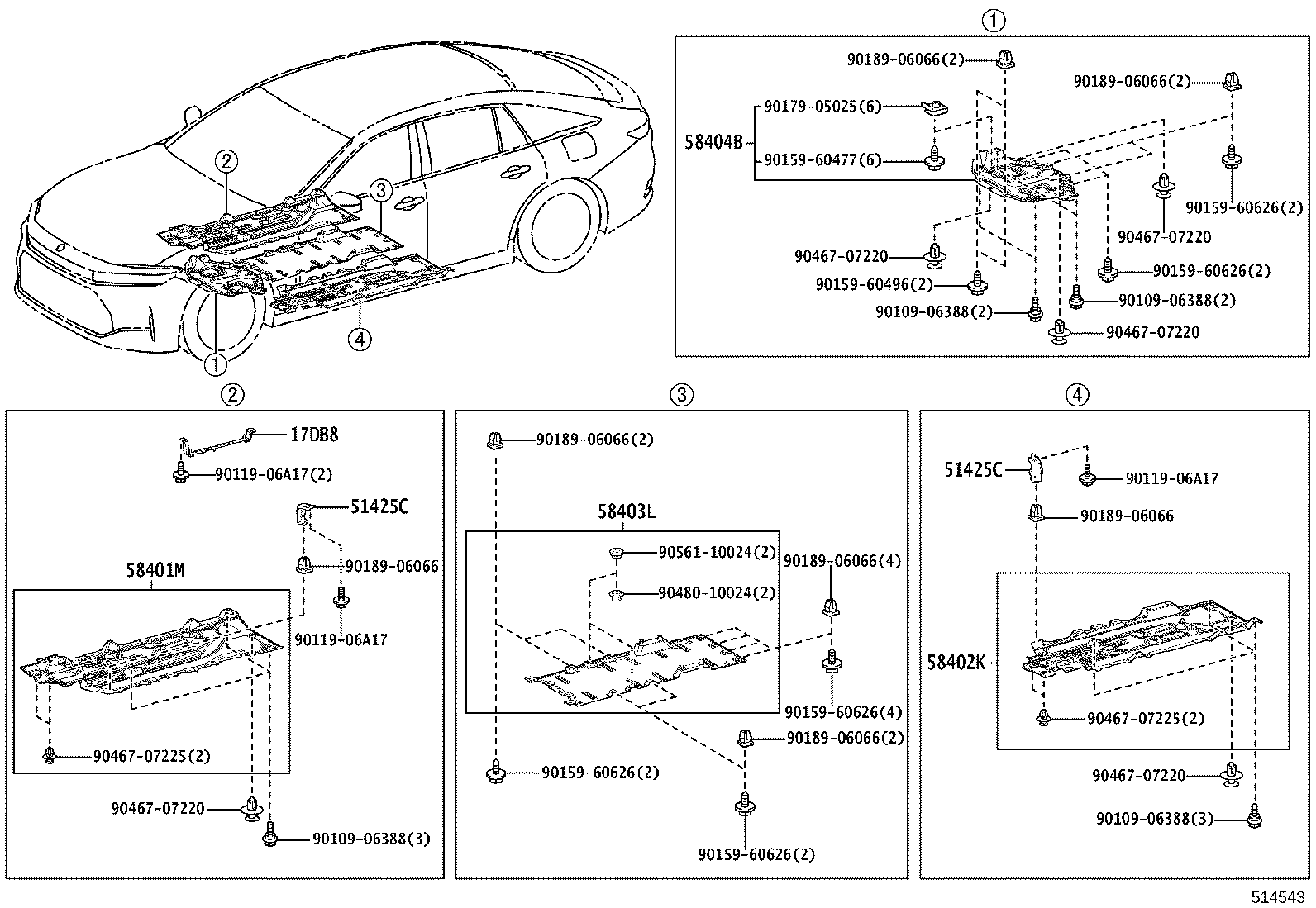

Exploded illustration 514543 9046707220 — not listed in this catalogue 58404B — BOARD SUB-ASSY, REAR FLOOR, NO.4 (1 parts) 9015960477 — not listed in this catalogue 9017905025 — not listed in this catalogue 9010906388 — not listed in this catalogue 9015960496 — not listed in this catalogue 9046707220 — not listed in this catalogue 9018906066 — not listed in this catalogue 9010906388 — not listed in this catalogue 17DB8 — BRACKET, FLOOR UNDER COVER, NO.1 (1 parts) 58401M — BOARD SUB-ASSY, FLOOR, NO.1 (2 parts) 51425C — BRACKET, FLOOR UNDER COVER, NO.2 (1 parts) 58402K — BOARD SUB-ASSY, FLOOR, NO.2 (2 parts) 9046707225 — not listed in this catalogue 9046707225 — not listed in this catalogue 9010906388 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9011906A17 — not listed in this catalogue 9010906388 — not listed in this catalogue 9018906066 — not listed in this catalogue 9018906066 — not listed in this catalogue 51425C — BRACKET, FLOOR UNDER COVER, NO.2 (1 parts) 9011906A17 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707220 — not listed in this catalogue 9018906066 — not listed in this catalogue 9015960626 — not listed in this catalogue 9015960626 — not listed in this catalogue 9015960626 — not listed in this catalogue 9015960626 — not listed in this catalogue 9015960626 — not listed in this catalogue 58403L — BOARD SUB-ASSY, REAR FLOOR, NO.3 (1 parts) 9048010024 — not listed in this catalogue 9056110024 — not listed in this catalogue 9018906066 — not listed in this catalogue 9018906066 — not listed in this catalogue 9018906066 — not listed in this catalogue 9046707220 — not listed in this catalogue
514543 · 7 callouts, 31 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
8 parts on this figure
Part number Description Fitment Price
17DB8 — Bracket, Floor Under Cover, NO.1
17DB8-77030 Bracket, Floor Under Cover, NO.1
2023-11 → —
MOTOR KZSM30 ¥2,340
51425C — Bracket, Floor Under Cover, NO.2
51425-62010 Bracket, Floor Under Cover, NO.2
2023-11 → —
KZSM30 ¥440
58401M — Board Sub-assy, Floor, NO.1
58401-30060 Board Sub-assy, Floor, NO.1
2023-11 → —
AZSH32 ¥10,100
58401-30070 Board Sub-assy, Floor, NO.1
2023-11 → —
KZSM30 ¥11,200
58402K — Board Sub-assy, Floor, NO.2
58402-30060 Board Sub-assy, Floor, NO.2
2023-11 → —
AZSH32 ¥11,500
58402-30070 Board Sub-assy, Floor, NO.2
2023-11 → —
KZSM30 ¥11,200
58403L — Board Sub-assy, Rear Floor, NO.3
58403-30010 Board Sub-assy, Rear Floor, NO.3
2023-11 → —
KZSM30 ¥8,500
58404B — Board Sub-assy, Rear Floor, NO.4
58404-62010 Board Sub-assy, Rear Floor, NO.4
2023-11 → —
KZSM30 ¥5,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
