Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

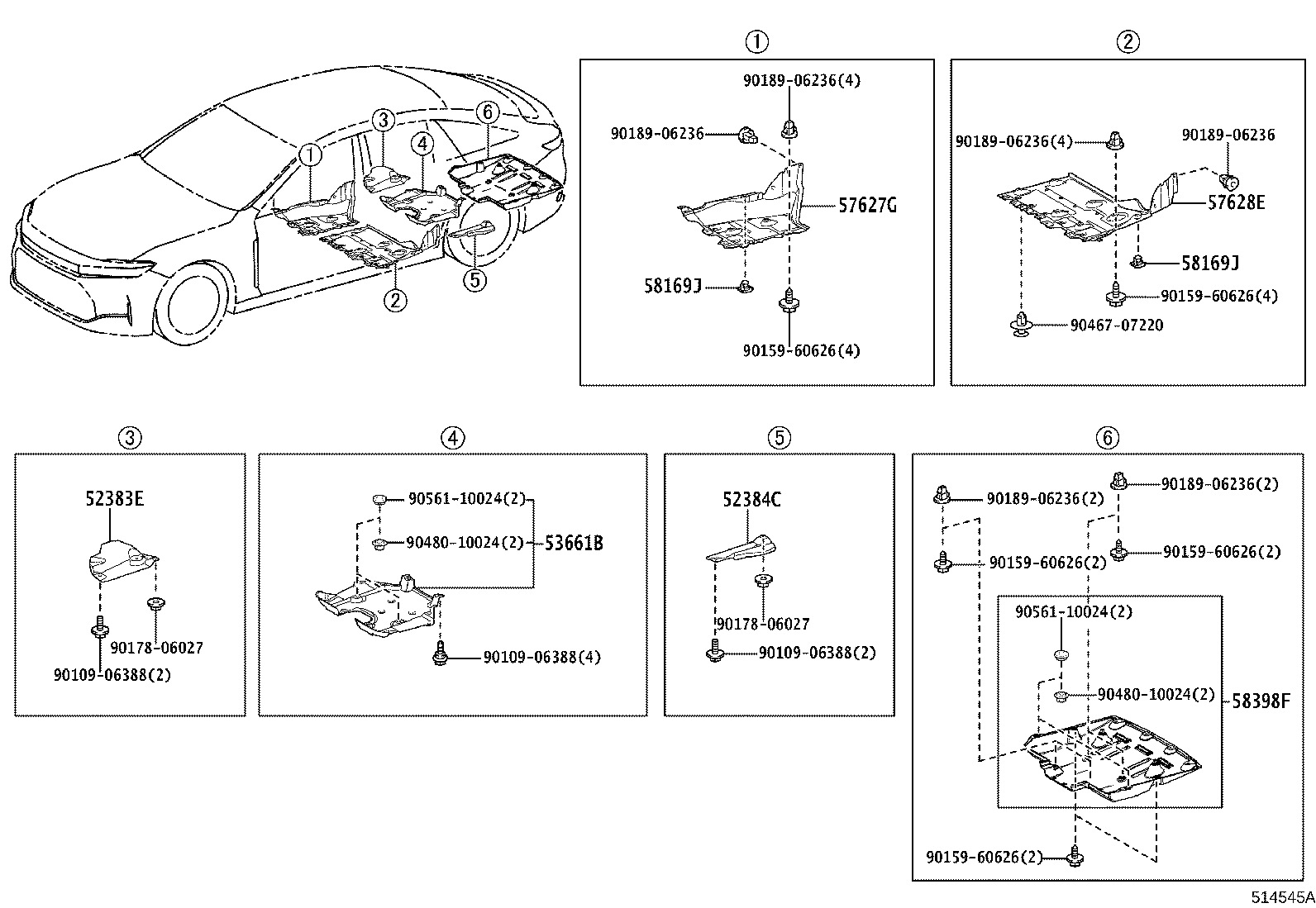

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52383E — Protector, Differential Support, NO.1 | ||||
| 52383-11010 |
Protector, Differential Support, NO.1
2023-11 → —
|
AZSH32 | ¥4,030 | |
| 52383-62010 |
Protector, Differential Support, NO.1
2023-11 → —
|
KZSM30 | ¥3,620 | |
| 52384C — Protector, Differential Support, NO.2 | ||||
| 52384-11010 |
Protector, Differential Support, NO.2
2023-11 → —
|
AZSH32 | ¥4,030 | |
| 52384-62010 |
Protector, Differential Support, NO.2
2023-11 → —
|
KZSM30 | ¥3,440 | |
| 53661B — Cover, Rear Suspension Brace | ||||
| 53661-62010 |
Cover, Rear Suspension Brace
2023-11 → —
|
KZSM30 | ¥5,500 | |
| 57627G — Cover, Rear Floor Side Member, RH | ||||
| 57627-11010 |
Cover, Rear Floor Side Member, RH
2023-11 → —
|
AZSH32 | ¥7,800 | |
| 57627-62010 |
Cover, Rear Floor Side Member, RH
2023-11 → —
|
KZSM30 | ¥5,100 | |
| 57628E — Cover, Rear Floor Side Member, LH | ||||
| 57628-11010 |
Cover, Rear Floor Side Member, LH
2023-11 → —
|
AZSH32 | ¥7,800 | |
| 57628-62010 |
Cover, Rear Floor Side Member, LH
2023-11 → —
|
KZSM30 | ¥7,200 | |
| 58169J — Patch, Front Floor, Rear | ||||
| 58169-48010 |
Patch, Front Floor, Rear
2023-11 → —
|
AZSH32,KZSM30 | ¥210 | |
| 58398F — Cover, Floor Under, NO.1 | ||||
| 58398-30130 |
Cover, Floor Under, NO.1
2023-11 → —
|
AZSH32 | ¥7,200 | |
| 58398-62020 |
Cover, Floor Under, NO.1
2023-11 → —
|
KZSM30 | ¥9,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
