Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

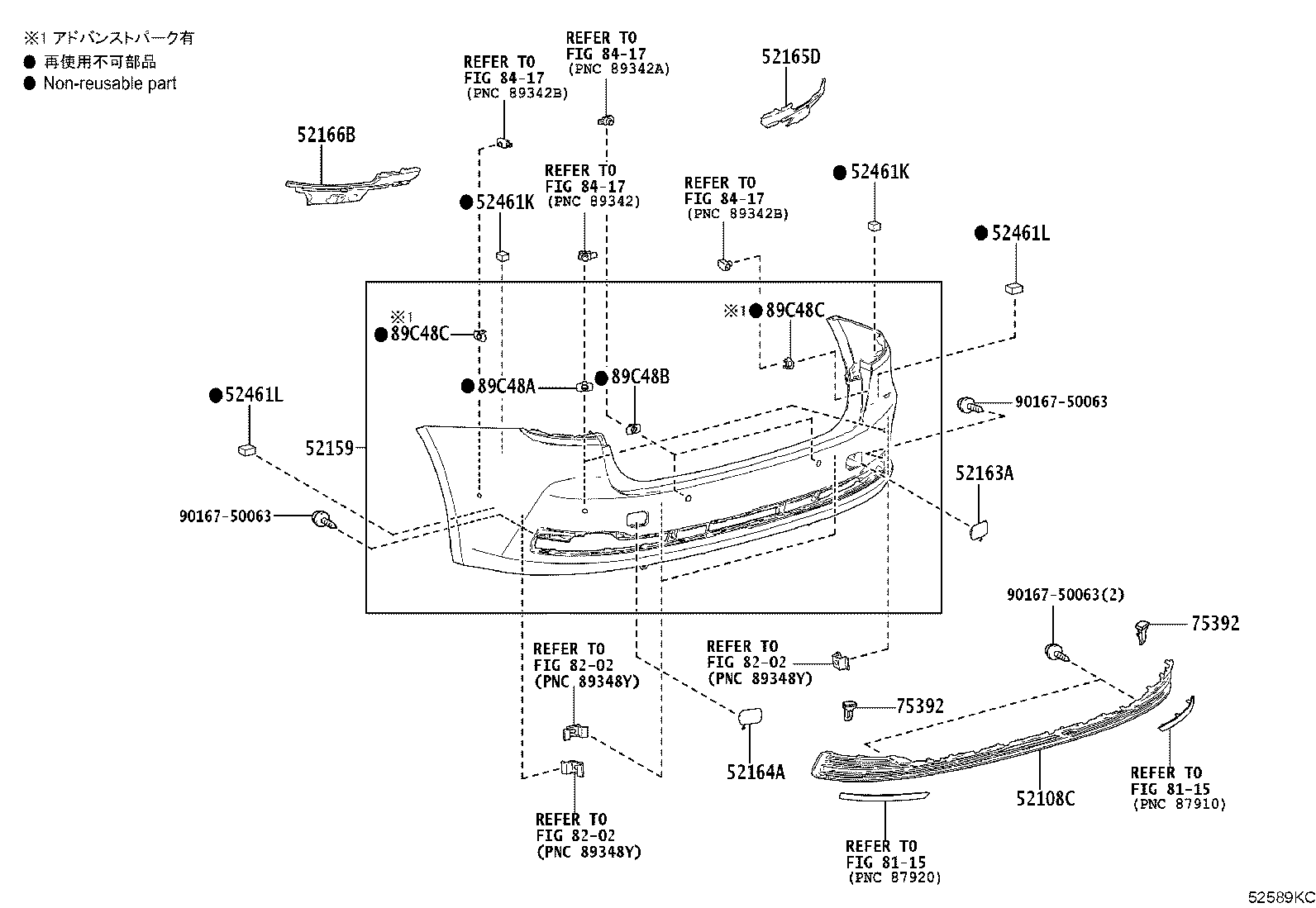

Exploded illustration 52589KC 52164A — PLATE, REAR BUMPER, LH (20 parts) 52163A — PLATE, REAR BUMPER, RH (20 parts) 52108C — EXTENSION SUB-ASSY, REAR BUMPER, CENTER (3 parts) 8115 — not listed in this catalogue 8115 — not listed in this catalogue 89C48B — RETAINER, ULTRASONIC SENSOR, REAR CENTER (10 parts) 89C48A — RETAINER, ULTRASONIC SENSOR, REAR CORNER (1 parts) 89C48C — RETAINER, ULTRASONIC SENSOR, REAR SIDE (1 parts) 89C48C — RETAINER, ULTRASONIC SENSOR, REAR SIDE (1 parts) 8417 — not listed in this catalogue 8417 — not listed in this catalogue 8417 — not listed in this catalogue 8417 — not listed in this catalogue 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 52461K — PAD, REAR BUMPER, NO.1 (1 parts) 52461L — PAD, REAR BUMPER, NO.2 (1 parts) 52159 — COVER, REAR BUMPER (30 parts) 75392 — RETAINER, OUTSIDE MOULDING (1 parts) 75392 — RETAINER, OUTSIDE MOULDING (1 parts) 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 52165D — EXTENSION, REAR BUMPER CORNER, RH (1 parts) 52166B — EXTENSION, REAR BUMPER CORNER, LH (1 parts) 52461K — PAD, REAR BUMPER, NO.1 (1 parts) 52461L — PAD, REAR BUMPER, NO.2 (1 parts)
52589KC · 16 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
90 parts on this figure
Part number Description Fitment Price
52108C — Extension Sub-assy, Rear Bumper, Center
52108-30160 note Extension Sub-assy, Rear Bumper, Center
2023-11 → —
AZSH32,KZSM30 ¥23,900
52108-30170 note Extension Sub-assy, Rear Bumper, Center
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥23,900
52108-30170 note Extension Sub-assy, Rear Bumper, Center
2023-11 → —
AZSH32,KZSM30 Z ¥23,900
52159 — Cover, Rear Bumper
52159-3A949-A0 note Cover, Rear Bumper
2023-11 → 2025-06 ended
AZSH32 Z ¥73,200
52159-3A949-A0 note Cover, Rear Bumper
2023-11 → —
AZSH32,KZSM30 Z ¥73,200
52159-3A949-B1 note Cover, Rear Bumper
2023-11 → —
AZSH32,KZSM30 Z ¥73,200
52159-3A949-B1 note Cover, Rear Bumper
2023-11 → —
AZSH32 Z ¥73,200
52159-3A949-B3 note Cover, Rear Bumper
2023-11 → —
AZSH32 Z ¥73,200
52159-3A949-B3 note Cover, Rear Bumper
2023-11 → —
AZSH32,KZSM30 Z ¥73,200
52159-3A949-B4 note Cover, Rear Bumper
2023-11 → —
AZSH32 Z ¥73,200
52159-3A949-B4 note Cover, Rear Bumper
2023-11 → —
AZSH32,KZSM30 Z ¥73,200
52159-3A949-C1 note Cover, Rear Bumper
2023-11 → —
AZSH32,KZSM30 Z ¥73,200
52159-3A949-C1 note Cover, Rear Bumper
2023-11 → 2025-06 ended
AZSH32 Z ¥73,200
52159-3A949-E0 note Cover, Rear Bumper
2023-11 → —
AZSH32 Z ¥73,200
52159-3A949-E0 note Cover, Rear Bumper
2023-11 → —
AZSH32,KZSM30 Z ¥73,200
52159-3A951-A0 note Cover, Rear Bumper
2023-11 → —
AZSH32 G ¥73,200
52159-3A951-A0 note Cover, Rear Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥73,200
52159-3A951-A0 note Cover, Rear Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥73,200
52159-3A951-B0 note Cover, Rear Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥73,200
52159-3A951-B0 note Cover, Rear Bumper
2023-11 → —
AZSH32 G ¥73,200
52159-3A951-B0 note Cover, Rear Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥73,200
52159-3A951-B1 note Cover, Rear Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥73,200
52159-3A951-B1 note Cover, Rear Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥73,200
52159-3A951-B1 note Cover, Rear Bumper
2023-11 → —
AZSH32 G ¥73,200
52159-3A951-B2 note Cover, Rear Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥73,200
52159-3A951-B2 note Cover, Rear Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥73,200
52159-3A951-B2 note Cover, Rear Bumper
2023-11 → —
AZSH32 G ¥73,200
52159-3A951-C0 note Cover, Rear Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥73,200
52159-3A951-C0 note Cover, Rear Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥73,200
52159-3A951-C0 note Cover, Rear Bumper
2023-11 → —
AZSH32 G ¥73,200
52159-3A951-E0 note Cover, Rear Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥73,200
52159-3A951-E0 note Cover, Rear Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥73,200
52159-3A951-E0 note Cover, Rear Bumper
2023-11 → —
AZSH32 G ¥73,200
52163A — Plate, Rear Bumper, RH
52163-30140-A0 note Plate, Rear Bumper, RH
2023-11 → —
KZSM30 ¥600
52163-30140-A0 note Plate, Rear Bumper, RH
2023-11 → —
AZSH32,KZSM30 ¥600
52163-30140-A0 note Plate, Rear Bumper, RH
2023-11 → 2025-06 ended
KZSM30 ¥600
52163-30140-A0 note Plate, Rear Bumper, RH
2023-11 → 2025-06 ended
KZSM30 ¥600
52163-30140-B0 note Plate, Rear Bumper, RH
2023-11 → 2025-06 ended
KZSM30 ¥600
52163-30140-B0 note Plate, Rear Bumper, RH
2023-11 → 2025-06 ended
KZSM30 ¥600
52163-30140-B0 note Plate, Rear Bumper, RH
2023-11 → —
AZSH32,KZSM30 ¥600
52163-30140-B1 note Plate, Rear Bumper, RH
2023-11 → 2025-06 ended
KZSM30 ¥600
52163-30140-B1 note Plate, Rear Bumper, RH
2023-11 → 2025-06 ended
KZSM30 ¥600
52163-30140-B1 note Plate, Rear Bumper, RH
2023-11 → —
AZSH32,KZSM30 ¥600
52163-30140-B3 note Plate, Rear Bumper, RH
2023-11 → 2025-06 ended
KZSM30 ¥600
52163-30140-B3 note Plate, Rear Bumper, RH
2023-11 → 2025-06 ended
KZSM30 ¥600
52163-30140-B3 note Plate, Rear Bumper, RH
2023-11 → —
AZSH32,KZSM30 ¥600
52163-30140-C0 note Plate, Rear Bumper, RH
2023-11 → 2025-06 ended
KZSM30 ¥600
52163-30140-C0 note Plate, Rear Bumper, RH
2023-11 → 2025-06 ended
KZSM30 ¥600
52163-30140-C0 note Plate, Rear Bumper, RH
2023-11 → —
KZSM30 ¥600
52163-30140-C0 note Plate, Rear Bumper, RH
2023-11 → —
AZSH32,KZSM30 ¥600
52163-30140-E0 note Plate, Rear Bumper, RH
2023-11 → —
AZSH32,KZSM30 ¥600
52163-30140-E0 note Plate, Rear Bumper, RH
2023-11 → 2025-06 ended
KZSM30 ¥600
52163-30140-E0 note Plate, Rear Bumper, RH
2023-11 → 2025-06 ended
KZSM30 ¥600
52164A — Plate, Rear Bumper, LH
52164-30180-A0 note Plate, Rear Bumper, LH
2023-11 → 2025-06 ended
KZSM30 ¥600
52164-30180-A0 note Plate, Rear Bumper, LH
2023-11 → 2025-06 ended
KZSM30 ¥600
52164-30180-A0 note Plate, Rear Bumper, LH
2023-11 → —
KZSM30 ¥600
52164-30180-A0 note Plate, Rear Bumper, LH
2023-11 → —
AZSH32,KZSM30 ¥600
52164-30180-B0 note Plate, Rear Bumper, LH
2023-11 → 2025-06 ended
KZSM30 ¥600
52164-30180-B0 note Plate, Rear Bumper, LH
2023-11 → 2025-06 ended
KZSM30 ¥600
52164-30180-B0 note Plate, Rear Bumper, LH
2023-11 → —
AZSH32,KZSM30 ¥600
52164-30180-B1 note Plate, Rear Bumper, LH
2023-11 → —
AZSH32,KZSM30 ¥600
52164-30180-B1 note Plate, Rear Bumper, LH
2023-11 → 2025-06 ended
KZSM30 ¥600
52164-30180-B1 note Plate, Rear Bumper, LH
2023-11 → 2025-06 ended
KZSM30 ¥600
52164-30180-B3 note Plate, Rear Bumper, LH
2023-11 → 2025-06 ended
KZSM30 ¥600
52164-30180-B3 note Plate, Rear Bumper, LH
2023-11 → —
AZSH32,KZSM30 ¥600
52164-30180-B3 note Plate, Rear Bumper, LH
2023-11 → 2025-06 ended
KZSM30 ¥600
52164-30180-C0 note Plate, Rear Bumper, LH
2023-11 → —
AZSH32,KZSM30 ¥600
52164-30180-C0 note Plate, Rear Bumper, LH
2023-11 → —
KZSM30 ¥600
52164-30180-C0 note Plate, Rear Bumper, LH
2023-11 → 2025-06 ended
KZSM30 ¥600
52164-30180-C0 note Plate, Rear Bumper, LH
2023-11 → 2025-06 ended
KZSM30 ¥600
52164-30180-E0 note Plate, Rear Bumper, LH
2023-11 → 2025-06 ended
KZSM30 ¥600
52164-30180-E0 note Plate, Rear Bumper, LH
2023-11 → —
AZSH32,KZSM30 ¥600
52164-30180-E0 note Plate, Rear Bumper, LH
2023-11 → 2025-06 ended
KZSM30 ¥600
52165D — Extension, Rear Bumper Corner, RH
52165-30210 Extension, Rear Bumper Corner, RH
2023-11 → —
AZSH32 ¥1,820
52166B — Extension, Rear Bumper Corner, LH
52166-30230 Extension, Rear Bumper Corner, LH
2023-11 → —
AZSH32 ¥1,820
52461K — Pad, Rear Bumper, NO.1
52462-30090 Pad, Rear Bumper, NO.1
2023-11 → —
AZSH32,KZSM30 ¥180
52461L — Pad, Rear Bumper, NO.2
52462-30130 Pad, Rear Bumper, NO.2
2023-11 → —
AZSH32,KZSM30 ¥250
75392 — Retainer, Outside Moulding
75392-35220 Retainer, Outside Moulding
2023-11 → —
AZSH32,KZSM30 ¥130
89C48A — Retainer, Ultrasonic Sensor, Rear Corner
89348-30470 Retainer, Ultrasonic Sensor, Rear Corner
2023-11 → —
AZSH32,KZSM30 —
89C48B — Retainer, Ultrasonic Sensor, Rear Center
89348-46080-A1 note Retainer, Ultrasonic Sensor, Rear Center
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z —
89348-46080-A1 note Retainer, Ultrasonic Sensor, Rear Center
2023-11 → —
AZSH32 G —
89348-46080-A1 note Retainer, Ultrasonic Sensor, Rear Center
2023-11 → —
AZSH32,KZSM30 Z —
89348-46080-B0 note Retainer, Ultrasonic Sensor, Rear Center
2023-11 → —
AZSH32,KZSM30 —
89348-46080-B1 note Retainer, Ultrasonic Sensor, Rear Center
2023-11 → —
AZSH32,KZSM30 —
89348-46080-B2 note Retainer, Ultrasonic Sensor, Rear Center
2023-11 → —
AZSH32,KZSM30 —
89348-46080-C3 note Retainer, Ultrasonic Sensor, Rear Center
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z —
89348-46080-C3 note Retainer, Ultrasonic Sensor, Rear Center
2023-11 → —
AZSH32,KZSM30 Z —
89348-46080-C3 note Retainer, Ultrasonic Sensor, Rear Center
2023-11 → —
AZSH32 G —
89348-46080-E1 note Retainer, Ultrasonic Sensor, Rear Center
2023-11 → —
AZSH32,KZSM30 —
89C48C — Retainer, Ultrasonic Sensor, Rear Side
89348-30470 Retainer, Ultrasonic Sensor, Rear Side
2023-11 → —
AZSH32,KZSM30 Z —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
