Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

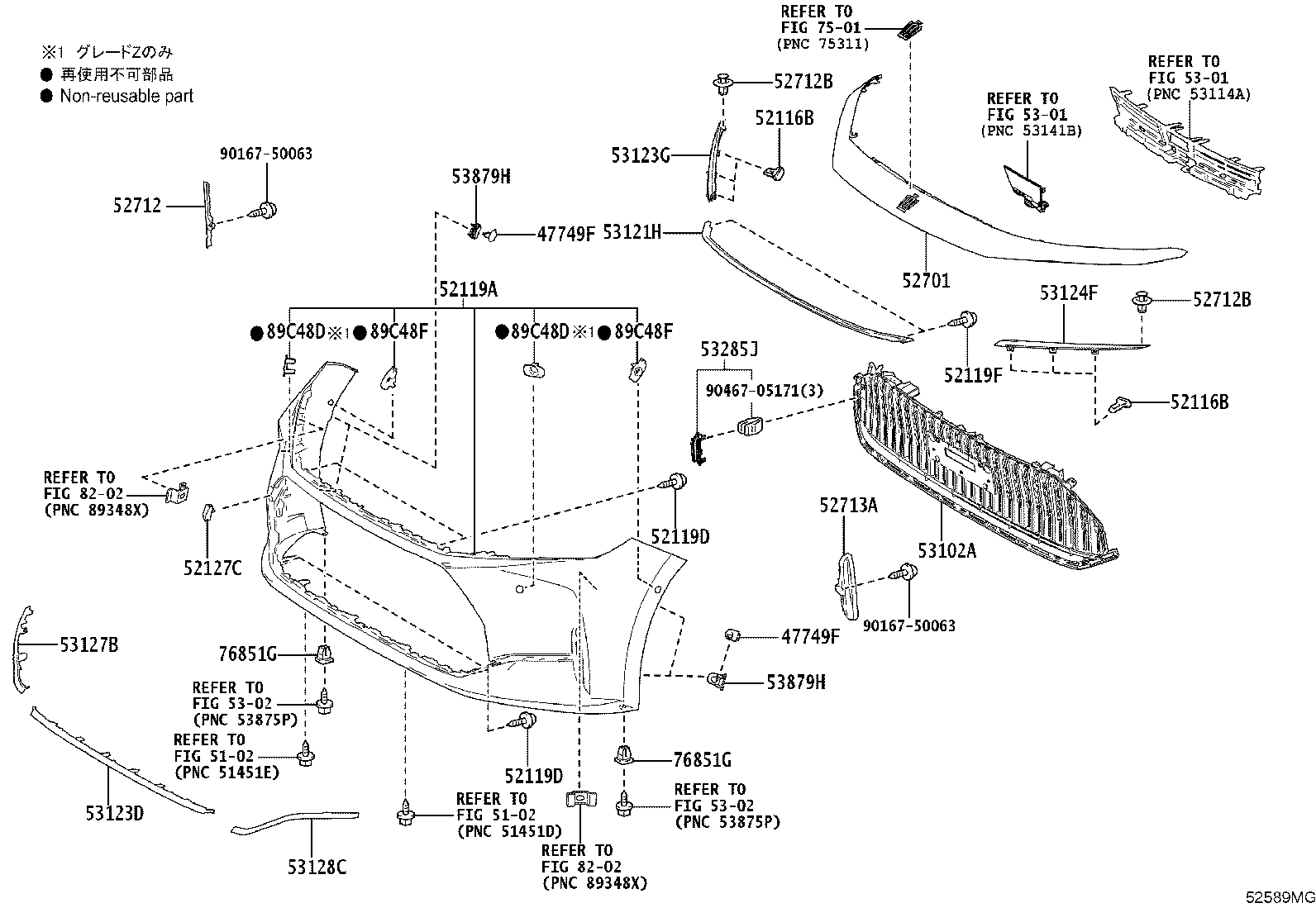

Exploded illustration 52589MG 53128C — MOULDING, RADIATOR GRILLE, NO.8 (3 parts) 5302 — not listed in this catalogue 5302 — not listed in this catalogue 5102 — not listed in this catalogue 52119A — COVER, FRONT BUMPER (24 parts) 52701 — MOULDING SUB-ASSY, FRONT BUMPER (10 parts) 52712 — MOULDING, FRONT BUMPER SIDE, RH (1 parts) 52713A — MOULDING, FRONT BUMPER SIDE, LH (1 parts) 5301 — not listed in this catalogue 5301 — not listed in this catalogue 53121H — MOULDING, RADIATOR GRILLE, NO.1 (3 parts) 76851G — GROMMET, SCREW, NO.1 (1 parts) 76851G — GROMMET, SCREW, NO.1 (1 parts) 53879H — RETAINER, FRONT FENDER LINER (1 parts) 53879H — RETAINER, FRONT FENDER LINER (1 parts) 52116B — RETAINER, FRONT BUMPER (1 parts) 52116B — RETAINER, FRONT BUMPER (1 parts) 52119F — SCREW, NO.3 (1 parts) 52119D — SCREW, NO.1 (1 parts) 52119D — SCREW, NO.1 (1 parts) 47749F — CLIP, PIN HOLD (1 parts) 47749F — CLIP, PIN HOLD (1 parts) 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 53123D — MOULDING, RADIATOR GRILLE, LOWER (3 parts) 52127C — COVER, FRONT BUMPER HOLE (10 parts) 53123G — MOULDING, RADIATOR GRILLE SIDE, RH (3 parts) 53124F — MOULDING, RADIATOR GRILLE SIDE, LH (3 parts) 53127B — MOULDING, RADIATOR GRILLE, NO.7 (3 parts) 53285J — COVER, FRONT BUMPER ARM HOLE, RH (1 parts) 9046705171 — not listed in this catalogue 52712B — CLIP, FRONT BUMPER MOULDING (1 parts) 52712B — CLIP, FRONT BUMPER MOULDING (1 parts) 53102A — GRILLE SUB-ASSY, RADIATOR, LWR (1 parts) 7501 — not listed in this catalogue 89C48F — RETAINER, ULTRASONIC SENSOR, FRONT SIDE (12 parts) 89C48D — RETAINER, ULTRASONIC SENSOR, FRONT CORNER (10 parts) 89C48D — RETAINER, ULTRASONIC SENSOR, FRONT CORNER (10 parts) 89C48F — RETAINER, ULTRASONIC SENSOR, FRONT SIDE (12 parts) 8202 — not listed in this catalogue 8202 — not listed in this catalogue 5102 — not listed in this catalogue
52589MG · 30 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
95 parts on this figure
Part number Description Fitment Price
47749F — Clip, Pin Hold
47749-30090 Clip, Pin Hold
2023-11 → —
AZSH32,KZSM30 ¥200
52116B — Retainer, Front Bumper
75392-35220 Retainer, Front Bumper
2023-11 → —
AZSH32,KZSM30 ¥130
52119A — Cover, Front Bumper
52119-3K929-A0 note Cover, Front Bumper
2023-11 → —
AZSH32 G ¥54,800
52119-3K929-A0 note Cover, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥54,800
52119-3K929-A0 note Cover, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥54,800
52119-3K929-B1 note Cover, Front Bumper
2023-11 → —
AZSH32 G ¥54,800
52119-3K929-B1 note Cover, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥54,800
52119-3K929-B1 note Cover, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥54,800
52119-3K929-B3 note Cover, Front Bumper
2023-11 → —
AZSH32 G ¥54,800
52119-3K929-B3 note Cover, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥54,800
52119-3K929-B3 note Cover, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥54,800
52119-3K929-B4 note Cover, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥54,800
52119-3K929-B4 note Cover, Front Bumper
2023-11 → —
AZSH32 G ¥54,800
52119-3K929-B4 note Cover, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥54,800
52119-3K929-C1 note Cover, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥54,800
52119-3K929-C1 note Cover, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥54,800
52119-3K929-C1 note Cover, Front Bumper
2023-11 → —
AZSH32 G ¥54,800
52119-3K929-E0 note Cover, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥54,800
52119-3K929-E0 note Cover, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥54,800
52119-3K929-E0 note Cover, Front Bumper
2023-11 → —
AZSH32 G ¥54,800
52119-3K931-A0 note Cover, Front Bumper
2023-11 → —
AZSH32,KZSM30 Z ¥59,900
52119-3K931-B0 note Cover, Front Bumper
2023-11 → —
AZSH32,KZSM30 Z ¥59,900
52119-3K931-B1 note Cover, Front Bumper
2023-11 → —
AZSH32,KZSM30 Z ¥59,900
52119-3K931-B2 note Cover, Front Bumper
2023-11 → —
AZSH32,KZSM30 Z ¥59,900
52119-3K931-C0 note Cover, Front Bumper
2023-11 → —
AZSH32,KZSM30 Z ¥59,900
52119-3K931-E0 note Cover, Front Bumper
2023-11 → —
AZSH32,KZSM30 Z ¥59,900
52119D — Screw, NO.1
90167-50063 Screw, NO.1
2023-11 → —
AZSH32,KZSM30 ¥60
52119F — Screw, NO.3
90167-40057 Screw, NO.3
2023-11 → —
AZSH32,KZSM30 ¥60
52127C — Cover, Front Bumper Hole
52127-30200-A0 note Cover, Front Bumper Hole
2023-11 → —
AZSH32,KZSM30 ¥450
52127-30200-B0 note Cover, Front Bumper Hole
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥450
52127-30200-B0 note Cover, Front Bumper Hole
2023-11 → —
AZSH32,KZSM30 Z ¥450
52127-30200-B0 note Cover, Front Bumper Hole
2023-11 → —
AZSH32 G ¥450
52127-30200-B1 note Cover, Front Bumper Hole
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥450
52127-30200-B1 note Cover, Front Bumper Hole
2023-11 → —
AZSH32,KZSM30 Z ¥450
52127-30200-B1 note Cover, Front Bumper Hole
2023-11 → —
AZSH32 G ¥450
52127-30200-B3 note Cover, Front Bumper Hole
2023-11 → —
AZSH32,KZSM30 ¥450
52127-30200-C0 note Cover, Front Bumper Hole
2023-11 → —
AZSH32,KZSM30 ¥450
52127-30200-E0 note Cover, Front Bumper Hole
2023-11 → —
AZSH32,KZSM30 ¥450
52701 — Moulding Sub-assy, Front Bumper
52701-30080-A0 note Moulding Sub-assy, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 ¥15,800
52701-30080-B0 note Moulding Sub-assy, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 ¥15,800
52701-30080-B1 note Moulding Sub-assy, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥15,800
52701-30080-B1 note Moulding Sub-assy, Front Bumper
2023-11 → 2025-06 ended
AZSH32 G ¥15,800
52701-30080-B1 note Moulding Sub-assy, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥15,800
52701-30080-B2 note Moulding Sub-assy, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥15,800
52701-30080-B2 note Moulding Sub-assy, Front Bumper
2023-11 → 2025-06 ended
AZSH32 G ¥15,800
52701-30080-B2 note Moulding Sub-assy, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥15,800
52701-30080-C0 note Moulding Sub-assy, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 ¥15,800
52701-30080-E0 note Moulding Sub-assy, Front Bumper
2023-11 → 2025-06 ended
AZSH32,KZSM30 ¥15,800
52712 — Moulding, Front Bumper Side, RH
52712-30230 Moulding, Front Bumper Side, RH
2023-11 → —
AZSH32,KZSM30 ¥1,580
52712B — Clip, Front Bumper Moulding
90467-05170 Clip, Front Bumper Moulding
2023-11 → —
AZSH32,KZSM30 ¥80
52713A — Moulding, Front Bumper Side, LH
52713-30250 Moulding, Front Bumper Side, LH
2023-11 → —
AZSH32,KZSM30 ¥1,580
53102A — Grille Sub-assy, Radiator, Lwr
53102-30580 note Grille Sub-assy, Radiator, Lwr
2023-11 → —
AZSH32,KZSM30 ¥40,200
53121H — Moulding, Radiator Grille, NO.1
53121-30370 note Moulding, Radiator Grille, NO.1
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥4,600
53121-30370 note Moulding, Radiator Grille, NO.1
2023-11 → —
AZSH32,KZSM30 Z ¥4,600
53121-30390 Moulding, Radiator Grille, NO.1
2023-11 → —
AZSH32,KZSM30 ¥3,070
53123D — Moulding, Radiator Grille, Lower
53122-30260 Moulding, Radiator Grille, Lower
2023-11 → —
AZSH32,KZSM30 ¥3,070
53122-30270 note Moulding, Radiator Grille, Lower
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥4,600
53122-30270 note Moulding, Radiator Grille, Lower
2023-11 → —
AZSH32,KZSM30 Z ¥4,600
53123G — Moulding, Radiator Grille Side, RH
53123-30170 note Moulding, Radiator Grille Side, RH
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥3,530
53123-30170 note Moulding, Radiator Grille Side, RH
2023-11 → —
AZSH32,KZSM30 Z ¥3,530
53123-30200 Moulding, Radiator Grille Side, RH
2023-11 → —
AZSH32,KZSM30 ¥1,780
53124F — Moulding, Radiator Grille Side, LH
53124-30160 note Moulding, Radiator Grille Side, LH
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥3,530
53124-30160 note Moulding, Radiator Grille Side, LH
2023-11 → —
AZSH32,KZSM30 Z ¥3,530
53124-30180 Moulding, Radiator Grille Side, LH
2023-11 → —
AZSH32,KZSM30 ¥1,780
53127B — Moulding, Radiator Grille, NO.7
53127-30130 Moulding, Radiator Grille, NO.7
2023-11 → —
AZSH32,KZSM30 ¥1,780
53127-30140 note Moulding, Radiator Grille, NO.7
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥2,680
53127-30140 note Moulding, Radiator Grille, NO.7
2023-11 → —
AZSH32,KZSM30 Z ¥2,680
53128C — Moulding, Radiator Grille, NO.8
53128-30160 Moulding, Radiator Grille, NO.8
2023-11 → —
AZSH32,KZSM30 ¥1,780
53128-30170 note Moulding, Radiator Grille, NO.8
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z ¥2,680
53128-30170 note Moulding, Radiator Grille, NO.8
2023-11 → —
AZSH32,KZSM30 Z ¥2,680
53285J — Cover, Front Bumper Arm Hole, RH
53285-30180 note Cover, Front Bumper Arm Hole, RH
2023-11 → —
AZSH32,KZSM30 ¥880
53879H — Retainer, Front Fender Liner
53879-30090 Retainer, Front Fender Liner
2023-11 → —
AZSH32,KZSM30 ¥270
76851G — Grommet, Screw, NO.1
90189-06237 Grommet, Screw, NO.1
2023-11 → —
AZSH32,KZSM30 ¥100
89C48D — Retainer, Ultrasonic Sensor, Front Corner
89348-30490-A0 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z —
89348-30490-A0 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → —
AZSH32,KZSM30 Z —
89348-30490-A0 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → —
AZSH32 G —
89348-30490-B1 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → —
AZSH32,KZSM30 —
89348-30490-B2 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → —
AZSH32,KZSM30 —
89348-30490-B4 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → —
AZSH32,KZSM30 —
89348-30490-C3 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → 2025-06 ended
AZSH32,KZSM30 Z —
89348-30490-C3 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → —
AZSH32,KZSM30 Z —
89348-30490-C3 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → —
AZSH32 G —
89348-30490-E0 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → —
AZSH32,KZSM30 —
89C48F — Retainer, Ultrasonic Sensor, Front Side
89348-30630-A0 note Retainer, Ultrasonic Sensor, Front Side
2023-11 → —
AZSH32,KZSM30 Z —
89348-30630-B0 note Retainer, Ultrasonic Sensor, Front Side
2023-11 → —
AZSH32,KZSM30 Z —
89348-30630-B1 note Retainer, Ultrasonic Sensor, Front Side
2023-11 → —
AZSH32,KZSM30 Z —
89348-30630-B2 note Retainer, Ultrasonic Sensor, Front Side
2023-11 → —
AZSH32,KZSM30 Z —
89348-30630-C0 note Retainer, Ultrasonic Sensor, Front Side
2023-11 → —
AZSH32,KZSM30 Z —
89348-30630-E0 note Retainer, Ultrasonic Sensor, Front Side
2023-11 → —
AZSH32,KZSM30 Z —
89348-30640-A0 note Retainer, Ultrasonic Sensor, Front Side
2023-11 → —
AZSH32,KZSM30 Z —
89348-30640-B0 note Retainer, Ultrasonic Sensor, Front Side
2023-11 → —
AZSH32,KZSM30 Z —
89348-30640-B1 note Retainer, Ultrasonic Sensor, Front Side
2023-11 → —
AZSH32,KZSM30 Z —
89348-30640-B2 note Retainer, Ultrasonic Sensor, Front Side
2023-11 → —
AZSH32,KZSM30 Z —
89348-30640-C0 note Retainer, Ultrasonic Sensor, Front Side
2023-11 → —
AZSH32,KZSM30 Z —
89348-30640-E0 note Retainer, Ultrasonic Sensor, Front Side
2023-11 → —
AZSH32,KZSM30 Z —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
