Exploded illustration 53904IA 9011908D21 — not listed in this catalogue 5701 — not listed in this catalogue 57103D — CROSSMEMBER SUB-ASSY, FRONT SIDE MEMBER TO DASH PANEL (1 parts) 57159A — REINFORCEMENT, ENGINE UNDER COVER MOUNTING (1 parts) 57401H — MEMBER SUB-ASSY, FLOOR SIDE, INNER RH (1 parts) 57402F — MEMBER SUB-ASSY, FLOOR SIDE, INNER LH (1 parts) 57159A — REINFORCEMENT, ENGINE UNDER COVER MOUNTING (1 parts) 9010510586 — not listed in this catalogue 9011908D21 — not listed in this catalogue 9011908D21 — not listed in this catalogue 1A952 — PROTECTOR, FC STACK, LH (1 parts) 57043 — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH (2 parts) 57023H — BRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH (1 parts) 57013 — BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH (2 parts) 57024C — BRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH (1 parts) 57014B — BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH (2 parts) 57044 — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH (2 parts) 57501A — BRACE SUB-ASSY, FRONT FLOOR, CENTER (2 parts) 57407F — MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 (2 parts) 57405A — MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2 (2 parts) 57609A — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 (1 parts) 57061C — MEMBER SUB-ASSY, UNDER REAR, RH (1 parts) 57062A — MEMBER SUB-ASSY, UNDER REAR, LH (1 parts) 9011906A17 — not listed in this catalogue 9010510586 — not listed in this catalogue 9010510586 — not listed in this catalogue 9011908D20 — not listed in this catalogue 9011908D20 — not listed in this catalogue 9011908D94 — not listed in this catalogue 9011908C49 — not listed in this catalogue 57615G — MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH (1 parts) 57616D — MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH (1 parts) 57601 — MEMBER SUB-ASSY, REAR FLOOR SIDE, RH (1 parts) 57602 — MEMBER SUB-ASSY, REAR FLOOR SIDE, LH (1 parts)

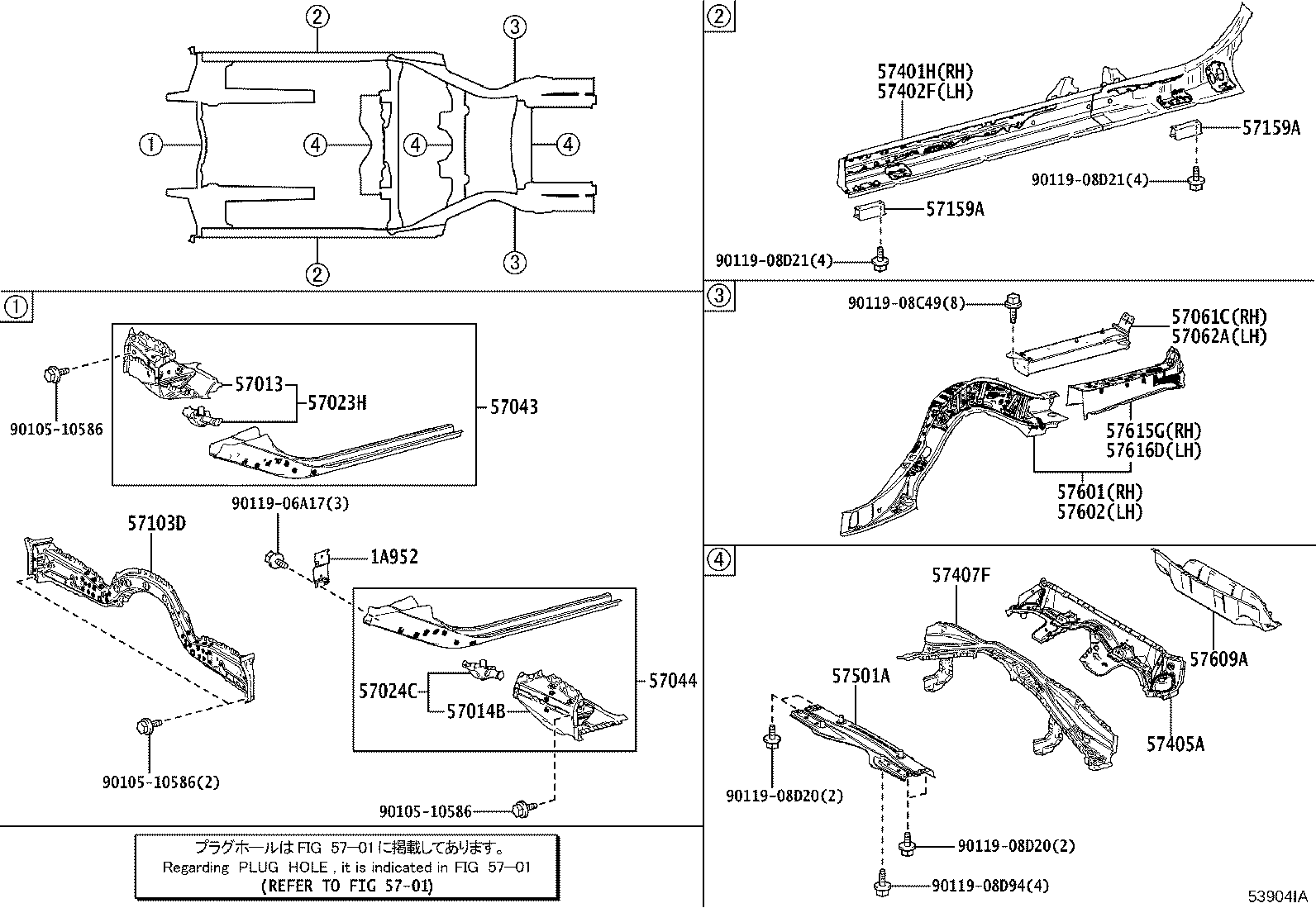

53904IA · 22 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
28 parts on this figure
Part number Description Fitment Price
1A952 — Protector, FC Stack, LH
1A952-77010 Protector, FC Stack, LH
2023-11 → —
MOTOR KZSM30 ¥1,340
57013 — Bracket Sub-assy, Front Side Member, RH
57013-11010 Bracket Sub-assy, Front Side Member, RH
2023-11 → —
AZSH32 ¥7,500
57013-50020 Bracket Sub-assy, Front Side Member, RH
2023-11 → —
KZSM30 ¥7,300
57014B — Bracket Sub-assy, Front Side Member, LH
57014-11010 Bracket Sub-assy, Front Side Member, LH
2023-11 → —
AZSH32 ¥7,500
57014-50020 Bracket Sub-assy, Front Side Member, LH
2023-11 → —
KZSM30 ¥7,300
57023H — Bracket Sub-assy, Body Mounting, NO.2 RH
57023-50020 Bracket Sub-assy, Body Mounting, NO.2 RH
2023-11 → —
KZSM30 ¥9,000
57024C — Bracket Sub-assy, Body Mounting, NO.2 LH
57024-50020 Bracket Sub-assy, Body Mounting, NO.2 LH
2023-11 → —
KZSM30 ¥9,000
57043 — Reinforcement Sub-assy, Front Side Member, Rear RH
57043-11010 Reinforcement Sub-assy, Front Side Member, Rear RH
2023-11 → —
AZSH32 ¥14,200
57043-50090 Reinforcement Sub-assy, Front Side Member, Rear RH
2023-11 → —
KZSM30 ¥16,500
57044 — Reinforcement Sub-assy, Front Side Member, Rear LH
57044-11010 Reinforcement Sub-assy, Front Side Member, Rear LH
2023-11 → —
AZSH32 ¥14,200
57044-50090 Reinforcement Sub-assy, Front Side Member, Rear LH
2023-11 → —
KZSM30 ¥16,600
57061C — Member Sub-assy, Under Rear, RH
57061-30130 Member Sub-assy, Under Rear, RH
2023-11 → —
KZSM30 ¥11,100
57062A — Member Sub-assy, Under Rear, LH
57062-30020 Member Sub-assy, Under Rear, LH
2023-11 → —
KZSM30 ¥10,800
57103D — Crossmember Sub-assy, Front Side Member TO Dash Panel
57103-11010 Crossmember Sub-assy, Front Side Member TO Dash Panel
2023-11 → —
AZSH32,KZSM30 ¥16,400
57159A — Reinforcement, Engine Under Cover Mounting
57159-11011 Reinforcement, Engine Under Cover Mounting
2023-11 → —
AZSH32,KZSM30 ¥2,700
57401H — Member Sub-assy, Floor Side, Inner RH
57401-30220 Member Sub-assy, Floor Side, Inner RH
2023-11 → —
AZSH32,KZSM30 ¥31,600
57402F — Member Sub-assy, Floor Side, Inner LH
57402-30210 Member Sub-assy, Floor Side, Inner LH
2023-11 → —
AZSH32,KZSM30 ¥31,600
57405A — Member Sub-assy, Center Floor Cross, NO.2
57405-11011 Member Sub-assy, Center Floor Cross, NO.2
2023-11 → —
AZSH32 ¥19,700
57405-62020 Member Sub-assy, Center Floor Cross, NO.2
2023-11 → —
KZSM30 ¥18,000
57407F — Member Sub-assy, Center Floor Cross, NO.1
57407-30170 Member Sub-assy, Center Floor Cross, NO.1
2023-11 → —
AZSH32 ¥9,800
57407-62010 Member Sub-assy, Center Floor Cross, NO.1
2023-11 → —
KZSM30 ¥9,800
57501A — Brace Sub-assy, Front Floor, Center
57501-30020 Brace Sub-assy, Front Floor, Center
2023-11 → —
AZSH32 ¥10,900
57501-62010 Brace Sub-assy, Front Floor, Center
2023-11 → —
KZSM30 ¥6,600
57601 — Member Sub-assy, Rear Floor Side, RH
57601-30280 Member Sub-assy, Rear Floor Side, RH
2023-11 → —
AZSH32,KZSM30 ¥37,200
57602 — Member Sub-assy, Rear Floor Side, LH
57602-30340 Member Sub-assy, Rear Floor Side, LH
2023-11 → —
AZSH32,KZSM30 ¥37,200
57609A — Member Sub-assy, Rear Floor Cross, NO.5
57609-62021 Member Sub-assy, Rear Floor Cross, NO.5
2023-11 → —
KZSM30 ¥8,100
57615G — Member Sub-assy, Rear Floor Side, Rear RH
57615-30907 Member Sub-assy, Rear Floor Side, Rear RH
2023-11 → —
AZSH32,KZSM30 ¥8,200
57616D — Member Sub-assy, Rear Floor Side, Rear LH
57616-30908 Member Sub-assy, Rear Floor Side, Rear LH
2023-11 → —
AZSH32,KZSM30 ¥8,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
