Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

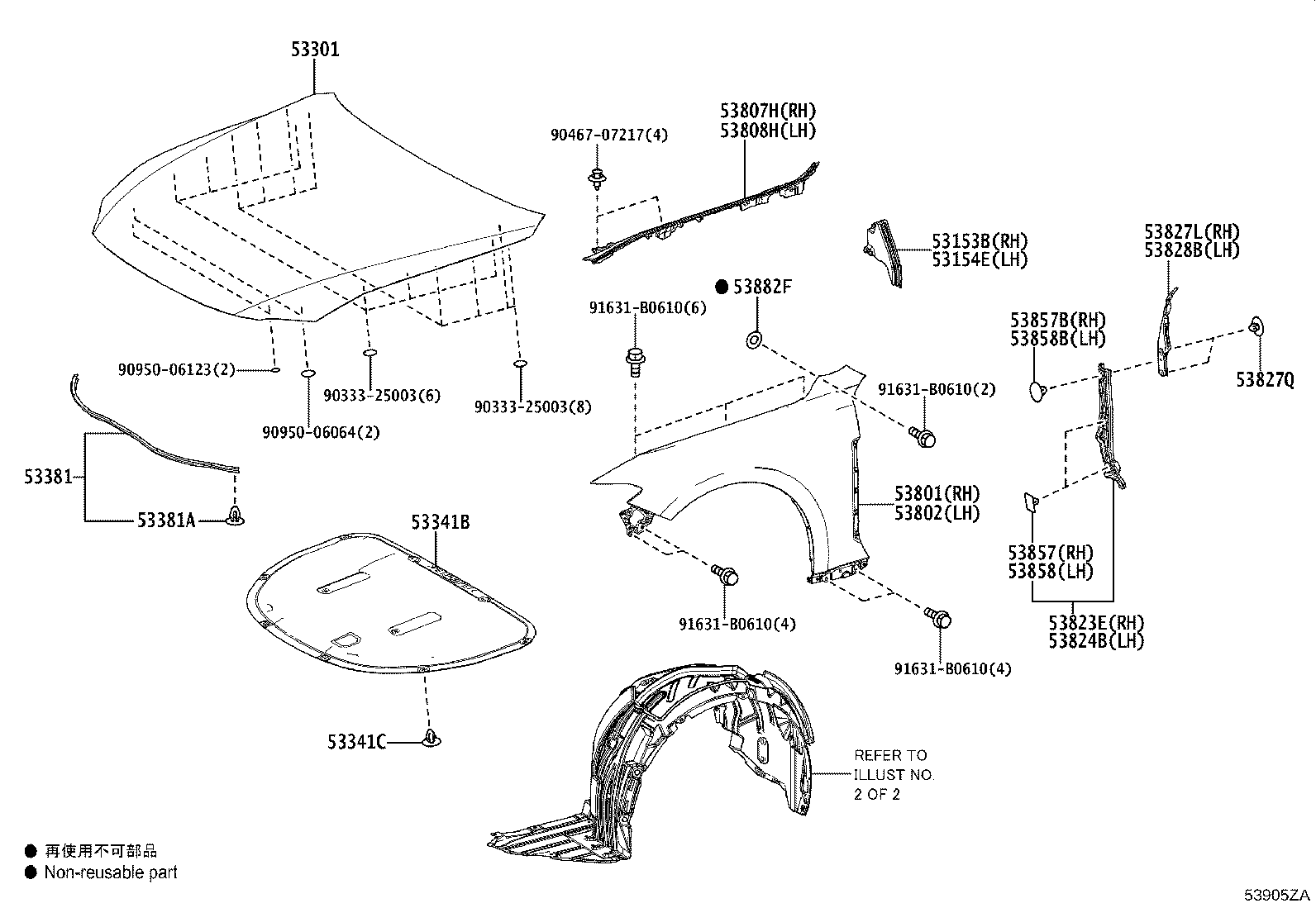

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53153B — Guide, Front Side Air | ||||
| 53153-30370 |
Guide, Front Side Air
2023-11 → —
|
AZSH32,KZSM30 | ¥2,070 | |
| 53154E — Guide, Front Side Air, NO.2 | ||||
| 53154-30360 |
Guide, Front Side Air, NO.2
2023-11 → —
|
AZSH32,KZSM30 | ¥2,070 | |
| 53301 — Hood Sub-assy | ||||
| 53301-30580 |
Hood Sub-assy
2023-11 → —
|
AZSH32,KZSM30 | ¥69,800 | |
| 53341B — Insulator, Hood | ||||
| 53341-30400 |
Insulator, Hood
2023-11 → —
|
AZSH32,KZSM30 | ¥8,200 | |
| 53341C — Clip(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
Clip(FOR HOOD INSULATOR)
2023-11 → —
|
AZSH32,KZSM30 | ¥120 | |
| 53381 — Seal, Hood TO Radiator Support | ||||
| 53381-30280 |
Seal, Hood TO Radiator Support
2023-11 → —
|
AZSH32,KZSM30 | ¥1,080 | |
| 53381A — Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
2023-11 → —
|
AZSH32,KZSM30 | ¥100 | |
| 53801 — Fender Sub-assy, Front RH | ||||
| 53801-30B20 |
Fender Sub-assy, Front RH
2023-11 → —
|
AZSH32,KZSM30 | ¥37,000 | |
| 53802 — Fender Sub-assy, Front LH | ||||
| 53802-30B10 |
Fender Sub-assy, Front LH
2023-11 → —
|
AZSH32,KZSM30 | ¥37,000 | |
| 53807H — Protector Sub-assy, Front Fender, Upper RH | ||||
| 53807-30380 |
Protector Sub-assy, Front Fender, Upper RH
2023-11 → —
|
AZSH32,KZSM30 | ¥3,100 | |
| 53808H — Protector Sub-assy, Front Fender, Upper LH | ||||
| 53808-30160 |
Protector Sub-assy, Front Fender, Upper LH
2023-11 → —
|
AZSH32,KZSM30 | ¥3,100 | |
| 53823E — Protector, Front Side Panel, NO.2 RH | ||||
| 53823-30030 |
Protector, Front Side Panel, NO.2 RH
2023-11 → —
|
AZSH32,KZSM30 | ¥1,820 | |
| 53824B — Protector, Front Side Panel, NO.2 LH | ||||
| 53824-30030 |
Protector, Front Side Panel, NO.2 LH
2023-11 → —
|
AZSH32,KZSM30 | ¥1,820 | |
| 53827L — Protector, Front Fender Side Panel, RH | ||||
| 53827-30120 |
Protector, Front Fender Side Panel, RH
2023-11 → —
|
AZSH32,KZSM30 | ¥1,260 | |
| 53827Q — Clip, Front Fender Side Panel Protector, NO.1 | ||||
| 90467-06205-C0 note |
Clip, Front Fender Side Panel Protector, NO.1
2023-11 → —
|
AZSH32,KZSM30 | ¥60 | |
| 53828B — Protector, Front Fender Side Panel, LH | ||||
| 53828-30130 |
Protector, Front Fender Side Panel, LH
2023-11 → —
|
AZSH32,KZSM30 | ¥1,260 | |
| 53857 — Retainer, Front Wheel Opening Extension, RH | ||||
| 53857-12010 |
Retainer, Front Wheel Opening Extension, RH
2023-11 → —
|
AZSH32,KZSM30 | ¥100 | |
| 53857B — Retainer, Front Wheel Opening Extension, RH | ||||
| 53857-47011 |
Retainer, Front Wheel Opening Extension, RH
2023-11 → —
|
AZSH32,KZSM30 | ¥60 | |
| 53858 — Retainer, Front Wheel Opening Extension, LH | ||||
| 53857-12010 |
Retainer, Front Wheel Opening Extension, LH
2023-11 → —
|
AZSH32,KZSM30 | ¥100 | |
| 53858B — Retainer, Front Wheel Opening Extension, LH | ||||
| 53857-47011 |
Retainer, Front Wheel Opening Extension, LH
2023-11 → —
|
AZSH32,KZSM30 | ¥60 | |
| 53882F — Seal, Front Fender | ||||
| 53882-30030 |
Seal, Front Fender
2023-11 → —
|
AZSH32,KZSM30 | ¥60 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
