Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

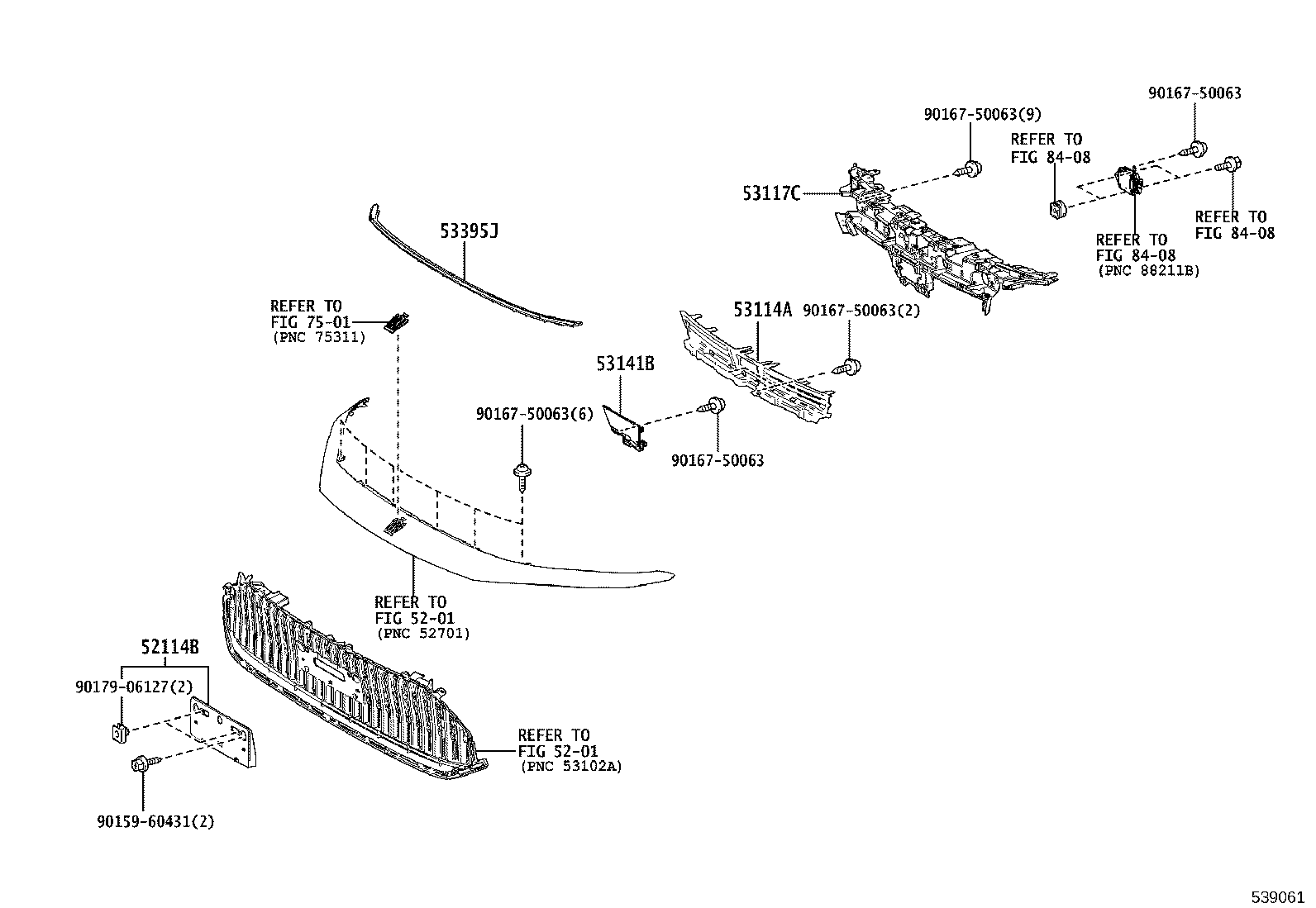

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52114B — Bracket, Front Bumper Extension Mounting | ||||
| 52114-30410 |
Bracket, Front Bumper Extension Mounting
2023-11 → —
|
AZSH32,KZSM30 | ¥2,480 | |
| 53114A — Grille, Radiator, Inner | ||||
| 53101-30B50 |
Grille, Radiator, Inner
2023-11 → —
|
AZSH32,KZSM30 | ¥11,500 | |
| 53117C — Retainer, Radiator Grille, NO.1 | ||||
| 53117-30320 |
Retainer, Radiator Grille, NO.1
2023-11 → —
|
AZSH32,KZSM30 | ¥7,600 | |
| 53141B — Garnish, Radiator Grille, NO.1 | ||||
| 53141-30620 |
Garnish, Radiator Grille, NO.1
2023-11 → —
|
AZSH32,KZSM30 | ¥7,100 | |
| 53395J — Seal, Hood TO Front End Panel | ||||
| 53395-30030 |
Seal, Hood TO Front End Panel
2023-11 → —
|
AZSH32,KZSM30 | ¥1,730 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
