Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

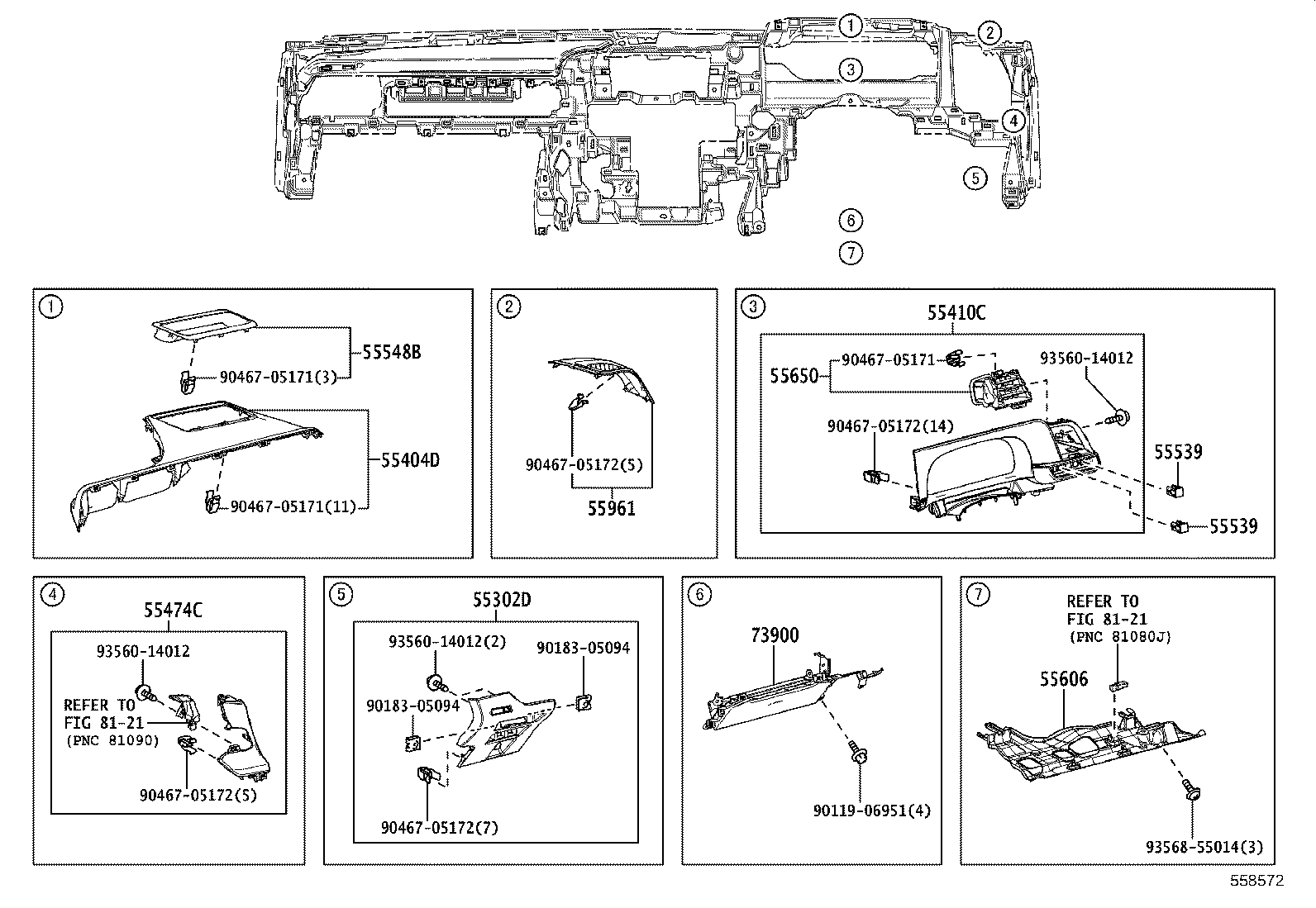

Exploded illustration 558572 73900 — AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1 (2 parts) 9011906951 — not listed in this catalogue 55961 — NOZZLE, SIDE DEFROSTER, NO.1 (1 parts) 9046705172 — not listed in this catalogue 9046705171 — not listed in this catalogue 9018305094 — not listed in this catalogue 9018305094 — not listed in this catalogue 9356014012 — not listed in this catalogue 9356014012 — not listed in this catalogue 9356014012 — not listed in this catalogue 8121 — not listed in this catalogue 8121 — not listed in this catalogue 55404D — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH (1 parts) 55548B — COVER, INSTRUMENT PANEL HOLE (1 parts) 55474C — GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 (2 parts) 55302D — PANEL SUB-ASSY, INSTRUMENT, LOWER, NO.1 (2 parts) 55606 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 (1 parts) 9046705171 — not listed in this catalogue 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (1 parts) 9046705171 — not listed in this catalogue 9046705172 — not listed in this catalogue 55410C — PANEL ASSY, INSTRUMENT CLUSTER FINISH (2 parts) 55539 — COVER, SPARE SWITCH HOLE (2 parts) 55539 — COVER, SPARE SWITCH HOLE (2 parts) 9046705172 — not listed in this catalogue 9046705172 — not listed in this catalogue 9356855014 — not listed in this catalogue
558572 · 11 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
15 parts on this figure
Part number Description Fitment Price
55302D — Panel Sub-assy, Instrument, Lower, NO.1
55302-30260-C0 note Panel Sub-assy, Instrument, Lower, NO.1
2023-11 → —
AZSH32,KZSM30 Z ¥3,890
55302-30260-C0 note Panel Sub-assy, Instrument, Lower, NO.1
2023-11 → —
AZSH32 G ¥3,890
55404D — Panel Sub-assy, Instrument Cluster Finish
55404-30C80 Panel Sub-assy, Instrument Cluster Finish
2023-11 → —
AZSH32,KZSM30 ¥8,000
55410C — Panel Assy, Instrument Cluster Finish
55410-30B00-C0 note Panel Assy, Instrument Cluster Finish
2023-11 → —
AZSH32,KZSM30 Z ¥16,500
55410-30B00-C0 note Panel Assy, Instrument Cluster Finish
2023-11 → —
AZSH32 G ¥16,500
55474C — Garnish, Instrument Cluster Finish Panel, NO.1
55474-30570-E1 note Garnish, Instrument Cluster Finish Panel, NO.1
2023-11 → 2025-03 ended
AZSH32,KZSM30 Z ¥11,100
55474-30570-E1 note Garnish, Instrument Cluster Finish Panel, NO.1
2023-11 → —
AZSH32 G ¥11,100
55539 — Cover, Spare Switch Hole
55539-33170-C0 note Cover, Spare Switch Hole
2023-11 → 2024-07 ended
AZSH32 ¥220
55539-33170-C3 note Cover, Spare Switch Hole
2024-07 → —
AZSH32 ¥220
55548B — Cover, Instrument Panel Hole
55548-30280 Cover, Instrument Panel Hole
2023-11 → —
AZSH32,KZSM30 ¥2,710
55606 — Cover Sub-assy, Instrument Panel Under, NO.1
55606-62030 Cover Sub-assy, Instrument Panel Under, NO.1
2023-11 → —
AZSH32,KZSM30 ¥2,240
55650 — Register Assy, Instrument Panel, NO.1
55650-30530 Register Assy, Instrument Panel, NO.1
2023-11 → —
AZSH32,KZSM30 ¥3,980
55961 — Nozzle, Side Defroster, NO.1
55961-30180 Nozzle, Side Defroster, NO.1
2023-11 → —
AZSH32,KZSM30 ¥2,410
73900 — Airbag Assy, Instrument Panel, Lower NO.1
73900-30120-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2023-11 → —
AZSH32,KZSM30 Z ¥23,600
73900-30120-C0 note Airbag Assy, Instrument Panel, Lower NO.1
2023-11 → —
AZSH32 G ¥23,600
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
