Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

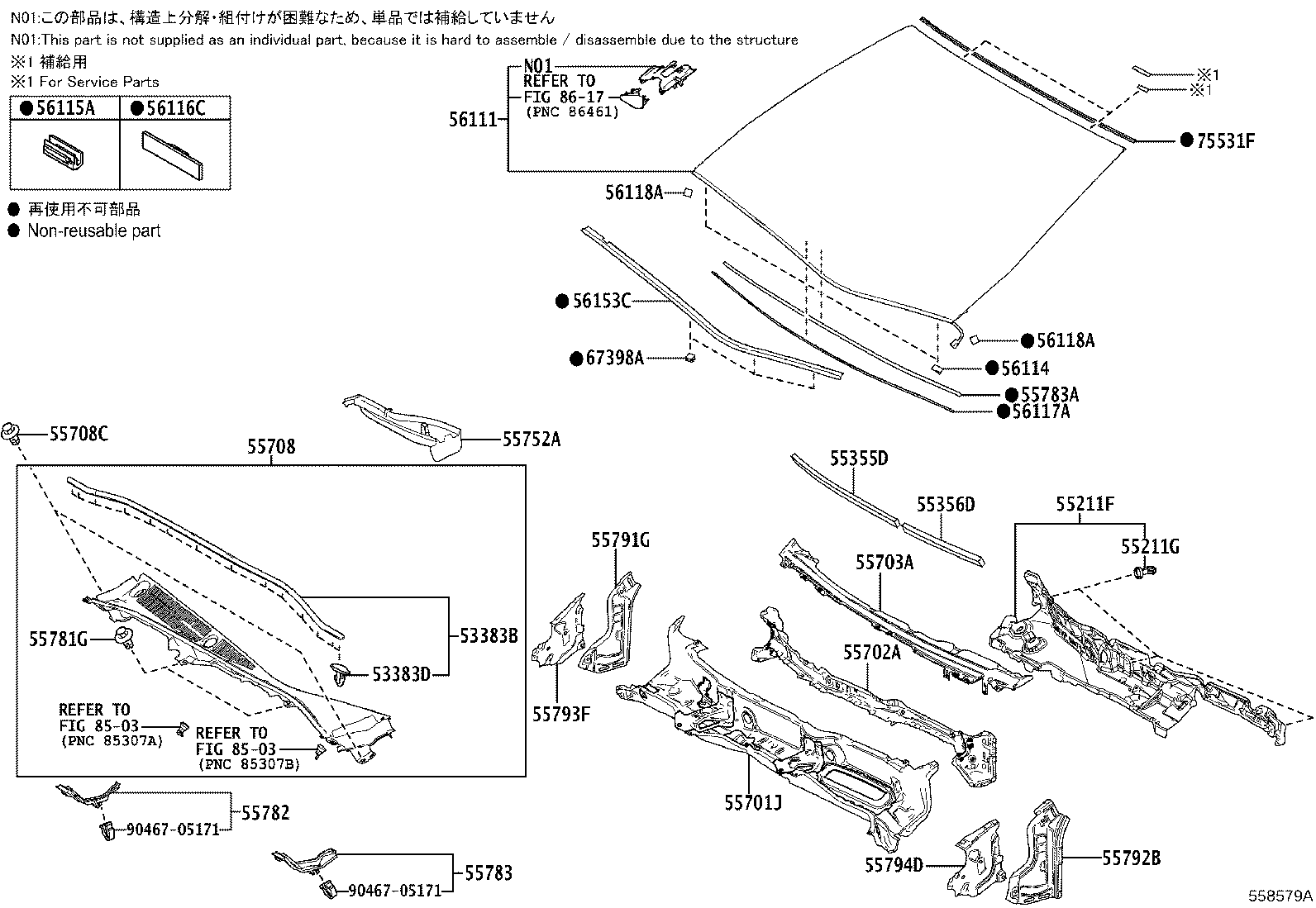

Exploded illustration 558579A 8617 — not listed in this catalogue 8503 — not listed in this catalogue 8503 — not listed in this catalogue 55708 — LOUVER SUB-ASSY, COWL TOP VENTILATOR (1 parts) 55781G — CLIP, COWL TOP VENTILATOR LOUVER (1 parts) 55708C — CLIP, COWL TOP VENTILATOR LOUVER (1 parts) 55211F — COVER, DASH PANEL INSULATOR (1 parts) 53383B — SEAL, HOOD TO COWL TOP (1 parts) 9046705171 — not listed in this catalogue 55783A — PAD, COWL TOP SILENCER (1 parts) 56111 — GLASS, WINDSHIELD (1 parts) 55791G — COVER, COWL REINFORCEMENT, UPPER RH (1 parts) 55701J — PANEL SUB-ASSY, COWL TOP, OUTER (1 parts) 55702A — PANEL SUB-ASSY, COWL TOP, OUTER FRONT (1 parts) 55792B — COVER, COWL REINFORCEMENT, UPPER LH (1 parts) 55703A — PANEL SUB-ASSY, COWL TOP, INNER (1 parts) 55355D — CUSHION, INSTRUMENT PANEL, NO.1 (1 parts) 55356D — CUSHION, INSTRUMENT PANEL, NO.2 (1 parts) 55793F — COVER, COWL REINFORCEMENT, UPPER NO.2 RH (1 parts) 55752A — SHIELD, COWL VENTILATOR SPLASH, LH (1 parts) 56114 — RETAINER, WINDSHIELD GLASS (1 parts) 67398A — GUIDE(FOR WINDOW DEFOGGER WIRE) (1 parts) 56117A — DAM, WINDOW GLASS ADHESIVE (1 parts) 56153C — MOULDING, FRONT WINDOW, INNER CENTER (1 parts) 56118A — DAM, WINDOW GLASS ADHESIVE, NO.2 (1 parts) 75531F — MOULDING, WINDSHIELD, OUTSIDE UPPER (1 parts) 56118A — DAM, WINDOW GLASS ADHESIVE, NO.2 (1 parts) 55794D — COVER, COWL REINFORCEMENT, UPPER NO.2 LH (1 parts) 56115A — STOPPER, WINDSHIELD GLASS, NO.1 (1 parts) 56116C — STOPPER, WINDSHIELD GLASS, NO.2 (1 parts) 55211G — CLIP, DASH PANEL INSULATOR COVER (1 parts) 53383D — CLIP(FOR HOOD TO COWL TOP SEAL) (1 parts) 55782 — PROTECTOR, COWL TOP VENTILATOR LOUVER, RH (1 parts) 9046705171 — not listed in this catalogue 55783 — PROTECTOR, COWL TOP VENTILATOR LOUVER, LH (1 parts)
558579A · 30 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
29 parts on this figure
Part number Description Fitment Price
53383B — Seal, Hood TO Cowl Top
53383-62020 Seal, Hood TO Cowl Top
2023-11 → —
AZSH32,KZSM30 ¥910
53383D — Clip(FOR HOOD TO COWL TOP SEAL)
90467-08108 Clip(FOR HOOD TO COWL TOP SEAL)
2023-11 → —
AZSH32,KZSM30 ¥70
55211F — Cover, Dash Panel Insulator
55211-62041 Cover, Dash Panel Insulator
2023-11 → —
AZSH32,KZSM30 ¥7,300
55211G — Clip, Dash Panel Insulator Cover
90467-11122 Clip, Dash Panel Insulator Cover
2023-11 → —
AZSH32,KZSM30 ¥100
55355D — Cushion, Instrument Panel, NO.1
55355-62030 Cushion, Instrument Panel, NO.1
2023-11 → —
AZSH32,KZSM30 ¥990
55356D — Cushion, Instrument Panel, NO.2
55357-62041 Cushion, Instrument Panel, NO.2
2023-11 → —
AZSH32,KZSM30 ¥780
55701J — Panel Sub-assy, Cowl Top, Outer
55701-62040 Panel Sub-assy, Cowl Top, Outer
2023-11 → —
AZSH32,KZSM30 ¥17,400
55702A — Panel Sub-assy, Cowl Top, Outer Front
55702-62020 Panel Sub-assy, Cowl Top, Outer Front
2023-11 → —
AZSH32,KZSM30 ¥9,800
55703A — Panel Sub-assy, Cowl Top, Inner
55703-62041 Panel Sub-assy, Cowl Top, Inner
2023-11 → —
AZSH32,KZSM30 ¥5,600
55708 — Louver Sub-assy, Cowl Top Ventilator
55708-62110 Louver Sub-assy, Cowl Top Ventilator
2023-11 → —
AZSH32,KZSM30 ¥9,100
55708C — Clip, Cowl Top Ventilator Louver
90467-09242 Clip, Cowl Top Ventilator Louver
2023-11 → —
AZSH32,KZSM30 ¥120
55752A — Shield, Cowl Ventilator Splash, LH
55752-50020 Shield, Cowl Ventilator Splash, LH
2023-11 → —
AZSH32,KZSM30 ¥1,940
55781G — Clip, Cowl Top Ventilator Louver
90467-07224 Clip, Cowl Top Ventilator Louver
2023-11 → —
AZSH32,KZSM30 ¥100
55782 — Protector, Cowl Top Ventilator Louver, RH
55773-62010 Protector, Cowl Top Ventilator Louver, RH
2023-11 → —
AZSH32,KZSM30 ¥840
55783 — Protector, Cowl Top Ventilator Louver, LH
55783-62030 Protector, Cowl Top Ventilator Louver, LH
2023-11 → —
AZSH32,KZSM30 ¥840
55783A — Pad, Cowl Top Silencer
55783-33130 Pad, Cowl Top Silencer
2023-11 → —
AZSH32,KZSM30 ¥610
55791G — Cover, Cowl Reinforcement, Upper RH
55791-62010 Cover, Cowl Reinforcement, Upper RH
2023-11 → —
AZSH32,KZSM30 ¥2,250
55792B — Cover, Cowl Reinforcement, Upper LH
55792-62010 Cover, Cowl Reinforcement, Upper LH
2023-11 → —
AZSH32,KZSM30 ¥2,250
55793F — Cover, Cowl Reinforcement, Upper NO.2 RH
55793-62010 Cover, Cowl Reinforcement, Upper NO.2 RH
2023-11 → —
AZSH32,KZSM30 ¥1,560
55794D — Cover, Cowl Reinforcement, Upper NO.2 LH
55794-62010 Cover, Cowl Reinforcement, Upper NO.2 LH
2023-11 → —
AZSH32,KZSM30 ¥1,560
56111 — Glass, Windshield
56101-62945 Glass, Windshield
2023-11 → —
AZSH32,KZSM30 —
56114 — Retainer, Windshield Glass
56114-30120 Retainer, Windshield Glass
2023-11 → —
AZSH32,KZSM30 ¥260
56115A — Stopper, Windshield Glass, NO.1
56115-30100 Stopper, Windshield Glass, NO.1
2023-11 → —
AZSH32,KZSM30 ¥130
56116C — Stopper, Windshield Glass, NO.2
56116-22050 Stopper, Windshield Glass, NO.2
2023-11 → —
AZSH32,KZSM30 ¥120
56117A — Dam, Window Glass Adhesive
56117-64010 note Dam, Window Glass Adhesive
2023-11 → —
AZSH32,KZSM30 ¥1,480
56118A — Dam, Window Glass Adhesive, NO.2
56118-30140 Dam, Window Glass Adhesive, NO.2
2023-11 → —
AZSH32,KZSM30 ¥90
56153C — Moulding, Front Window, Inner Center
56153-62010 Moulding, Front Window, Inner Center
2023-11 → —
AZSH32,KZSM30 ¥4,530
67398A — Guide(FOR WINDOW DEFOGGER WIRE)
67398-60010 Guide(FOR WINDOW DEFOGGER WIRE)
2023-11 → —
AZSH32,KZSM30 ¥90
75531F — Moulding, Windshield, Outside Upper
75531-62010 Moulding, Windshield, Outside Upper
2023-11 → —
AZSH32,KZSM30 ¥1,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
