Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

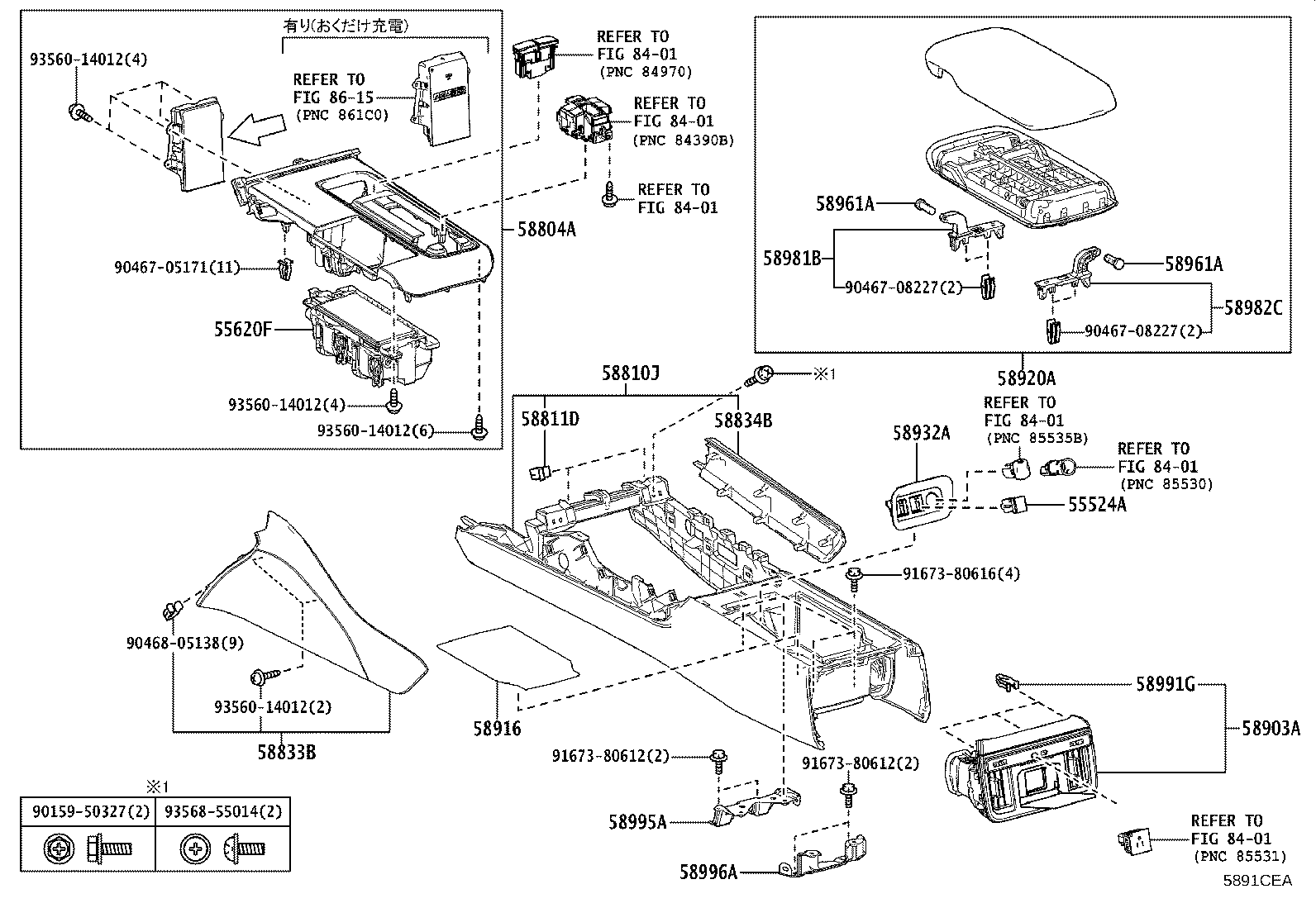

Exploded illustration 5891CEA 58810J — BOX ASSY, CONSOLE (2 parts) 58833B — GARNISH, CONSOLE UPPER PANEL, NO.1 (2 parts) 58995A — BRACKET, CONSOLE BOX MOUNTING, NO.1 (1 parts) 58996A — BRACKET, CONSOLE BOX MOUNTING, NO.2 (1 parts) 58903A — PANEL SUB-ASSY, CONSOLE REAR END (2 parts) 58991G — CLIP (1 parts) 55524A — COVER, SWITCH BASE HOLE (1 parts) 58932A — GARNISH, REAR CONSOLE BOX (1 parts) 58916 — MAT, BOX BOTTOM (1 parts) 8615 — not listed in this catalogue 58804A — PANEL SUB-ASSY, CONSOLE, UPPER (3 parts) 55620F — HOLDER ASSY, CONSOLE BOX CUP (2 parts) 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 9356014012 — not listed in this catalogue 9046805138 — not listed in this catalogue 9015950327 — not listed in this catalogue 9356855014 — not listed in this catalogue 58834B — GARNISH, CONSOLE UPPER PANEL, NO.2 (2 parts) 58811D — CLIP(FOR CONSOLE BOX) (1 parts) 9167380616 — not listed in this catalogue 9167380612 — not listed in this catalogue 9167380612 — not listed in this catalogue 9356014012 — not listed in this catalogue 9046705171 — not listed in this catalogue 9356014012 — not listed in this catalogue 9356014012 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 58920A — ARMREST ASSY, REAR CONSOLE (2 parts) 9046708227 — not listed in this catalogue 58961A — HINGE, CONSOLE COMPARTMENT DOOR MALE (1 parts) 58961A — HINGE, CONSOLE COMPARTMENT DOOR MALE (1 parts) 58982C — RETAINER, CONSOLE MOUNTING, NO.2 (1 parts) 58981B — RETAINER, CONSOLE MOUNTING, NO.1 (1 parts) 9046708227 — not listed in this catalogue
5891CEA · 18 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
25 parts on this figure
Part number Description Fitment Price
55524A — Cover, Switch Base Hole
55524-12010-C0 note Cover, Switch Base Hole
2023-11 → —
AZSH32,KZSM30 ¥310
55620F — Holder Assy, Console Box Cup
55620-30530-E0 note Holder Assy, Console Box Cup
2023-11 → 2025-03 ended
AZSH32,KZSM30 Z ¥20,800
55620-30530-E0 note Holder Assy, Console Box Cup
2023-11 → —
AZSH32 G ¥20,800
58804A — Panel Sub-assy, Console, Upper
58804-30G40-E1 note Panel Sub-assy, Console, Upper
2023-11 → 2025-03 ended
AZSH32,KZSM30 Z ¥62,200
58804-30G40-E1 note Panel Sub-assy, Console, Upper
2023-11 → 2025-06 ended
AZSH32 G ¥62,200
58804-30G50-E1 note Panel Sub-assy, Console, Upper
2023-11 → 2025-06 ended
AZSH32 G ¥36,400
58810J — Box Assy, Console
58810-30E30-C1 note Box Assy, Console
2023-11 → —
AZSH32,KZSM30 Z ¥33,200
58810-30E30-C1 note Box Assy, Console
2023-11 → —
AZSH32 G ¥33,200
58811D — Clip(FOR CONSOLE BOX)
90467-05172 Clip(FOR CONSOLE BOX)
2023-11 → —
AZSH32,KZSM30 ¥60
58833B — Garnish, Console Upper Panel, NO.1
58833-30260-C1 note Garnish, Console Upper Panel, NO.1
2023-11 → —
AZSH32,KZSM30 Z ¥11,700
58833-30260-C1 note Garnish, Console Upper Panel, NO.1
2023-11 → —
AZSH32 G ¥11,700
58834B — Garnish, Console Upper Panel, NO.2
58834-30190-C0 note Garnish, Console Upper Panel, NO.2
2023-11 → —
AZSH32 G ¥6,700
58834-30190-C0 note Garnish, Console Upper Panel, NO.2
2023-11 → —
AZSH32,KZSM30 Z ¥6,700
58903A — Panel Sub-assy, Console Rear End
58903-30490-E1 note Panel Sub-assy, Console Rear End
2023-11 → 2025-03 ended
AZSH32,KZSM30 Z ¥18,800
58903-30490-E1 note Panel Sub-assy, Console Rear End
2023-11 → —
AZSH32 G ¥18,800
58916 — Mat, Box Bottom
58916-30240 Mat, Box Bottom
2023-11 → —
AZSH32,KZSM30 ¥620
58920A — Armrest Assy, Rear Console
58920-30380-C1 note Armrest Assy, Rear Console
2023-11 → —
AZSH32,KZSM30 ¥22,200
58920-30380-E0 note Armrest Assy, Rear Console
2023-11 → —
AZSH32,KZSM30 Z ¥22,200
58932A — Garnish, Rear Console Box
58932-30090 Garnish, Rear Console Box
2023-11 → —
AZSH32,KZSM30 ¥1,090
58961A — Hinge, Console Compartment Door Male
58961-30150 Hinge, Console Compartment Door Male
2023-11 → —
AZSH32,KZSM30 ¥80
58981B — Retainer, Console Mounting, NO.1
58981-30020 Retainer, Console Mounting, NO.1
2023-11 → —
AZSH32,KZSM30 ¥970
58982C — Retainer, Console Mounting, NO.2
58982-30110 Retainer, Console Mounting, NO.2
2023-11 → —
AZSH32,KZSM30 ¥970
58991G — Clip
90467-05172 Clip
2023-11 → —
AZSH32,KZSM30 ¥60
58995A — Bracket, Console Box Mounting, NO.1
58995-30270 Bracket, Console Box Mounting, NO.1
2023-11 → —
AZSH32,KZSM30 ¥820
58996A — Bracket, Console Box Mounting, NO.2
58996-30190 Bracket, Console Box Mounting, NO.2
2023-11 → —
AZSH32,KZSM30 ¥820
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
