Toyota Crown Sedan
2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan
Supported model
Data version 2023-11

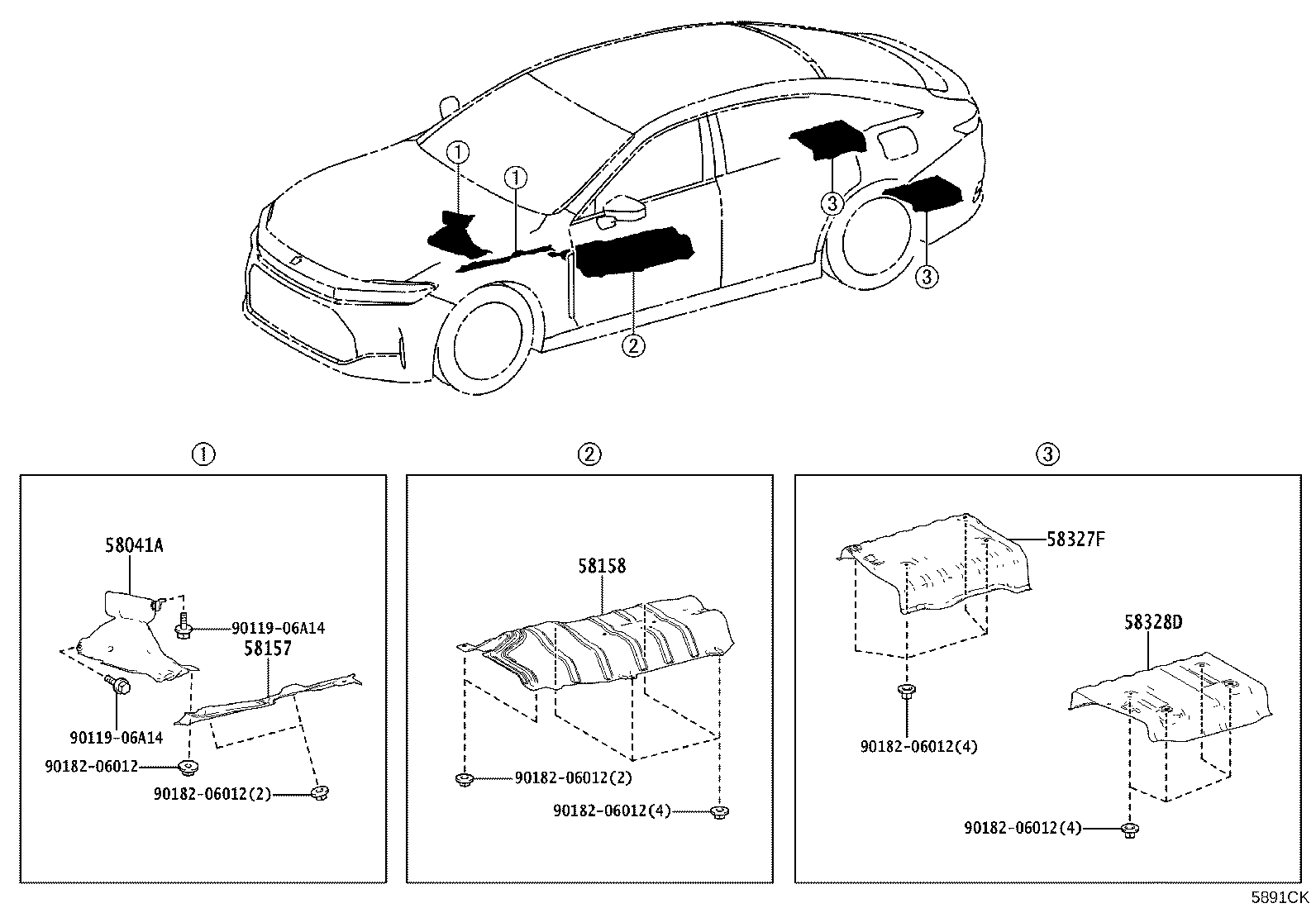

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58041A — Insulator Sub-assy, Front Floor Heat, NO.1 | ||||
| 58041-30100 |
Insulator Sub-assy, Front Floor Heat, NO.1
2023-11 → —
|
AZSH32 | ¥3,690 | |
| 58157 — Insulator, Front Floor Heat, NO.5 | ||||
| 58157-30100 |
Insulator, Front Floor Heat, NO.5
2023-11 → —
|
AZSH32 | ¥2,030 | |
| 58158 — Insulator, Front Floor Heat, NO.6 | ||||
| 58158-30130 |
Insulator, Front Floor Heat, NO.6
2023-11 → —
|
AZSH32 | ¥4,870 | |
| 58327F — Insulator, Main Muffler Heat, RH | ||||
| 58327-30130 |
Insulator, Main Muffler Heat, RH
2023-11 → —
|
AZSH32 | ¥2,630 | |
| 58328D — Insulator, Main Muffler Heat, LH | ||||
| 58328-30120 |
Insulator, Main Muffler Heat, LH
2023-11 → —
|
AZSH32 | ¥2,630 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
