Toyota Crown Sedan

2023-11 → present · chassis AZSH32,KZSM30 · catalogue 33B110 · Japan

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

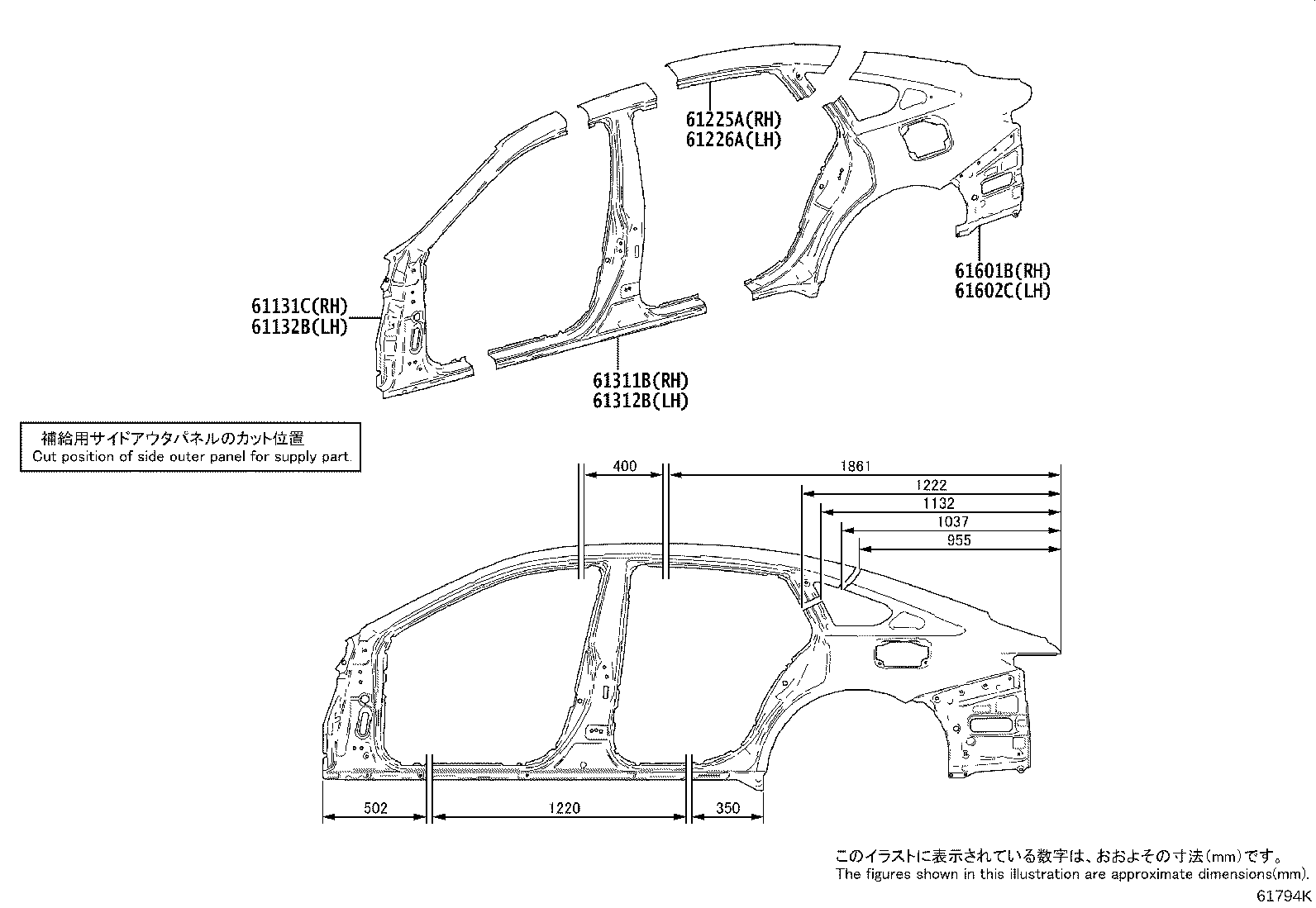

Exploded illustration 61794K 61131C — PILLAR, FRONT BODY, OUTER RH (1 parts) 61132B — PILLAR, FRONT BODY, OUTER LH (1 parts) 61311B — PILLAR, CENTER BODY, OUTER RH (1 parts) 61312B — PILLAR, CENTER BODY, OUTER LH (1 parts) 61601B — PANEL SUB-ASSY, QUARTER, RH (1 parts) 61602C — PANEL SUB-ASSY, QUARTER, LH (1 parts) 61225A — RAIL, ROOF SIDE OUTER UPPER NO.1, RH (1 parts) 61226A — RAIL, ROOF SIDE OUTER UPPER NO.1, LH (1 parts)
61794K · 8 callouts Full size ↗
8 parts on this figure
Part number Description Fitment Price
61131C — Pillar, Front Body, Outer RH
61131-30370 Pillar, Front Body, Outer RH
2023-11 → —
AZSH32,KZSM30 ¥14,100
61132B — Pillar, Front Body, Outer LH
61132-30390 Pillar, Front Body, Outer LH
2023-11 → —
AZSH32,KZSM30 ¥14,100
61225A — Rail, Roof Side Outer Upper NO.1, RH
61225-30090 Rail, Roof Side Outer Upper NO.1, RH
2023-11 → —
AZSH32,KZSM30 ¥4,660
61226A — Rail, Roof Side Outer Upper NO.1, LH
61226-30090 Rail, Roof Side Outer Upper NO.1, LH
2023-11 → —
AZSH32,KZSM30 ¥4,660
61311B — Pillar, Center Body, Outer RH
61311-30350 Pillar, Center Body, Outer RH
2023-11 → —
AZSH32,KZSM30 ¥13,400
61312B — Pillar, Center Body, Outer LH
61312-30450 Pillar, Center Body, Outer LH
2023-11 → —
AZSH32,KZSM30 ¥13,400
61601B — Panel Sub-assy, Quarter, RH
61601-30B00 Panel Sub-assy, Quarter, RH
2023-11 → —
AZSH32,KZSM30 ¥51,000
61602C — Panel Sub-assy, Quarter, LH
61602-30A80 Panel Sub-assy, Quarter, LH
2023-11 → —
AZSH32,KZSM30 ¥51,000
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
